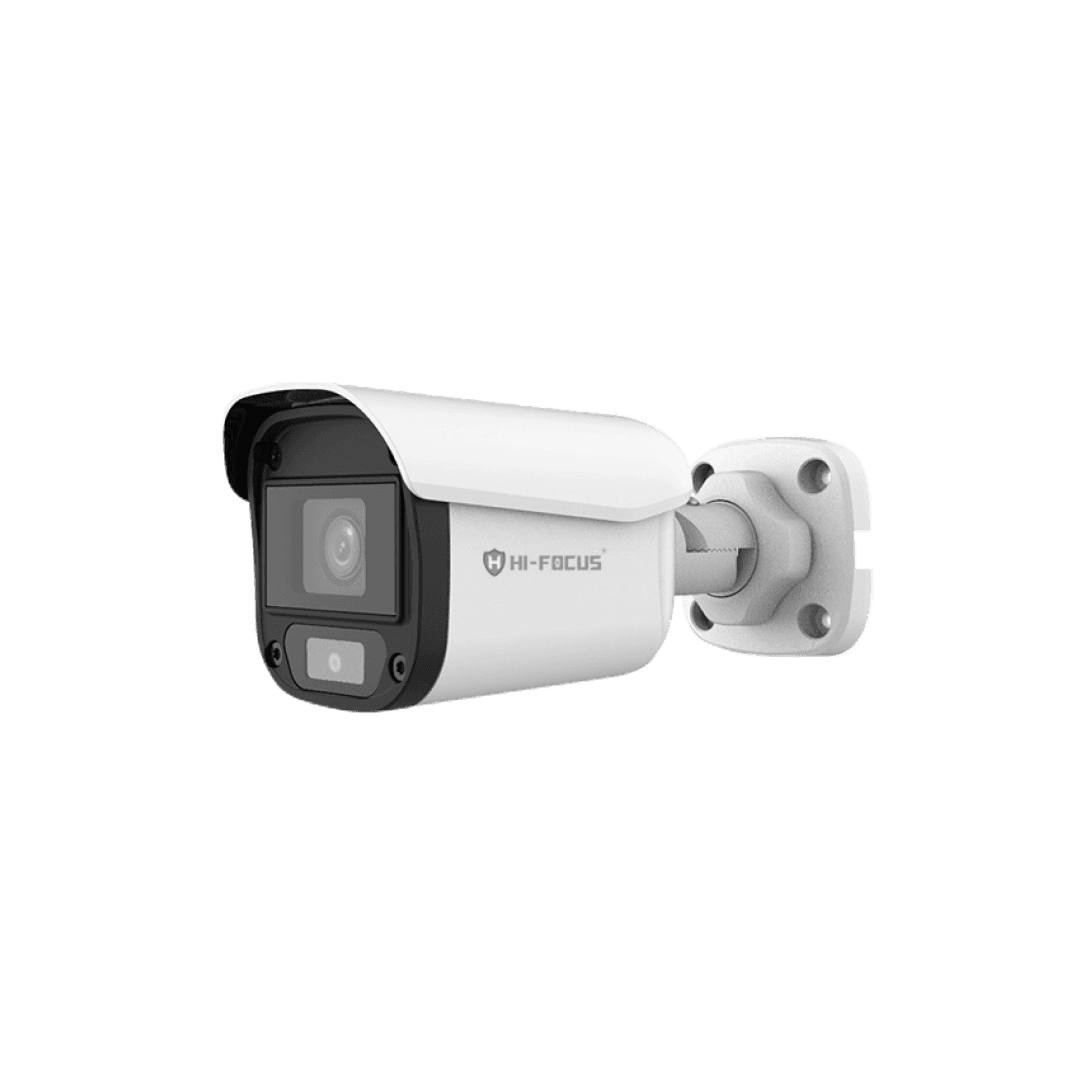

2MP IP BULLET CAMERA
HC-lPC-TQA4312L-E0400
Product Features
- High quality image with 2MP, 1/2.8"CMOS sensor
- 2MP (1920x1080) @25fps; 720P (1280x720) @25fps
- Smart H.265, H.265, H.264
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- DC12V or PoE (IEEE 802.3af) power supply
- Ingress Protection IP67
Specifications
- CAMERA
- VIDEO
- SMART
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Resolution
2MP
Sensor
1/2.8" CMOS
Min. Illumination
Colour: 0.02 lux (F2.1, AGC ON) O lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
Shutter Speed
Auto/Manual, INI/100000s
Adjustment Angle
Pan: 360% Tilt: Rotate: 360
Lens
4.0mm@F2.O
Iris
Fixed
Angle of view(H)
83.7°
S/N
>52dB
WDR
DWDR
Noise Reduction
2D/3D DNR
IR Range
Up to 30m (98ft)
Wavelength
850nm
IR On/Off Control
Auto/Manual
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Aut02
Defog
Digital Defog
VIDEO
Video Compression
Smart H.265, H.265, H.264
H.264 code profile
Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream: 2MP (1920x1080), Max 25fps; 720P (1280x720), Max 25fps Sub stream: Dl (720x576), Max 25fps; 640x360, Max 25fps; 2ClF (704x288), Max 25fps; CIF (352x288), Max 25fps 128Kbps - 6144kbps
Video Bit Rate
128Kbps - 6144kbps
Video stream
Dual streams
HLC
Supported
BLC
Supported
Smart IR
Supported
OSD
Up to 4 OSDs
ROI
Up to 8 areas
Privacy Mask
Up to 4 areas
SMART
Intelligent Analysis
Basic Detection: Motion Detection, Audio Detection
General Function
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
NETWORK
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, Qos, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile T), API
INTERFACE
Network
1 RJ45 IOM/IOOM Base-TX Ethernet
Built-in Mic
Supported
GENERAL
Power
12 V POE (IEEE802.3 af) Power consumption: Max 5.0W
Dimensions (L x W x H)
161 x 62 x 63mm (6.3" x 2.5" x 2.5")
Working Environment
(-220F 1400F), Humidity: s95% RH (non-condensing)
Weight
0.21kg (0.461b)
Material
Graphene + Plastic
Surge Protection
4KV
Ingress protection
IP67
