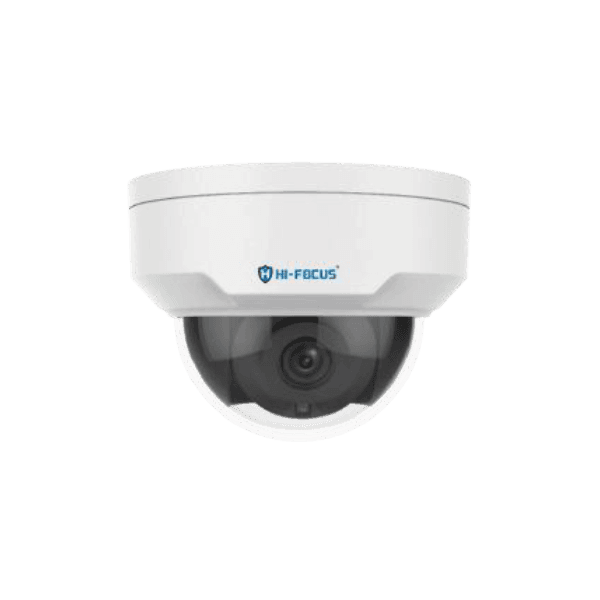

2MP IP DOME CAMERA
HC-IPC-D4212DU-VF-X
Product Features
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Smart H.265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- Customized OSD
- ONVIF Conformance
- 3-Axis
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide input voltage range of ±25%
- IP67 Ingress Protection
- IK10 vandal resistant
Specifications
- CAMERA
- VIDEO
- SMART
- AUDIO
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.8", 2.0megapixel, Progressive Scan, CMOS
Lens
3.6 mm @F1.6
Iris
Fixed
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
IR On/Off Control
Auto/Manual
Minimum Illumination
Colour: 0.003 Lux (F2.0, AGC ON)
IR
Up to 30m(98ft) IR range
WDR
120dB
S/N
>52dB
Noise Reduction
2D/3D DNR
Digital zoom
16x
Angle of View (H)
112.7°
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Profile 1: 2MP (1920x1080), Max 30fps; Profile 2: 720P (1280x720), Max 30fps; Profile 3: D1 (720x576), Max 30fps
Video Bit Rate
128 Kbps~16 Mbps
Video Stream
Triple streams
9:16 Corridor Mode
Supported
OSD
Up to 4 OSDs
ROI
Up to 4 areas
Motion Detection
Up to 4 areas
Privacy Mask
Up to 4 areas
White balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR
Support
HLC
Support
BLC
Support
Defog
Digital Defog
SMART
Intelligence Analysis
Line Crossing detection, Intrusion detection
Basic Detection
Motion detection, Tampering alarm
AUDIO
Audio Compression
G.711
Suppression
Supported
Sampling Rate
8 KHZ
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS (NFS)
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
INTERFACE
Network
1 x RJ45 10M/100M Base-TX Ethernet
Audio I/O
Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p]
GENERAL
Power
DC12V ±25%, PoE (IEEE 802.3af) Power consumption: Max 4 W
Working Environment
-35℃~60℃ (-31°F ~ 140°F) Humidity: ≤95% RH (non-condensing)
Surge Protection
4KV
Ingress Protection
IP67
Vandal Resistant
IK10
