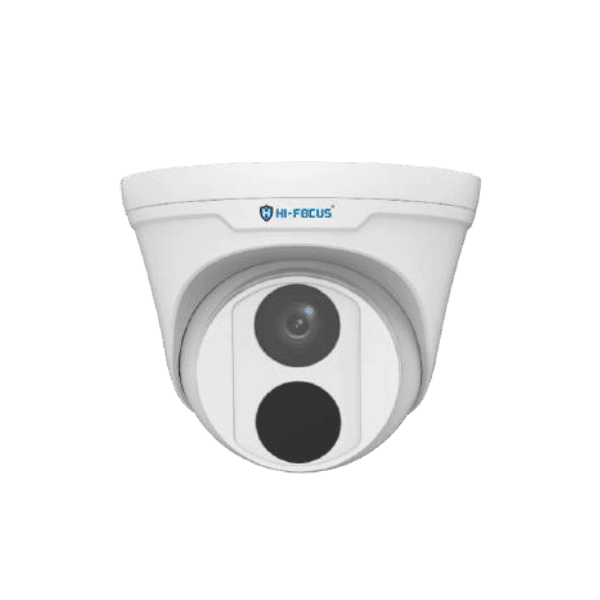

2MP IP DOME CAMERA
HC-IPC-D4212W-VF
Product Features
- High quality image with 2MP, 1/2.8"CMOS senso
- 2MP (1920x1080)@30/25fps; 720P (1280x720)@30/25fps
- Smart H.265, H.265, H.264
- Smart IR, up to 30m (98ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- Support PoE power supply
- 3-Axis
- IP67 Ingress Protection
Specifications
- CAMERA
- VIDEO
- SMART
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Sensor
1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens
3.6mm@F2.0
IRIS
Fixed IRIS
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
Minimum Illumination
Colour: 0.01Lux (F2.0, AGC ON); 0Lux with IR on
IR
Up to 30m (98ft) IR rang
S/N
> 52dB
WDR
DWDR
Noise Reduction
2D/3D DNR
Defog
Digital Defog
VIDEO
Video Compression
Smart H.265, H.265, H.264
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Profile1: 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps Profile2: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF (704x288), Max 30fps; CIF (352x288), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
OSD
Up to 4 OSDs
HLC
Supported
BLC
Supported
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
ROI
Supported
Privacy Mask
Up to 4 areas
SMART
Basic Detection
Motion detection
NETWORK
Protocols
IPv4, IPv6, FTP, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, SMTP, NTP, UPnP, HTTP, HTTPS
Compatible Integration
ONVIF (Profile S), API
INTERFACE
Network
10/100M Base-TX Ethernet
GENERAL
Power
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0 W
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F) Humidity ≤ 95% RH (non-condensing)
Surge Protection
4KV
Ingress Protection
IP67
