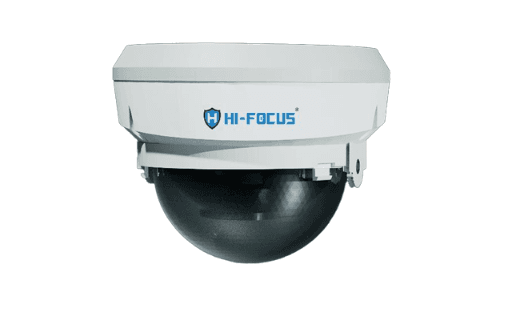

2MP Vandal Dome Fixed Network Camera
HIPC-D3512-KVDL-I2
Product Features
- 2MP, 1920x1080 @30fps
- ≥ Smart H.265+/H.265/H.264B/H.264M/H.264H
- ≥ Color:0.001Lux@(F1.4,AGC ON),B/W:0Lux with IR
- ≥ IR range up to 30m, 15m White light distance
- ≥ Built-in Mic
- ≥ DC12V±25%, Max. 6.5W, PoE: IEEE 802.3af, Max. 7W
- ≥ IP67 Ingress Protection & IK10 Vandal Resistant
Specifications
- Featers
- LENS
- ILLUMINATOR
- COMPRESSION
- IMAGE
- FUNCTIONS
- INTERFACE
- GENERAL
Featers
Image Sensor
1/2.7" CMOS
Min. Illumination
Color: 0.001Lux @ (F1.4, AGC ON), B/W: 0Lux with IR
Shutter Time
1s ~ 1/100000s
Day & Night
IR-cut filter with auto switch (ICR)
WDR
120dB
Aperture Range
F1.6
Aperture Type
Fixed
Angle Adjustment
0~360° (Pan), 0~80° (Tilt), 0~360° (Rotation)
LENS
Type
Fixed focal lens
Focal Length
2.8mm
Lens Mount
M12
Close Focus Distance
0.2m
Day/Night Mode
Auto(inside)/Color/BW (Black and White)/Schedule
ILLUMINATOR
IR LEDs
2
IR Distance
IR Distance
Wavelength
850nm
White LEDs
2
White light Distance
15m
COMPRESSION
Video Compression
Smart H.265/H.265/H.264B/H.264M/H.264H
Video Bit Rate
32k~16Mbps
Main Stream Bit Rate
2M
Audio Compression
G.711A/G.711U/ADPCM_D
Audio Sampling Rate
8kHz/32kHz/48kHz
Max. Resolution
1920x1080 @30fps
Main Stream
PAL 25 Fps: 1920 x 1080 @25fps, 1280 x 720 NTSC 30 Fps: 1920 x 1080 @30fps, 1280 x 720
Sub Stream
PAL 25 Fps: 1280x 720, 4CIF(704x 576) NTSC 30 Fps: 1280x 720, 4CIF(704x 576)
Third Stream
PAL 25 Fps: 1280 x720, 4CIF(704x 576) NTSC 30 Fps: 2CIF(704x 288), CIF( 352x 288), 640x 360, 4CIF( 704x 576)
Fourth Stream
PAL 25 Fps: 2CIF(704x 288), CIF ( 352x 288), 640x 360, 4CIF( 704x 576) NTSC 25 Fps: 2CIF(704x 288), CIF ( 352x 288), 640x 360, 4CIF ( 704x 576) @30fps (Optional)
3D DNR
Supported
HLC
Supported
BLC
Supported
AGC
Supported
Defog
Supported
Privacy Mask
4 areas
ROI
8 areas
OSD Region
Overlay of additional characters in 1 region, 1 line, max 48 characters
OSD Size
16×16 / 32×32 / 48×48
Remote Connection
≤2
Web Browser Support
IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
User/Host
8 users, Level 4: Admin / Browse / Browse + Control / Browse + Control + Set
FUNCTIONS
Smart Anaylsis
Tripwire, Perimeter, Motion Detection, Mask Alarm, IP Address Conflict, Network Disconnection, Trigger Warmlight, Trigger Capture
Rules of Behavior Analyse In 1 Scene
2
White Balance
Auto/Semi-Auto/Manual/Sunshine/Nature Light/ Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
INTERFACE
Built-in Mic
Supported
Audio out
Supported(Optional)
Network Interface
1×RJ-45 (10/100 Base-T)
SD Card
Built-in Micro SD card slot upto 512GB
Protocols
RTP, RTSP, RTCP, HTTP, HTTPS, TCP, UDP, UPnP, ICMP, IGMP, DHCP, DNS, DDNS, Easy DDNS, ARP, SMTP, SNMP, NTP, TLS v1.2, PPPoE, QoS, 802.1x, IPv4, IPv6, SSH, Unicast, FTP
ONVIF Compatibility
ONVIF (Profile S/T), SDK, CGI
GENERAL
Power Supply
DC12V±25%, Max. 6.5W
Surge protection
Surge 4000V
Lightning proof
ESD 6000V
Ingress Protection
IP67 & IK10
Operating Temperature
-30°C~60°C(-22°F~140°F)
Operating Humidity
≤95%RH
Storage Temperature
-30°C~60°C(-22°F~140°F)
Storage Humidity
10%~95%RH(non-condensing)
Gross Weigh
0.35Kg
Net Weight
0.25Kg
Package Dimensions
140(L)140(W)120(H)mm
