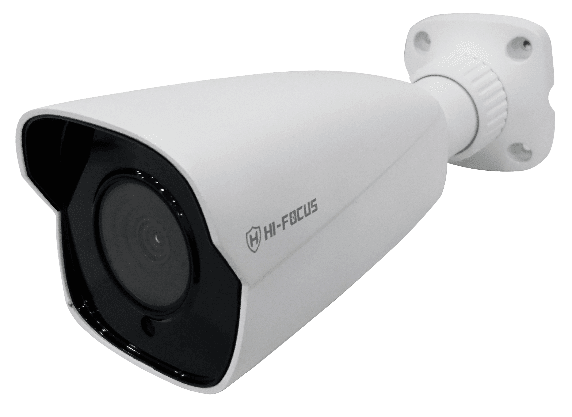

4MP BULLET MOTORIZED VARIFOCAL NETWORK CAMERA
HC-IPC-T4214DVZ-VF
Product Features
- Day/night functionality
- Smart IR , up to 100 m (328 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Smart H.265, H.265+, H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI(Region of interest)
- Customized OSD
- ONVIF Profile S, G Conformance
- Wide voltage range of ±25%
- IP67, IK10
Specifications
- CAMERA
- VIDEO
- SMART
- AUDIO
- STORAGE
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Sensor
1/2.8", progressive scan,4.0 megapixel, CMOS
Lens
Lens
Angle of view(H)
96.4°~27.0°
Angle of view(V)
54.4~13.7°
Shutter Speed
Auto/Manual, 1/30~1/100000 s
Day/Night
IR-cut filter with auto switch (ICR)
Min.Illumination
Colour: 0.001 Lux (F1.4, AGC ON) 0 Lux with IR
IR
100 m
S/N
> 52dB
WDR
120dB
AWB( Auto white balance)
Auto/Natural/Street Lamp/Outdoor/Manual
Digital zoom
16x
Noise Reduction
2D/3D DNR
Defog
Digital Defog
VIDEO
Video Compression
Smart H.265, H.265+,H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream:4MP (2592×1520): Max. 30 fps，3MP (2048×1520): Max. 30 fps; 2MP (1920×1080): Max. 60/30 fps; Sub Stream: 1MP(720P) Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps
Video Bit Rate
128Kbps-16mbps
HLC
Supported
BLC
Supported
OSD
Up to 8 OSDs
Motion Detection
Up to 4 areas
ROI
Up to 4 areas
Privacy Mask
Up to 4 areas
SMART
Image Settings
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Intelligent Analysis
Object abandoned/missing detection, region entrance/exiting/intrusion Detection (human/vehicle classification), line crossing detection (human/vehicle classification), video tampering detection, scene change detection, face detection, face capture, crowd density detection, heat map, human/vehicle counting, human tracking
General Function
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, User Authentication, heartbeat, Video masking
AUDIO
Audio Compression
G.711
Two-way audio
Supported
Suppression
Supported
Sampling Rate
8 KHZ
STORAGE
Edge Storage
Micro SD, up to 128 GB / 256 GB (Optional)
Network Storage
NAS(Network Attached Storage) Local PC for instant recording
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, Bonjour
Compatible Integration
ONVIF(Profile S, Profile G, Profile T), API
INTERFACE
Audio I/O
Audio cable Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O
1/ 1
Network
1 RJ45 10M/100MBase-TX Ethernet
GENERAL
Power
12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 10 W
Working Environment
-30°C to 60°C (-22°F to 140°F), Humidity ≤ 95% RH (non-condensing)
Online User
128 User
Ingress Protection
IP67
Vandal Resistance
IK10
