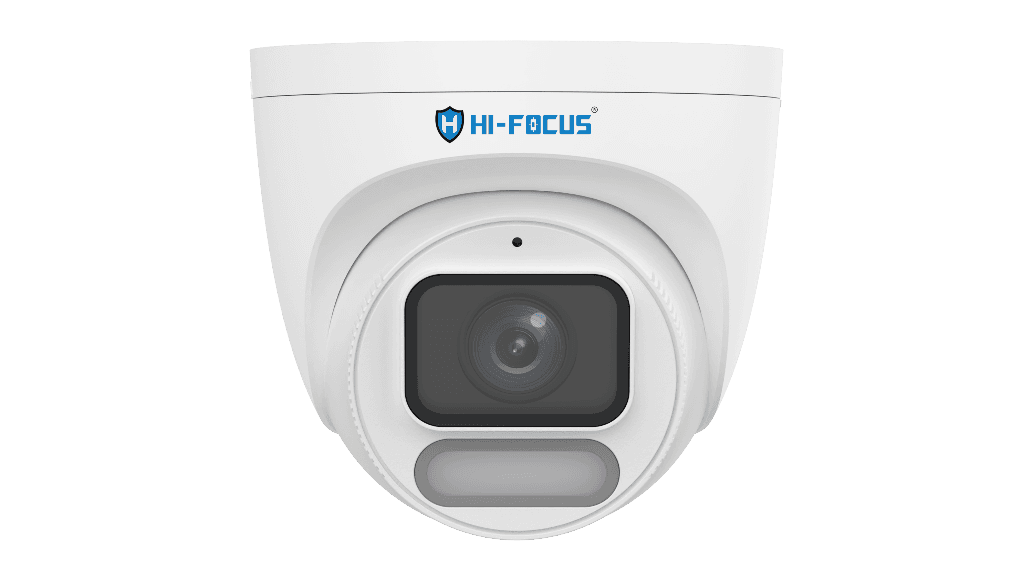

4MP DOME DARK HUNTER NETWORK CAMERA
HC-IPC-DQA4314L-TWL-0280
Product Features
- Ultra-Clear 4MP HD Image – Captures sharp and detailed visuals with a high-quality 1/1.8" CMOS sensor and F1.0 large aperture lens for brighter images.
- Multiple Resolution Options – Supports various resolutions, including 4MP, 3MP, and 2MP, ensuring smooth video at up to 30 frames per second. Supports expanded storage.
- Efficient Video Compression – Uses advanced Smart 265, H.265, H.264, and MJPEG technology to save storage while maintaining high-quality footage.
- 24/7 Full-Color Vision – Dark Hunter technology delivers bright and colorful images, even at night.
- Superior Bright Light Handling – 120dB WDR technology ensures clear images even in strong or uneven lighting conditions.
- Vertical Viewing Mode – 9:16 Corridor Mode provides a tall, narrow view for hallways and doorways.
- Built-in Microphone – Captures clear audio along with video.
- Warm Light for Night Security – Integrated white light illuminates up to 98 feet (30m) for visibility in the dark.
- Expandable Storage – Supports a 512GB Micro SD card for onboard video storage.
- All-Weather Durability – IP67-rated, making it waterproof and dustproof for outdoor use.
- Easy Power & Installation – Supports PoE (Power over Ethernet) for simplified wiring.
- Flexible Positioning – 3-axis design allows easy camera angle adjustments.
Specifications
- CAMERA
- LENS
- ILLUMINATOR
- VIDEO
- IMAGE
- EVENTS
- AUDIO
- STORAGE
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Sensor
1/1.8″, 4.0 megapixel, progressive scan, CMOS
Min. Illumination
Colour: 0.0003lux (F1.0, AGC ON)
Shutter
Auto/Manual, 1 ~ 1/100000s
WDR
120dB
S/N
>52Db
Adjustment angle
Pan: 0°~ 360°,Tilt: 0°~ 75°,Rotate: 0°~ 360°
LENS
Lens
2.8mm@F1.0, 4.0mm@F1.0
Iris
Fixed
Field of View (H)
110.4°~89.4°
Field of View (V)
60.5°~48.2°
Field of View (D)
115.2°~94.7°
ILLUMINATOR
Warm Light Range
Up to 30m (98ft)
Light On/Off Control
Auto/Manual
VIDEO
Video Compression
Smart 265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps Sub Stream: : 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
H.264 code profile
Baseline profile, Main profile, High profile
Video Bit Rate
128 Kbps~6144Kbps
Smart Code
Supported
ROI
Up to 8 areas
Video stream
Dual streams
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas per scene
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Support
Flip
Normal/ Vertical/ Horizontal/180°/90°Clockwise/90° Anti-clockwise
HLC
Support
BLC
Support
Defog
Digital Defog
EVENTS
Basic Detection
Line Crossing, intrusion(based on human body detection), Motion detection, Smart motion detection, Tampering alarm, Audio Detection
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Suppression
Support
Sampling Rate
8KHz
STORAGE
Edge Storage
Micro SD, up to 512GB
Network Storage
ANR,NAS(NFS)
NETWORK
Protocols
Pv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, U
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host
Up to 32 users. 2 user levels: administrator and common user
Security
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
INTERFACE
Built-in Mic
Support
Network
1 * RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption
Max 2.8W
Power Interface
Ø 5.5mm coaxial power plug
Dimensions (Ø x H)
Φ118x106mm (Ø4.6” x 4.2”)
Weight
0.48kg(1.06lb)
Material
Metal + Plastic
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection
4KV
Reset button
Support
