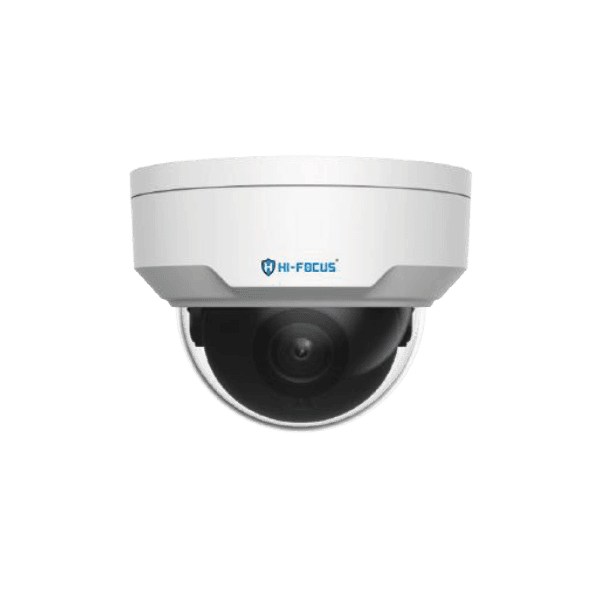

4MP IP DOME CAMERA
HC-IPC-B4262
Product Features
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Smart H.265, H.264, MJPEG
- ROI (Region of Interest)
- Customized OSD
- ONVIF Conformance
- 3-Axis
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide Input voltage range of ±25%
- IP67 Ingress Protection
- IK10 Vandal Resistant
Specifications
- CAMERA
- VIDEO
- AUDIO
- SMART
- NETWORK
- STORAGE
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.7", 5.0megapixel, Progressive Scan, CMOS
Lens
3.6mm@F2.0
Iris
Fixed
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
IR On/Off Control
Auto/Manual
Minimum Illumination
Colour: 0.01 Lux (F2.0, AGC ON); 0Lux with IR
IR
Up to 30m(98ft) IR range
WDR
120dB
S/N
>56dB
Digital zoom
16x
Angle of View (H)
105.6°
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Profile 1: 5MP (2592x1944), Max 20fps; Profile 2: 2MP (1920 X 1080), Max 25fps; Profile 3: 4CIF (704x576), Max 25fps
Video Bit Rate
128 Kbps~16 Mbps
Video Stream
Triple streams
9:16 Corridor Mode
Supported
ROI
Up to 2 areas
Motion Detection
Up to 4 areas
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
White balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR
Supported
HLC
Supported
BLC
Supported
Defog
Digital Defog
AUDIO
Audio Compression
G.711
Suppression
Supported
Sampling Rate
8 KHZ
SMART
Intelligence Analysis
Line Crossing detection, Intrusion detection
Basic Detection
Motion detection, Tampering alarm
General Function
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, User Authentication
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API
STORAGE
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS (NFS)
INTERFACE
Audio I/O
Input: impedance 35kΩ; amplitude 2V [p-p] / Built in Mic
Network
1 x RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC 12V ±25%, PoE (IEEE 802.3af) Power consumption: Max 5.5W
Working Environment
-35℃~60℃ (-31°F ~ 140°F) Humidity: ≤95% RH (non-condensing)
Surge Protection
4KV
Ingress Protection
IP67
Vandal Resistant
IK10
