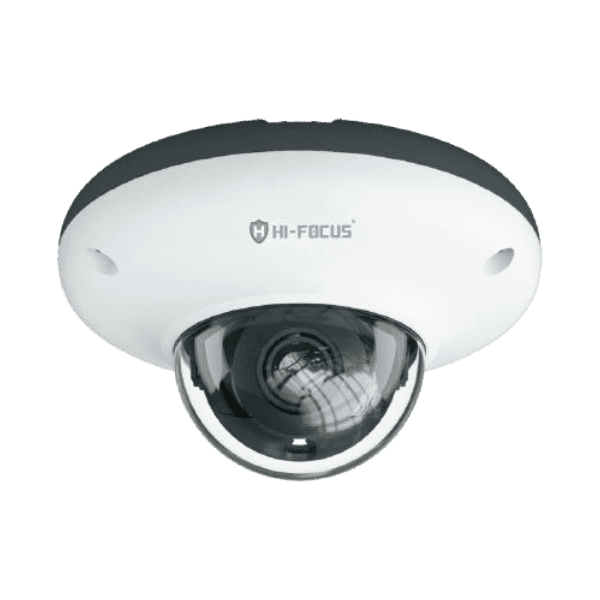

4MP IP DOME CAMERA
HC-IPC-DEI4114-0280
Product Features
- H.265+/H.265/H.264+/H.264/MJPEG coding
- Max. resolution: 2592 × 1520
- ICR auto switch, true day / night vision
- 20m IR night view distance
- 3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
- Support image distortion correction
- Built-in micro SD card slot, up to 256GB
- Support three streams
- Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
- DC12V/PoE power supply
- Intelligent analytics
- IP67 ingress protection
Specifications
- CAMERA
- VIDEO
- SMART
- INTERFACE
- NETWORK
- GENERAL
CAMERA
Sensor
1/3", progressive scan, 4.0megapixel, CMOS
Lens
2.8 mm@F1.6, horizontal FoV: 95.3°/ 3.6 mm@F1.6, horizontal FoV: 78.8° (Optional)
Shutter Speed
1 / 2s ~ 1 / 100000 s
Day/Night
IR-cut filter with auto switch (ICR)
Min. illumination
0.005 lux@F1.6,AGC ON;0 lux with IR
IR
20m IR Range
S/N
> 50dB
WDR
120dB
Lens Mount
M12
Digital zoom
16x
Noise Reduction
3D DNR
VIDEO
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Resolution
4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 1080 ), 720P ( 1280 720 ), D1, CIF, 480 240
Main Stream
4MP/2K/3MP/1080P / 720P (1 ~ 30fps);
Sub Stream
720P/D1/CIF/480×240 (1 ~ 30fps);
Third Stream
D1/CIF/480×240 (1 ~ 30fps)
Video Bit Rate
64 Kbps ~ 8 Mbps
Audio Compression
G711A / U
HLC
Supported
BLC
Supported
ROI
Each ROI to be configured separately
Privacy Mask
Up to 4 areas
SMART
Image Settings
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Mirror, Image Flip, NR, etc. adjustable through client software or web browser Image
Intelligent Analytics
Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification), Statistics target counting by line/area, heat map, Scene change, video blur and abnormal color detection, Face detection and face capture, Abandoned/missing object detection
General Function
Watermark, video mask, heartbeat, image distortion correction, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
INTERFACE
Network
1 RJ45 10M/100M Base-TX Ethernet
Audio
1CH audio input; 1CH built-in MIC
Edge Storage
Micro SD, up to 256GB
Reset
Yes
NETWORK
Protocols
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS
Compatible Integration
ONVIF (Profile S, Profile G), API
Storage
Network remote storage; micro SD card storage
Smart Alarm
Motion detection, SD card error, SD card full
Security
Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs
PoE
Yes , IEEE802.3af
IR Distance
20 m
Ingress Protection
IP67
GENERAL
Power
12 V DC, PoE Power consumption: Max 6 W
Dimensions (L x W x H)
Φ 110 × 59.8
Weight
0.38KG
Working Environment
- 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
Ingress Protection
IP67
