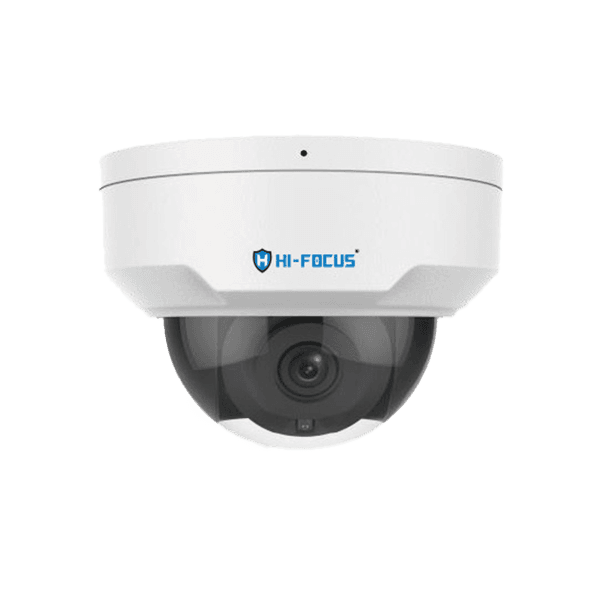

4MP IP DOME CAMERA
HC-IPC-DQA4214L-DVK-0280
Product Features
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2560x1440) @25/20fps; 3MP (2304x1296) @30/25fps;
- 2MP (1920x1080) @30/25fps
- Smart H.265, H.265, H.264
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- Support Micro SD card
- DC12V or PoE (IEEE 802.3af) power supply
- 2-Axis
- IP67 Ingress Protection & IK10 Vandal Resistant
Specifications
- CAMERA
- VIDEO
- SMART
- AUDIO
- STORAGE
- INTERFACE
- NETWORK
- GENERAL
CAMERA
Max Resolution
4MP
Sensor
1/3.0" CMOS
Min. Illumination
Colour: 0.01 lux (F2.1, AGC ON) 0 lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Adjustment Angle
Pan: 3° ~ 360°, Tilt: 0° ~ 68°
S/N
>52dB
WDR
DWDR
Lens
2.8 mm
Iris Type
Fixed
Iris
F2.1
Angle of view(H)
97.0°
Supplemental Light
IR
Illumination Distance (IR)
30 m (98.4ft)
Wavelength
850 nm
IR On/Off Control
Auto/Manual
Digital Noise Reduction
2D/3D DNR
White Balance
Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Defog
Digital Defog
VIDEO
Video Compression
Smart H.265, H.265, H.264
H.264 code profile
Baseline profile, Main Profile, High Profile
HLC
Supported
BLC
Supported
Smart Code
Supported (Main stream)
Frame Rate
Main Stream: 4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 25fps; 2MP (1920x1080), Max 30fps Sub Stream: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF (704x288), Max 30fps; CIF (352x288), Max 30fps
Video Bit Rate
128Kbps - 6144mbps
Video stream
Dual streams
OSD
Up to 4 OSDs
ROI
Support
Privacy Mask
Up to 4 areas
SMART
Intelligent Analysis
Basic Detection: Motion Detection, Tampering Alarm, Audio Detection
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Suppression
Supported
Sampling Rate
8KHZ
STORAGE
Edge Storage
Micro SD, up to 512 GB
INTERFACE
Network
1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic
Supported
NETWORK
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SMTP, SNMP
Compatible Integration
ONVIF (Profile S, Profile T), API, SDK
GENERAL
Power
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W
Dimensions (Ø x H)
Φ118 x 95mm (Φ4.6” x 3.8”)
Working Environment
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Weight
0.28kg (0.62lb)
Material
Metal + Plastic
Surge Protection
4KV
Ingress protection
IP67 & IK10
