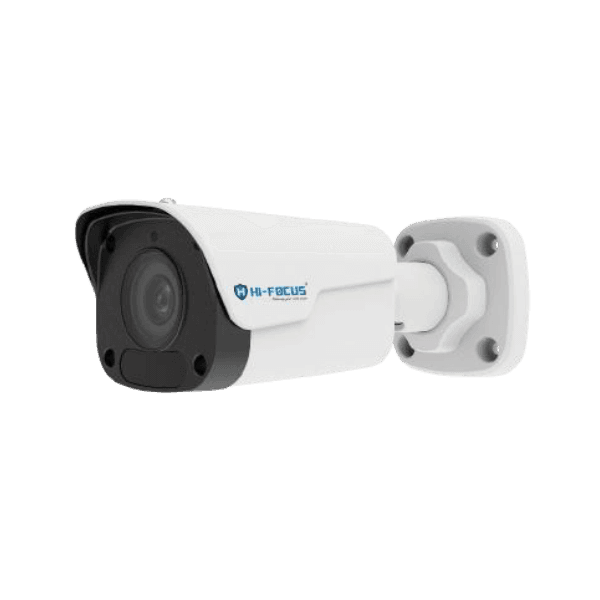

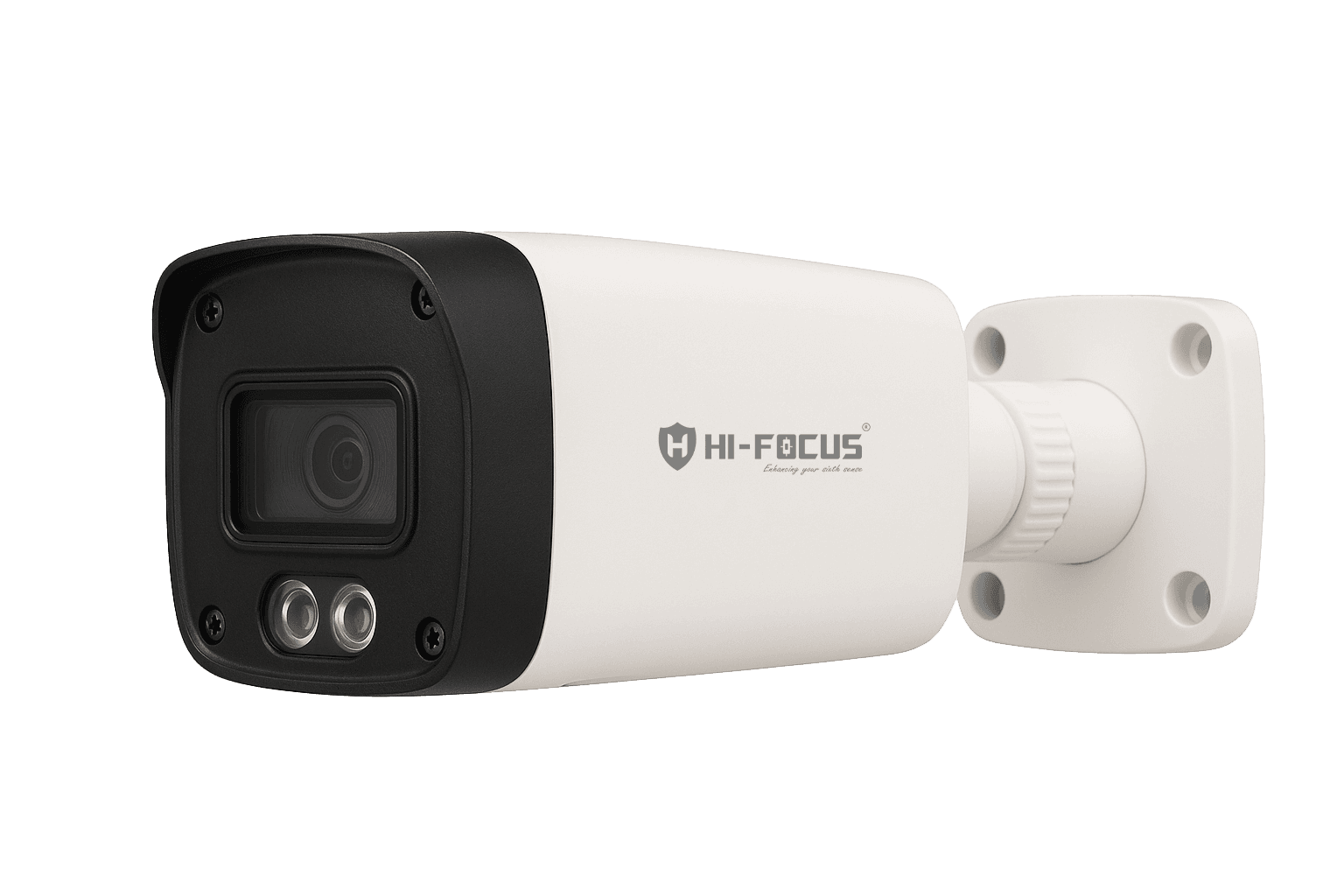

4MP IP BULLET CAMERA
HC-IPC-T4214A-0600
Product Features
- 4MP (2688 × 1520) H.265 coding
- H.265+ / H.265 / H.264 +/H.264 / MJPEG coding
- 10~ 20m white light view distance
- 24/7 full color imaging
- 3D DNR, WDR, HLC, BLC, and ROI coding
- Support electronic image stabilization
- Support image distortion correction
- Support 1CH audio input; 1 CH built-in MIC
- Built-in micro SD card slot; up to 512GB
- DC12V/PoE power supply
- Support three streams
- Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
- Multiple smart events can be enabled at the same time
- Support P2P function
- Support dual-system backup
- IP67 ingress protection
Specifications
- CAMERA
- VIDEO
- INTERFACE
- SMART ANALYSIS
- FUNCTIONS
- GENERAL
CAMERA
Image Sensor
1 / 2.9 "CMOS
Image Size
2688 × 1520
Electronic Shutter
Auto or manual mode; manual mode: 1 / 3s ~ 1 / 100000 s
Iris Type
Fixed Iris
Min. Illumination
0.0005 lux @F1.0, AGC ON; 0 lux with illumination on
S/N Ratio
≥50dB
Lens
2.8 mm@F1.0, H.FoV: 99°; V.FoV:53°; D.FoV: 119° 3.6 mm@F1.0, H.FoV: 81°; V.FoV: 44°; D.FoV: 96°
Focus
Fixed
Lens Mount
M12
Wide Dynamic Range
120 dB
Defog
Yes
Digital NR
3D DNR
EIS
Yes
Angle Adjustment
Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°
VIDEO
Video Compression
Main stream: H.265+/ H.265 / H.264+ / H.264 Sub stream: H.265+/ H.265 / H.264+ / H.264/ MJPEG Third stream: H.265+/ H.265 / H.264+ / H.264/ MJPEG
H.264 Compression Standard
Baseline Profile/Main Profile/High Profile
Resolution
4MP (2688×1520),2K (2560×1440), 1080P (1920×1080), 720P (1280×720 ), D1, VGA (640 ×480), 640 ×360, CIF, 480×240
Main Stream
4MP/2K/1080P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Sub Stream
720P/D1/640 ×360/VGA/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Third Stream
720P/D1/640 ×360/VGA/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Bit Rate
32 Kbps ~8 Mbps
Bit Rate Type
VBR / CBR
ROI
Each ROI to be configured separately
BLC
Supported
HLC
Supported
Audio Compression
G711A / U
Image Settings
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser
INTERFACE
Network
RJ 45 (10/100 Base-T)
Audio
1CH built-in MIC, 1CH audio input
Storage
Built-in micro SD card slot; up to 512GB
Reset
Yes
SMART ANALYSIS
Smart Event
Line crossing, region intrusion/entrance/exiting (human/vehicle classification), abandoned/ missing object detection
Statistics
Target counting by line (human/vehicle classification)
Exception Detection
Scene change, video blur and abnormal color detection, audio exception
Face Detection
Face detection, face capture
FUNCTIONS
Remote Monitoring
Web Client/NVR/NVMS/mobile APP
Web Browser
Chrome 92.0+/Edge 92.0+/Firefox 91.0+/Safari 13.1+
Online Connection
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, P2P, QoS
Compatibility
ONVIF, API & SDK
Storage
Network remote storage; micro SD card storage
Smart Alarm
Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection Watermark, video mask, heartbeat,
General Function
Watermark, video mask, heartbeat, image distortion correction, corridor pattern, ANR, cloud upgrade, disarming
Security
Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and token authentication for HTTP/RTSP
PoE
Yes, IEEE802.3af
White Light Range
10 ~20 m
Ingress Protection
IP 67
GENERAL
Power Supply
DC12V/PoE
Power Consumption
< 7W
Storage Conditions
- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Operating Conditions
- 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm )
167.6 × × 75 74.6
Weight (net)
Approx. 0.40KG
Installation
Ceiling mounting; Wall mounting
