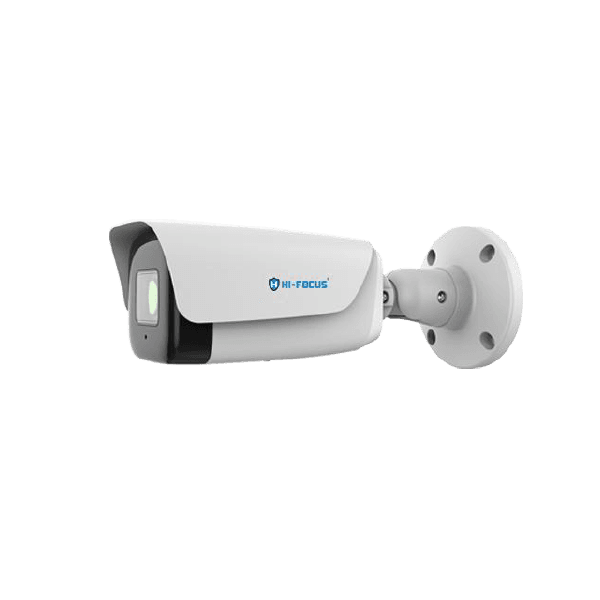

5MP IP BULLET CAMERA
HC-IPC-T4215DZS-VF
Product Features
- Metal housing
- Up to 5MP,2880×1620@30fps
- S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
- Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
- IR range up to 80m
- Built-in Mic
- Support microSD/microSDHC/microSDXC card,up to 512GB
- Support smart surveillance, face capture
- Support human/vehicle classification
- Operating conditions -40℃~65℃(-40℉~149℉), ≤95%RH
- DC12V±25%,Max. 9.5W, PoE:IEEE 802.3af,Max. 10.5W
- IP67
Specifications
- CAMERA
- LENS
- ILLUMINATOR
- IMAGE
- FEATURE
- NETWORK
- COMPRESSION STANDARD
- INTERFACE
- GENERAL
CAMERA
Image Sensor
1/2.7"CMOS
Min. Illumination
Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time
1s~1/100000s
Day & Night
IR-cut filter with auto switch (ICR)
Smart IR
Yes
WDR
120dB
S/N
>39dB
Angle Adjustment
0~360°(P); 0~90°(T); 0~360°(R)
LENS
Lens Type
Motorized
Focal Length
2.7~13.5mm
Lens Mount
Φ14
Aperture Range
F1.6
Aperture Type
Fixed
Field of View
98.3°~32.2°(H); 54.9°~18.2°(V); 125.6°~37°(D)
DORI Distance
Detect:56m~240m Observe:22m~95m Recognize:11m~48m Identify:5.6m~24m
ILLUMINATOR
IR LEDs
4
IR Distance
Up to 80m
Wavelength
850nm
Max. Resolution
5MP,2880×1620@30fps
Main Stream
PAL:25fps(2880×1620, 2688×1520, 2560×1440, 2304×1296) 50fps(1920×1080, 1280×720) NTSC:30fps(2880×1620, 2688×1520, 2560×1440, 2304×1296) 60fps(1920×1080, 1280×720)
Sub Stream
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240)
Third Stream
PAL:25fps(1920×1080, 1280×720, 704×576, 640×360, 704×288,352X288 NTSC:30fps(1920×1080, 1280×720, 704×480, 640×360, 704×240, 352×240)
BLC
Yes
HLC
Yes
AGC
Yes
3D DNR
Yes
White Balance
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI
8 rectangular static areas
Corridor Mode
Yes
OSD
Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinesecharacters per 16*16/32*32/48*48/64*64/96*96
Picture Overlay
1*200x200 size BMP 24 color bit image overlay
Privacy Mask
4 black static areas
Defog
Yes
FEATURE
General Alarm
Motion Detection; Mask Alarm; Alarm Input
Exceptions Alarm
Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception
Linkage Method
Send Email; Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output
Video Analytics
Human/Vehicle Classification; Tripwire; Perimeter; Video Abnormal; Audio Abnormal
Rules of Behavior Analyse In 1 Scene
8
Face Mode
Face Capture
Face Capture Performance
Detect up to 8 faces at the same scene; Capture up to 4 faces at the same scene
NETWORK
ANR
Yes
Protocols
HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP; SRTP; FTP; SFTP
Remote Connection
≤7
System Compatibility
ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone; RTSP; RTMP
Web
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
COMPRESSION STANDARD
Video Compression
H.265+/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate
32Kbps~16Mbps
Audio Compression
G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate
8KHz/32KHz/48KHz
INTERFACE
Communication Interface
1xRJ45 (10/100Base-T)
Audio I/O
1; 1
Alarm I/O
1-ch,TTL inputs,3mA,3.3VDC; 1-ch, TTL output,30mA,12VDC
Built-in Mic
Yes
Reset Button
Yes
On-board Storage
Support microSD/microSDHC/microSDXC card,up to 512GB
Additional Interfaces
RS485
GENERAL
Operating Temperature
-40℃~65℃(-40℉~149℉)
Operating Humidity
≤95%RH
Storage Temperature
-40℃~65℃(-40℉~149℉)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
DC12V±25%,Max. 9.5W; PoE:IEEE 802.3af,Max. 10.5W
Protection
Surge4000V; ESD6000V; IP67
Boundary Dimensions
239(L)90(W)90(H)mm
Package Dimensions
280(L)125(W)140(H)mm
Gross Weight
1.28kg
