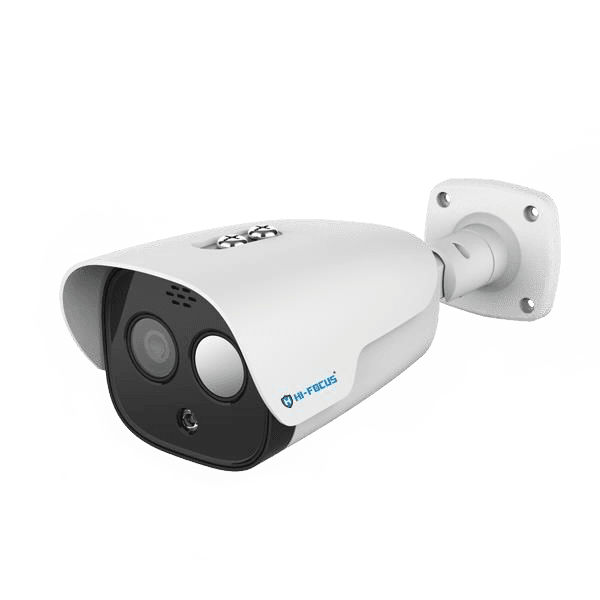

5MP IP BULLET CAMERA
HC-IPC-T4215T12-0400
Product Features
- With the latest 12 μ m IR thermal imaging detector and advanced IR vision algorithm, IRS-FB2252-T series can make farther and clearer images
- Visible imaging and thermal imaging can meet the requirement for 24-hour security monitoring
- Smart analysis for actions such as tripwire intrusion and area intrusion are
- available
- Support professional temperature measurement analysis tools and smart
- fire detecting algorithm
- Support multiple event linkage alarm and sound-light alarm
- One-piece body design with encapsulation level IP67
- DC12 or PoE power supply is available
- SDK, NVR and VMS client software are available
Specifications
- THERMAL PARAMETERS
- VISIBLE PARAMETERS
- DUAL-SPECTRUM PARAMETERS
- NETWORK FUNCTIONS
- VIDEO PARAMETERS
- TEMPERATURE MEASUREMENT
- SMART FUNCTIONS
- SYSTEM INTERFACE
- GENERAL SPECIFICATION
THERMAL PARAMETERS
Detector Type
VOx, uncooled FPA detectors
Spectral Range
8~14μm
NETD
≤40mK @25°C, F#1.0
Max. Resolution
256×192
Pixel Pitch
12μm
Focal Length
3.2mm / 7mm / 10mm
Focus Type
Athermal fixed focus
FOV
56.0°×42.2° / 24.8°×18.7° / 17.5°×11.3°
F#
1.1 / 1 / 1
IFOV
3.75mrad / 1.7mrad / 1.2mrad
Palette
20 palettes available such as Whitehot/Blackhot/Rainbow.
VISIBLE PARAMETERS
Sensor
5MP 1/2.8" Progressive Scan CMOS
Max. Resolution
2560×1920
Focal Length
4mm / 8mm / 12mm
Focus Type
Fixed focus
FOV
82°×59° / 39°×29° / 25°×18°
Min. Illumination
Color: 0.005Lux, Black&white:0.0005Lux, IR light on:0Lux
Wide Dynamic
120dB
Day/Night Conversion
ICR auto conversion/ Electronic color to B/W
Digital Noise Reduction
3D NR
Filling Light
Infrared filling light, maximum filling distance 30m
DUAL-SPECTRUM PARAMETERS
Dual-Spectrum Fusion
Support the thermal image to fuse visible image to improve the image details
Temperature Information Overlay
The camera displays a digital camera image with superimposed thermal imaging temperature measurement information
NETWORK FUNCTIONS
Network Protocols
IPv4, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP
Interoperability
ONVIF, SDK
Number of Videos Previewed Simultaneously
Support up to 8 channels
User Management
Up to 32 users, divided into 3 levels: administrators, operators and users
VIDEO PARAMETERS
Max. Resolution
2560×1920(visible),1280×960(thermal)
Image Format
JPEG
Audio Compression Standard
G.711a/G.711u/AAC/PCM
Video Compression Standard
H.264/H.265
Main Stream
Visible: 50Hz:25fps (2560×1920, 2560×1440,1920×1080) 60Hz:30fps (2560×1920, 2560×1440, 1920×1080) Thermal: 50Hz:25fps (1280×960, 1024×768) 60Hz: 30fps (1280×960, 1024×768)
Sub stream
Visible 50Hz: 25fps (1920×1080, 1280×720, 704×576, 352×288) 60Hz: 30fps (1920×1080, 1280×720, 704×480, 352×240) Thermal: 50Hz: 25fps (640×480, 320×288) 60Hz: 30fps (640×480, 320×240)
TEMPERATURE MEASUREMENT
Measuring Range
-20℃~150℃,0℃~+550℃
Measuring Accuracy
±2℃ or ±2% (The larger value shall prevail)
Temperature Analysis
Support full frame, spot, line, region temperature measurement rules and linkage alarms
SMART FUNCTIONS
Fire Warning
Support fire detection
Smart Video
Alarm trigger recording, disconnection trigger recording
Smart Alarming
Support triggering alarm and linkage alarm of network disconnection, IP address conflict, memory error, illegal access and burn alarm
Smart Detecting
Support event analysis functions such as area intrusion, tripwire intrusion, dynamic detection analysis, etc.
Voice Intercom
Support two-way voice intercom
Linkage Alarm
Video/image/mail/ alarm output / sound and light alarm
SYSTEM INTERFACE
Power Interface
DC 12V±25% / PoE(802.3af)
Communication Interface
1 RJ45 10M/100M adaptive Ethernet port
Audio Input
1 channel audio input
Audio Output
1 channel audio output
Alarm Input
2 channel
Alarm output
1 channel
Storage Interface
Micro SD memory (maximum 256G)
Reset Button
Supported
RS485
1 channel RS485 and support Pelco protocol
GENERAL SPECIFICATION
Operating Temperature& Humidity
-40℃~+70℃；<95%RH
Protection Level
IP66
Power Consumption
Max.< 6W
Dimension (mm)
265×99×87 (minimum length can be adjusted to 253mm)
Weight
950g
