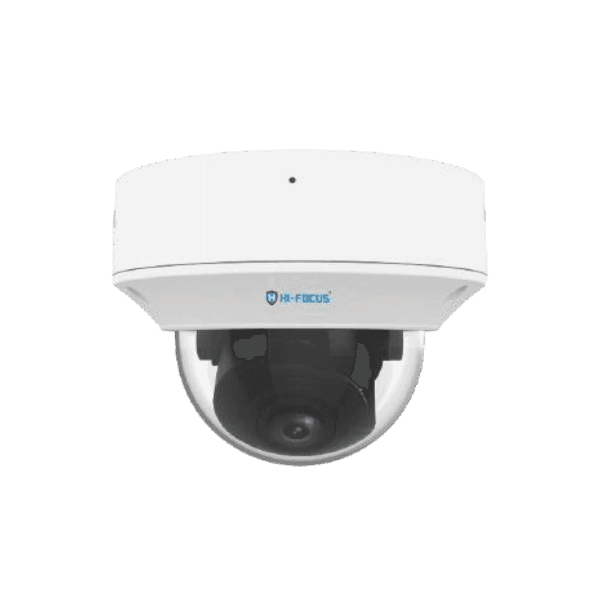

5MP IP DOME CAMERA
HC-IPC-D4214DZ-VF
Product Features
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2592x1944)@ 20fps; 4MP (2560x1440)@ 25fps;
- 2MP (1920x1080) @25fps
- Smart H.265, H.265, H.264, MJPEG
- Intelligent: Line Crossing, Intrusion Detection, Motion Detection
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Audio 1CH IN
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 GB Micro SD card
- IP67 Ingress Protection
- IK10 Vandal Resistant
Specifications
- CAMERA
- VIDEO
- AUDIO
- SMART
- NETWORK
- STORAGE
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.7", 5.0megapixel, Progressive Scan, CMOS
Lens
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Iris
Auto / Manual
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
IR On/Off Control
Auto/Manual
Minimum Illumination
Colour: 0.002 Lux (F1.2, AGC ON)
IR
Up to 30m(98ft) IR range
WDR
120dB
S/N
>56dB
Digital zoom
16x
Angle of View (H)
106.25°~ 30.42°
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Profile 1:5MP (2592x1944), Max 20fps; 4MP (2560x1440), Max 25fps; 1080P (1920x1080), Max 25fps; Profile 2: 1080P (1920x1080), Max 25fps; 720P (1280x720), Max 25fps; Profile 3: D1 (720x576), Max 25fps; CIF (352x288), Max 25fps;
Video Bit Rate
128 Kbps~16 Mbps
Video Stream
Triple streams
9:16 Corridor Mode
Supported
ROI
Up to 4 areas
Motion Detection
Up to 4 areas
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
White balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR
Support
HLC
Support
BLC
Support
Defog
Digital Defog
AUDIO
Audio Compression
G.711
Audio Bitrate
64 Kbps
Suppression
Support
Sampling Rate
8 KHZ
SMART
Intelligent Analysis
Motion Detection, Tampering, Line crossing detection, Missing Object detection, Object left detection, Intrusion detection, People Counting, Face detection.
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
STORAGE
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS (NFS)
INTERFACE
Audio I/O
Input: impedance 35kΩ; amplitude 2V [p-p]
Network
1 x RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC12V ±25%, PoE (IEEE 802.3af) Power consumption: MAX 7.0W
Working Environment
-30℃~60℃ (-22°F ~ 140°F) Humidity: ≤95% RH (non-condensing)
Reset Button
Support
Surge Protection
6KV
Ingress Protection
IP67
Vandal Resistant
IK10
