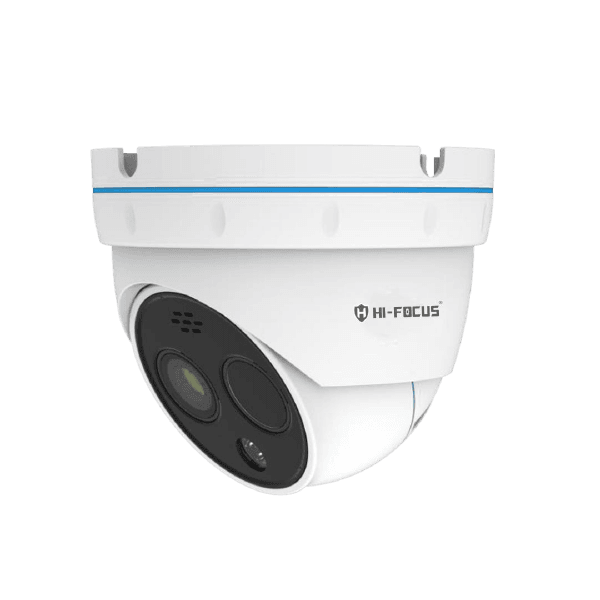

5MP IP DOME CAMERA
HC-IPC-DT4215-0280
Product Features
- With the latest 12μm IR thermal imaging detector and advanced IR image algorithm, it can make farther and clearer images
- Visible imaging and thermal imaging can meet the requirement for 24/7 security monitoring
- Smart analysis for actions such as tripwire intrusion and area intrusion are
- available
- The professional thermographic analysis tools and smart fire detecting algorithm is supported
- Support multi-event linkage alarm and sound-light alarm
- One-piece body design with encapsulation level IP67
- DC12 or PoE power supply is available
- The compatible NVR and VMS software are provided, ONVIF standard interface protocol and SDK for secondary development are available
Specifications
- THERMAL
- VISIBLE
- DUAL-SPECTRUM
- NETWORK FUNCTIONS
- VIDEO
- TEMPERATURE MEASUREMENT
- Smart Functions
- System Interface
- General Specification
THERMAL
Detector Type
VOX, uncooled FPA detectors
Spectral Range
8~14μm
NETD
≤40mK (@25°C, F#1.0, 25Hz)
Resolution
256×192
Pixel Pitch
12μm
Focal Length
2.0mm / 3.2mm / 7mm
Focus Mode
Athermal fixed focus
FOV
90°x65.1° / 56.0°×42.2° / 24.8°×18.7°
F#
1.1 / 1.1 / 1.0
IFOV
6.0mrad / 3.75mrad / 1.71mrad
Palette
20 palettes available such as White-hot/Black hot/Rainbow
VISIBLE
Sensor
5MP 1/2.7" Progressive Scan CMOS
Max Resolution
2592×1944
Focal Length
2.8mm / 4mm / 8mm
Focus Mode
fixed focus
FOV
115°× 80° / 84°× 60.7° / 38°× 28°
Min. Illumination
0.0018Lux @(F1.6, AGC ON), 0 Lux with IR
WDR
120dB
Day/Night Conversion
ICR auto conversion/ Electronic color to B/W
DNR
3D NR
Filling Light
Infrared filling light, maximum filling distance 30m
DUAL-SPECTRUM
Dual-Spectrum Fusion
Support the thermal image to fuse visible image to improve the image details
PIP
support thermal image overlaid on visible image
Temperature Information Overlay
The camera displays a digital camera image with superimposed thermal imaging thermographic information
NETWORK FUNCTIONS
Network Protocols
IPv4, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP
Interoperability
ONVIF, SDK
Number of Videos Previewed Simultaneously
Support up to 8 channels
User Management
Up to 32 users, divided into 3 levels: administrators, operators and users
VIDEO
Max. Resolution
2592×1944 (visible), 1280×960 (thermal)
Image Format
JPEG
Audio Compression Standard
G.711a/G.711u/AAC/PCM
Video Compression Standard
H.264/H.265
Main Stream
Visible: 50Hz: 25fps ((2592×1944, 2560×1440, 1920×1080) 60Hz: 30fps (2592×1944, 2560×1440, 1920×1080) Thermal: 50Hz:25fps (1280×960, 1024×768) 60Hz: 30fps (1280×960, 1024×768)
Sub stream
Visible 50Hz: 25fps (1920×1080, 1280×720, 704×576, 352×288) 60Hz: 30fps (1920×1080, 1280×720, 704×480, 352×240) Thermal: 50Hz: 25fps (640×480, 256×192) 60Hz: 30fps (640×480, 256×192)
TEMPERATURE MEASUREMENT
Measuring Range
-20℃~+550℃
Measuring Accuracy
±2℃ Or ±2% (The Larger Value Shall Prevail)
Temperature Analysis
Whole Frame, Spot, Line, Region, Support Temperature Measurement Rules and Linkage Alarms
Smart Functions
Fire Warning
Support Fire Detection
Smart Video
Alarm Trigger Recording, Disconnection Trigger Recording
Smart Alarming
Support Triggering Alarm and Linkage Alarm of Network Disconnection, IP Address Conflict, Memory Error, Illegal Access and Burn Warning
Smart Detecting
Support Tripwire Intrusion, Area Intrusion
Voice Intercom
Two-Way Voice Intercom
Alarm Linkage
Video/ Snapshot/Email/Alarm Output/Sound and Light Alarm
System Interface
Power Interface
Dc 12v±25% / PoE(802.3af)
Communication Interface
1 RJ45 10m / 100m Self-Adaptive Ethernet Port
Audio Input
1 Channel Audio Input
Audio Output
1 Channel Audio Output
Alarm Input
1 Channel Dc 0~5v Alarm Input
Alarm Output
1 Channel Open Relay Output
Storage Interface
Micro SD Memory (Maximum 256GB)
Reset Button
Support
Rs485
1 Channel Rs485, Extended Pelco Protocols Are Supported
General Specification
Operating Temperature& Humidity
-40℃~+70℃；<95%Rh
Protection Level
IP67
Power Consumption
≤10w
Dimension (Mm)
Φ129×96
Weight
≤0.8kg
