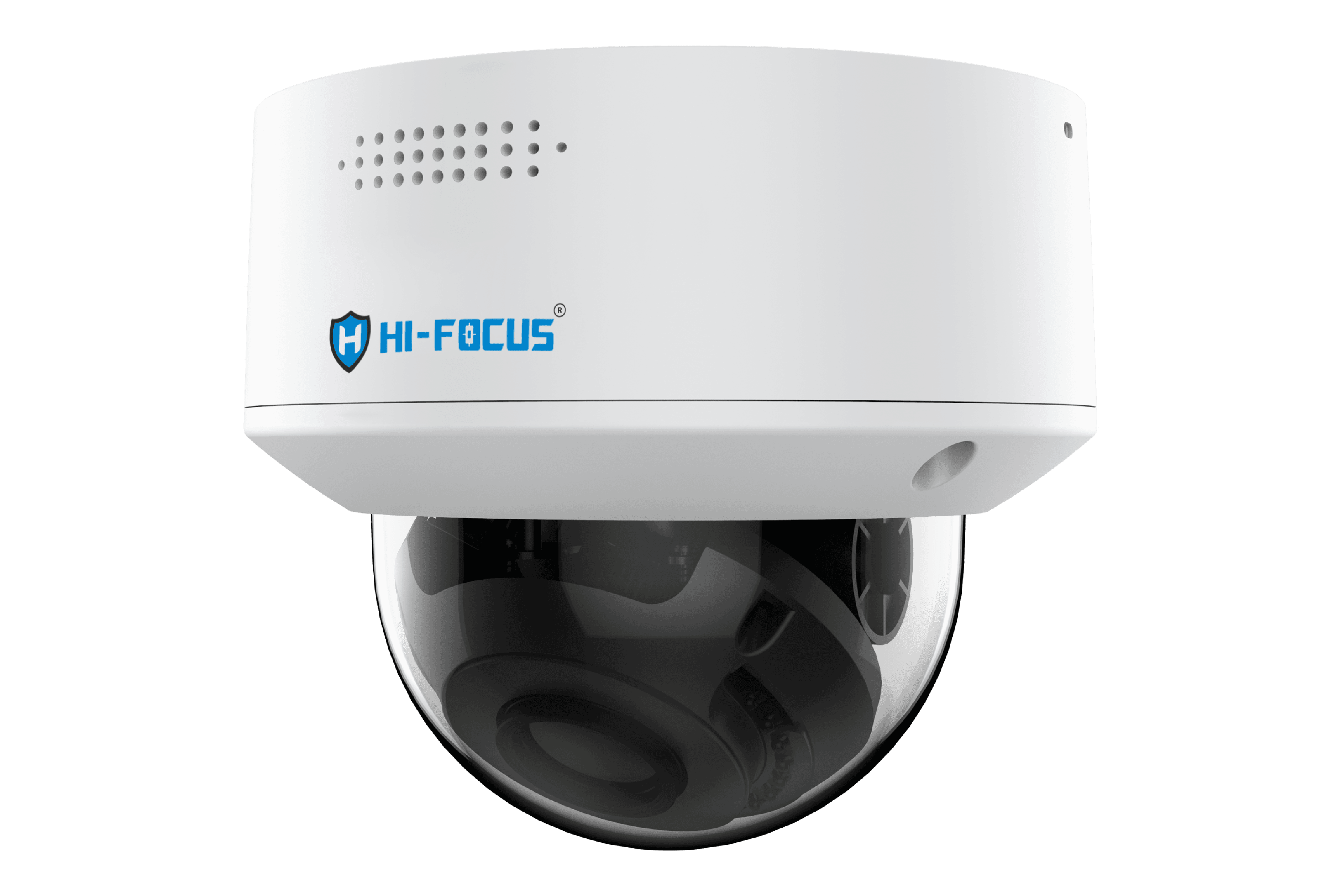

5MP VANDAL DOME MVF NETWORK IP CAMERA
HIPC-D3215-RDLSZK-I2
Product Features
- 5MP Full HD Resolution – Delivers sharp 3072×1728 video @ 30fps
- Low-Light Performance – 0.002Lux@ (F1.6, AGC ON), B/W: 0 Lux with IR
- Night Vision – Up to 30m IR range, 10m white light distance
- Lens – 2.7-13.5 mm Motorized Varifocal Lens
- Audio & Alarm Interface – Built-in microphone and speaker
- 1CH Audio IN/OUT, 1CH Alarm IN/OUT
- Smart AI Detection – Supports human and vehicle classification, People Counting
- SD Card Storage – MicroSD up to 512GB
- IP67 Weatherproof – Fully protected against dust and heavy rain
- IK10 Vandal Resistance – Ideal for public or high-risk areas
Specifications
- CORE FEATURES CAMERA
- VIDEO
- INTELLIGENT ANALYSIS
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CORE FEATURES CAMERA
Image Sensor
1/2.7" CMOS Sony Starvis Image Sensor
Minimum illumination
Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Speed
1s-1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
IR LEDs
18
Smart IR
upto 30m
Wave length
850nm
White LEDs
18
Whitelight Distance
Up to 10m
WDR
120dB
S/N
>56dB
Focal Length
2.7-13.5mm
Aperture Range
F1.6, Fixed
Aperture Type
Motorized
Field of View
98.3°~32.2°(H), 54.9°~18.2°(V), 125.6°~37°(D)
DORI Distance
Detect: 56m~240m Observe: 22m~95m Recognize: 11m~48m Identify: 5.6m~24m
Optical Zoom
5x
Digital Zoom
16x
VIDEO
Video Compression
Smart H.265+/H.265/H.264B/H.264M/ H.264H/Motion JPEG
Video Bit Rate
32k-6Mbps
Audio Compression
G.711A/G.711U/ADPCM_D
Audio Sampling Rate
8kHz/32kHz/48kHz
Max. Resolution
5MP, 3072× 1728@30fps
Main Stream
PAL:25fps(3072×1728, 2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:30fps(3072×1728, 2688×1520, 2560×1440, 2304×1296,1920×1080, 1280×720)
Sub Stream
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240)
Third Stream
4CIF(704x576) / 704×480 @30fps / 25Fps
Fourth Stream
704×480 @30fps / 25Fps (Optional)
Streams
Quad Stream (AI Disabled), Dual Stream (Al Enabled)
HLC
Supported
3DNR
Supported
AGC
Supported
BLC
Supported
White Balance
Auto/Semi-auto/Manual/Sunshine/ Nature Light/Warm Light Lamp/ Daylight Lamp/Filament Lamp/ Locked White Balance
ROI
8 rectangular static areas
OSD
16 x 16/32 x 32/48 x 48/64 x 64/ 96 x 96
Defog
Supported
Privacy Mask
4 regions
INTELLIGENT ANALYSIS
Basic Event
Motion Detection, Mask Alarm, Disk Full Disk R/W Error, IP Address Conflict, Network Disconnection
AI Functions
People Counting
Smart Detection
Supports Human/Vehicle Classification, Tripwire, Perimeter detection
Rules of Behavior Analyse In 1 Scene
2
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
INTERFACE
Network Interface
1×RJ-45(10/100Base-T)
Audio
1 × Input,and 1 × Output
Built-in Mic & Speaker
Supported
Alarm
1 × Input, and 1 × Output
Reset Button
Supported
On-Board Storage
Built-in Micro SD card slot, up to 512 GB
NETWORK
ANR
Yes
Protocols
RTSP, HTTPS, TCP, UDP, UPnP, ICMP, SNMPv3, DHCP, DNS, DDNS, NTP, TLS v1.2/v1.3, QoS, IPv4, SSH, Unicast, Multicast, ARP, FTP
System Compatibility
Onvif (Profile S, G, T, M), SDK, CGI
Remote Connection
≤2
Client
HF Prime VMS
GENERAL
Operating Temperature
-35°C~65°C(-31°F~149°F)
Operating Humidity
≤95%RH
Storage Temperature
-35°C~65°C(-31°F~149°F)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
DC12V±25%, Max. 7W, PoE:IEEE 802.3af, Max. 8W
Ingress Protection
Surge4000V, ESD6000V, IP67, IK10
Vandal Resistance
IK10
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Boundary Dimensions
143(L)143(W)123(H)mm
Package Dimensions
250(L)180(W)175(H)mm
Gross Weight
1.147kg
