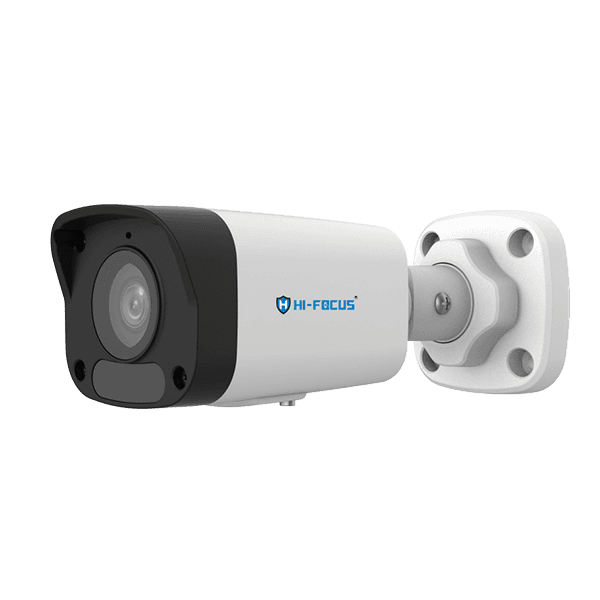

8MP IP BULLET CAMERA
HC-IPC-TQA4318L-DK-0400
Product Features
- High quality image with 8MP, 1/2.7"CMOS sensor
- 8MP (3840x2160) @15fps; 5MP (2880x1620) @25/20fps; 4MP (2560x1440) @25/20fps; 3MP (2304x1296) @30/25fps; 2MP (1920x1080) @30/25fps;
- Smart H.265, H.265, H.264, MJPEG
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 512 GB Micro SD card
- Support PoE power supply
- 3-Axis
- IP67 Ingress Protection
Specifications
- CAMERA
- VIDEO
- SMART
- AUDIO
- STORAGE
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Max Resolution
8MP
Sensor
1/2.7" CMOS
Min. Illumination
Colour: 0.01 lux (F1.6, AGC ON) 0 lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment Angle
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
Lens
4.0 mm
Iris Type
Fixed
Iris
F1.6
Angle of view(H)
91.2°
Supplemental Light
IR
Illumination Distance (IR)
30 m (98.4 ft)
Wavelength
850 nm
Noise Reduction
2D/3D DNR
S/N
>52dB
WDR
120dB
AWB (Auto white balance)
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Defog
Digital Defog
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 8MP (3840x2160) @15fps; 5MP (2880x1620) @25/20fps; 4MP (2560x1440) @25/20fps; 3MP (2304x1296) @30/25fps; 2MP (1920x1080) @30/25fps Sub Stream: 720P (1280x720) @30/25fps; D1 (720x576), Max 30fps; 640x360, Max 30fps;
Video Bit Rate
128 Kbps ~ 16 Mbps
Video stream
Dual streams
HLC
Supported
BLC
Supported
Smart IR
Supported
OSD
Up to 4 OSDs
ROI
Support
Privacy Mask
Up to 4 areas
SMART
Intelligent Analysis
Basic Detection: Motion Detection, Tampering Alarm, Audio Detection, Line Crossing, Intrusion (Based on Human Body Detection)
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Suppression
Supported
Sampling Rate
8 KHZ
STORAGE
Edge Storage
Micro SD, up to 512 GB
Network Storage
ANR, NAS (NFS)
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
INTERFACE
Network
1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic
Supported
GENERAL
Power
12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 5.0W
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Dimensions (L x W x H)
161 x 62 x 63mm (6.3” x 2.4” x 2.5”)
Weight
0.33kg (0.72lb)
Reset Button
Supported
Material
Graphene + Metal
Surge Protection
4KV
Ingress Protection
IP67
