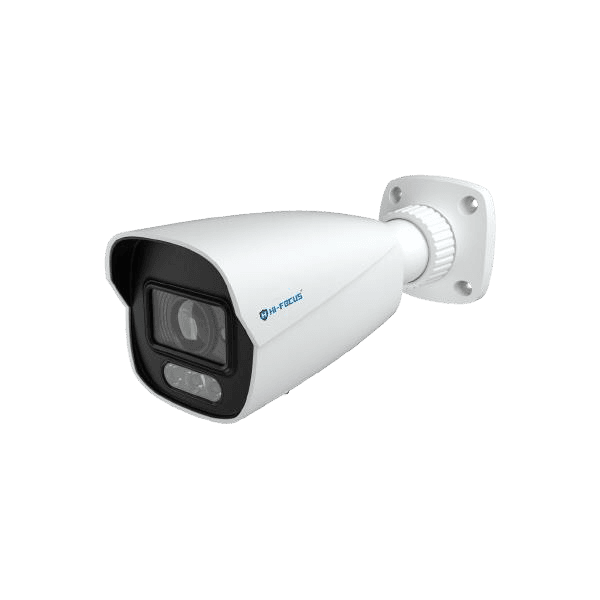

8MP IP BULLET CAMERA
HC-IPC-TS8800N5-AL
Product Features
- H.265+ /H.265 /H.264+ /H.264/MJPEG coding
- Max. resolution: 3840 × 2160
- ICR auto switch, true day / night
- 50m IR or white light range
- 3D DNR, true WDR, HLC, BLC, Defog and ROI coding
- 1CH audio input; 1CH audio output
- 1CH built-in speaker; 1CH built-in microphone
- Built-in micro SD card slot, up to 256GB
- Support three streams
- Intelligent analytics
- Blue and red light warning
- Support user-defined warning voice import
- DC12V/PoE power supply
- IP67 ingress protection
Specifications
- CAMERA
- VIDEO
- INTERFACES
- FUNCTIONS
- INTELLIGENT ANALYTICS
- GENERAL
CAMERA
Sensor
1 / 1.8" CMOS
Image Size
3840 × 2160
Electronic Shutter
1 / 2s ~ 1 / 100000 s
Iris Type
Fixed Iris
Min. Illumination
0.008lux@F1.6, AGC ON, 0 lux with IR, 0 lux with LED
Lens
2.8mm@F1.6 / 3.6mm@F1.6
Angle of view (H)
109°
Focus
Fixed
Lens Mount
M12
Wide Dynamic Range
120dB
BLC
Yes
HLC
Yes
Defog
Yes
Digital NR
2D/3D DNR
S/N Ratio
≥50dB
Angle Adjustment
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°
VIDEO
Video Compression
Main stream: H.265+ / H.265 / H.264 + / H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264 / MJPEG
H.265 Compression Standard
Baseline Profile/Main Profile/High Profile
Resolution
8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944), 4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), CIF, 480×240
Main Stream
8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Sub Stream
1080P/720P/D1/VGA/CIF (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Third Stream
D1/VGA/CIF/480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Bit Rate
64 Kbps ~12 Mbps
Bit Rate Type
VBR / CBR
Audio Compression
G711A/U
Image Settings
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
INTERFACES
Network
RJ 45 10M/100M self-adaptive Ethernet port
Audio
1CH audio input; 1CH audio output; 1CH built-in speaker; 1CH built-in microphone
Alarm
1CH alarm input; 1CH alarm output
Storage
Built-in micro SD card slot; up to 256GB
Reset
Yes
FUNCTIONS
Remote Monitoring
Web browser /NVR /Mobile APP
Online Connection
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS
Interface Protocol
ONVIF (Profile S & G)
Storage
Network remote storage; micro SD card storage
Smart Alarm
Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, Cable connection
General Function
Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction
Security
Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs
PoE
Yes, IEEE802.3af
Supplement Light Range
IR range: 50 m White light range: 50 m
INTELLIGENT ANALYTICS
Video Abnormality
Scene change detection, video blur detection, abnormal color detection
Perimeter Detection
Line crossing detection (human/vehicle classification); Region intrusion/ entrance/exiting detection (human/vehicle classification)
Sound & Light Warning`
Yes
Other Events
Face detection and face capture, abandoned/missing object detection; heat map; target counting by line/area, heat map
GENERAL
Power Supply
DC12V/PoE
Power Consumption
< 11.5W
Storage Environment
- 30°C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Operating Environment
- 30 °C ~ 60°C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
Dimensions (mm)
217.7 × 80.5 × 80.3
Weight (net)
Approx. 0.68KG
Ingress Protection
IP67
