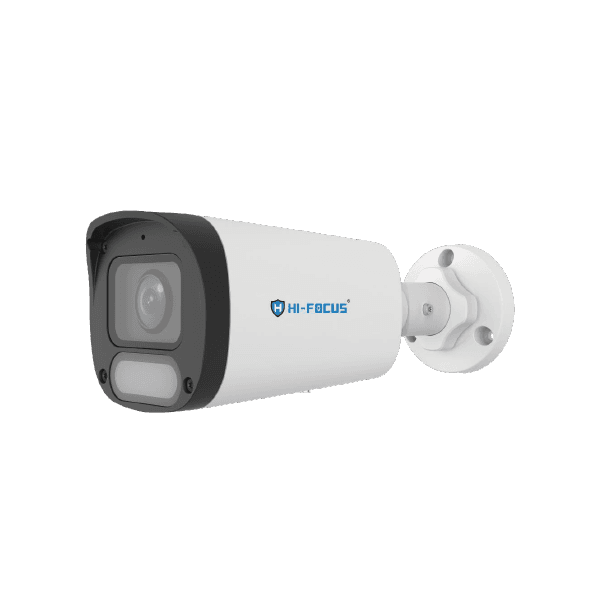

8MP IP BULLET CAMERA
HC-lPC-TQA4318L-TWL-0400
Product Features
- High quality image with 8MP, 1/1.8"CMOS sensor and Fl.O large aperture lens
- 8 MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps;
- Smart 265, H.265, H.264, MJPEG
- Dark Hunter technology ensures 24-hour full-color images
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- White Light, up to 30m warm light distance
- Supports 512 GB Micro SD card
- IP67 protection
- Support POE power supply
- 3-Axis
Specifications
- CAMERA
- LENS
- ILLUMINATOR
- VEDIO
- IMAGE
- EVENTS
- AUDIO
- STORAGE
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Sensor
1/1.8" , 8 .O megapixel, progressive scan, CMOS
Min. Illumination
Colour: O.00031ux (Fl.o, AGC ON)
Shutter
Auto/Manual, 1 1/100000s
WDR
120dB
S/N
>52Db
Adjustment angle
Pan: 3600,Tilt: 3600
LENS
LENS
2.8mm@F1.O, 4.0mm@F1.O
Iris
Fixed
Field of View (H)
99.0'&77.5•
Field of View (V)
53.0°-42.5°
Field of View (D)
118.0•-91.50
ILLUMINATOR
Warm Light Range
Up to 30m (98ft)
Light On/Off Control
Auto/Manual
VEDIO
Video Compression
Smart 265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 1080P (1920* 1080), Max 30fps; 720P (1280*720), Max 30fps; sub Stream: 720P (1280*720), Max 30fps•, DI (720*576), Max 30fps; 30fps; Max 30fps; Max 30fps;
H.264 code profile
Baseline profile, Main profile, High profile
Video Bit Rate
128 Kbps-6144Kbps
U -code
Support
ROI
Up to 8 areas
Video stream
Dual streams
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas per scene
White Balance
Auto/0utdoor/Fine Tune/Sodium Lamp/Locked/Aut02
Digital noise reduction
2D/3D DNR
smart IR
Support
Flip
Normal/ Vertical/ Horizontal/180'/90'CIockwise/90' Anti-clockwise
HLC
Support
BLC
Support
Defog
Digital Defog
EVENTS
Basic Detection
Line Crossing, intrusion(based on human body detection), Motion detection, Smart motion detection, Tampering alarm, Audio Detection
General Function
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Suppression
Support
Sampling Rate
8KHZ
STORAGE
Edge Storage
Micro SD, up to 512GB
Network Storage
ANR,NAS(NFS)
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, pppoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, upnp, HTTP, HTTPS, SMTP, 802.1x, SNMP, Qos, RTMP,SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host
Up to 32 users. 2 user levels: administrator and common user
security
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
INTERFACE
Built-in Mic
support
Network
1 * RJ4510M/100M Base-TX Ethernet
GENERAL
Power
DC PoE (IEEE 802.3af)
Power consumption
Max 2.8W
Power Interface
Ø 5.5mm coaxial power plug
Dimensions (L x W x H)
206 x 73 x 73mm (8.1" x 2.9" x 2.9")
Weight
0.47kg(1.041b)
Material
Graphene + Metal
Working Environment
-300C 60t (-22'F 1400F), Humidity: RH (non-condensing)
Storage Environment
-30T 60t (-22'F 1400F), Humidity: S95% RH (non-condensing)
Surge protection
4KV
Reset button
Support
