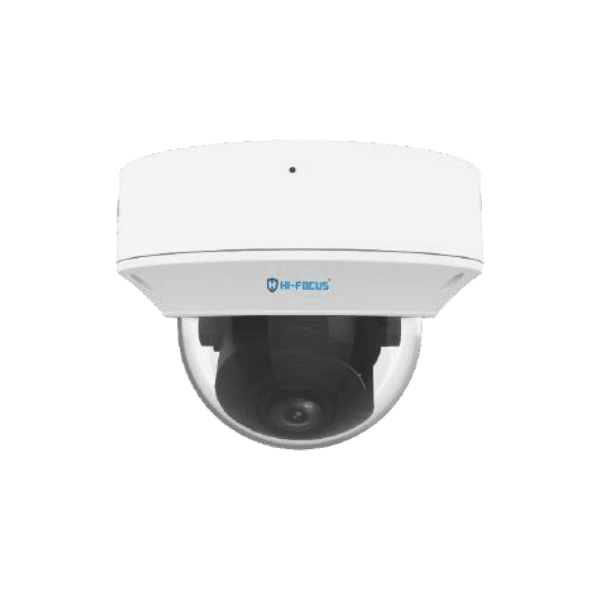

8MP IP DOME CAMERA
HC-IPC-D4215DA-0280
Product Features
- High quality image with 8MP, 1/2.8"CMOS sensor
- 8MP (3840x2160) @20fps; 5MP @25fps;
- 4MP @325fps; 2MP @30/25fps
- Smart H.265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include Line Cross, intrusion, enter
- area, leave area detection
- Light Hunter technology ensures ultra-high image quality in
- low illumination environment
- Built-in Mic / Audio 1CH IN
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 GB Micro SD card
- IP67 Ingress Protection
- IK10 Vandal Resistant
Specifications
- CAMERA
- VIDEO
- SMART
- AUDIO
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.8", 8.0megapixel, Progressive Scan, CMOS
Lens
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Iris
Fixed
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
IR On/Off Control
Auto/Manual
Minimum Illumination
Colour: 0.0025 Lux (F1.6, AGC ON); 0 lux with IR on
IR
Up to 30m(98ft) IR range
WDR
120dB
S/N
>56dB
Digital zoom
16x
Noise Reduction
2D/3D DNR
Angle of View (H)
107.4°~ 29.2°
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Profile 1: 8MP (3840x2160), Max 20fps, 5MP @25 Fps, 4MP@25fps Profile 2: 1080P (1920x1080), Max 30fps; Profile 3: D1 (720x576), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
U-code
Support
Video Stream
Triple streams
9: 16 Corridor Mode
Supported
ROI
Up to 4 areas
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
White balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Dewarping
Support
Smart IR
Support
HLC
Support
BLC
Support
Defog
Digital Defog
SMART
Intelligent Analysis
Line crossing detection, Intrusion detection,
Basic Detection
Motion detection, Tampering alarm
AUDIO
Audio Compression
G.711
Audio Bitrate
64 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
8 KHZ
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS (NFS)
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
INTERFACE
Audio I/O
Input: impedance 35kΩ; amplitude 2V [p-p] / Built-in Mic
Network
1 x RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC 12V ±25%, PoE (IEEE 802.3af) Power consumption: Max 9.0W
Working Environment
-30℃~60℃ (-22°F ~ 140°F) Humidity: ≤95% RH (non-condensing)
Reset Button
Support
Surge Protection
6KV
Ingress Protection
IP67
Vandal Resistant
IK10
