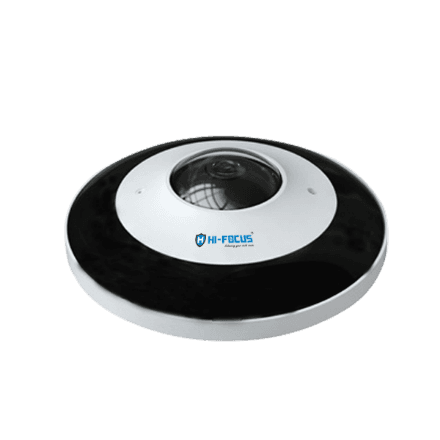

6MP PANAROMIC NETWORK CAMERA
HC-IPC-FE6600N3
Product Features
- 6MP H.265 full real time coding
- Effective pixels: 2160 × 2160
- ICR auto switch, true day / night
- 30m IR night view distance
- 3D DNR, digital WDR, HLC, BLC and ROI coding
- 1CH audio input, 1CH audio output, 1CH built-in MIC
- Built-in micro SD card slot, up to 256GB
- Hardware reset
- 1CH alarm input; 1CH alarm output
- DC12V/PoE power supply
- Support smart phone, iPad, remote monitoring
- IP67 ingress protection
Specifications
- CAMERA
- VIDEO
- IMAGE
- INTERFACES
- FUNCTION
- OTHERS
CAMERA
Image sensor
1/2.9", 6MP progressive scan CMOS
Effective Pixels
2160 x 2160
Electronic Shutter
1/25 s ~ 1 / 100000 s
Min. Illumination
0.068lux@F2.0, AGC ON: 0 lux with IR
Lens
1.07mm @F2.5, horizontal field of view : 180 (wall mounting) 360 (celling mounting)
Day & Night
ICR
Wide Dynamic Range
Digital WDR
BLC
Yes
HLC
Yes
Digital NR
3D DNR
Slow Shutter
Yes
VIDEO
Video Compression
H.265 / H.264 / MJPEG
Encoding Type
VBR (five levels adjustable) / CBR
Smart Encoding
Support low bit rate, low delay: support ROI coding & SVC technology: Support self-adapative
Bit Rate
128 kbps~16 Mbps
Audio Compression
G711A/U
Audio Bit Rate
8kbps~48 kbpa
Main Stream
Fisheye+panorama+3 PTZ 50Hz: 25fps@(2160 × 2160/1920×1920/1440×1440),25fps@(1920 × 1080), 25fps@(960× 540)*3 60Hz: 30fps@(2160 × 2160/1920×1920/1440×1440),30fps@(1920 × 1080), 30fps@(960× 540)*3 50Hz: 25fps@(2160 × 2160/1920×1920/1440×1440),25fps@(960× 540)*4 60Hz: 30fps@(2160 × 2160 / 1920 x 1920/ 1440 x 1440) 30fps@(960× 540)*4
Max Image Size
2160 x 2160
ROI
Each ROI to be configured separately
Privacy Mask
4 areas
Image settings
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc
INTERFACES
Network
1 RJ45 10M/100M Base-TX Ethernet
Video Output
CVBS output (BNC x 1)
Audio
1CH Audio Input: 1CH Audio Output: 1CH Built-in MIC
Storage
Built-in micro SD card slot: up to 128GB
Hardware Reset
Yes
Alarm
1CH alarm input: 1CH alarm output
RS 485
Yes
FUNCTION
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, HTTP
Interface Protocol
ONVIF (Profile S,G)
Storage
Network remote storage; micro SD card storage
Smart Alarm
Motion detection; Sensor alarm
General function
Watermark, IP address filtering, video mask
IR Distance
30m
Ingress Protection
IP67
OTHERS
Power Supply
DC12V/PoE
Power Consumption
< 12W
Weight
Approx 0.4KG
Dimensions( mm )
130 x 41
Installation
Ceiling mounting (wall mounting available with the junction box and bracket)
