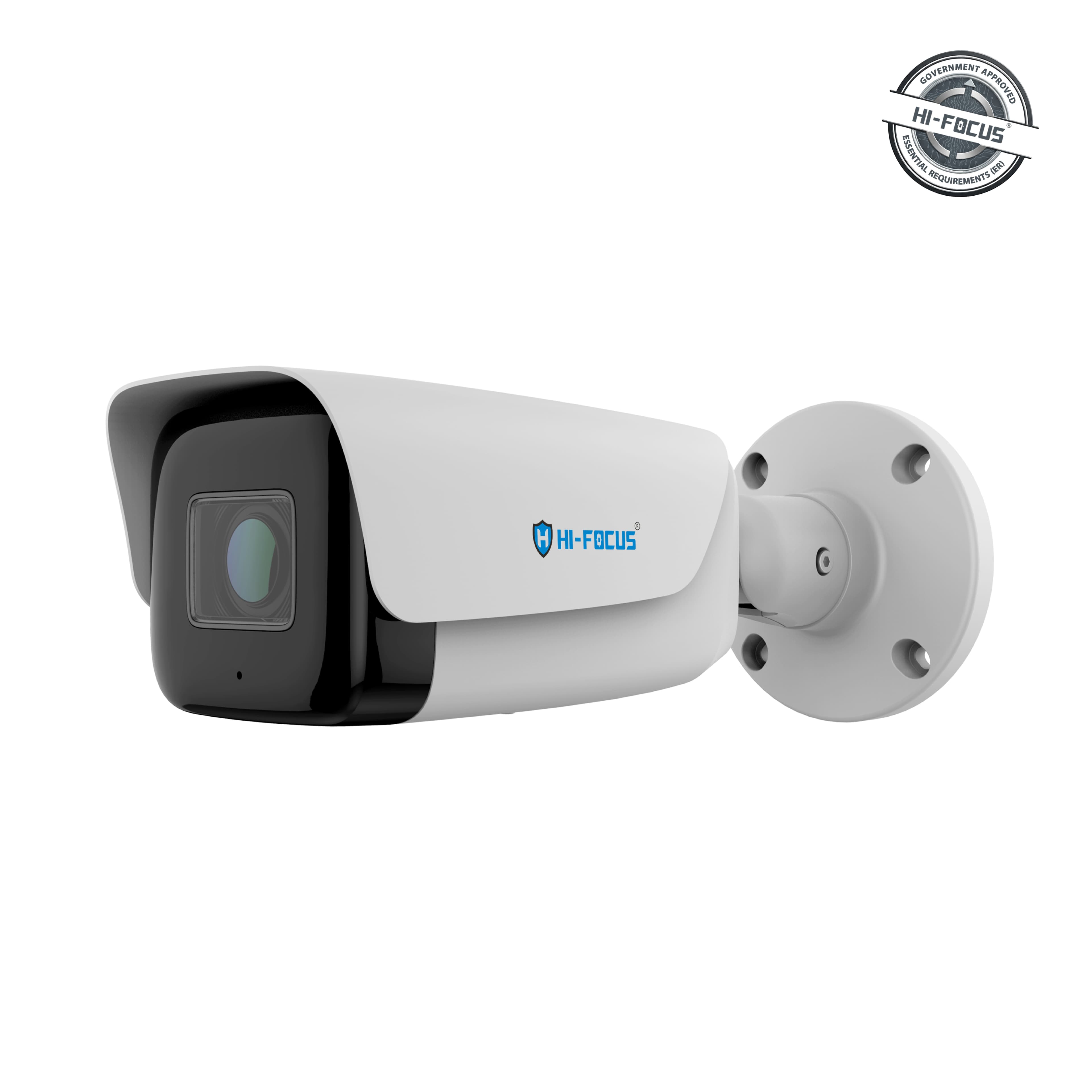

2MP VANDAL BULLET MVF NETWORK CAMERA
HC-IPC-TI4312DVZK-N8-O
Product Features
- Built with a rugged, vandal-resistant housing, it ensures durability and long-term performance. Ideal for commercial buildings, retail spaces, offices, and public areas, it offers a reliable and secure surveillance solution tailored for modern security needs
Specifications
- CAMERA
- VIDEO
- INTELLIGENT ANALYSIS
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA
Image Sensor
1/2.8"CMOS Starvis Sony Image Sensor
Minimum illumination
Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Speed
1s-1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
upto 80m
Wave length
850nm
WDR
120dB
S/N
>42dB
Focal Length
2.7-13.5mm
Aperture Range
F1.6, Fixed
Aperture Type
Motorized
Field of View
102.9° -31.4°
DORI Distance
Detect:38.5m~165.5m Observe:15m~65.5m Recognize:7.5m~33m Identify:3.5m~16.5m
Optical Zoom
5x
Digital Zoom
16x
VIDEO
Video Compression
Smart H.265/ H.265/H.264B/H.264M/ H.264H/Motion JPEG
Video Bit Rate
32k-16Mbps
Audio Compression
G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate
8kHz/32kHz/48kHz
Max. Resolution
1920 x 1080@30fps
Main Stream
PAL 25 Fps: 1920 x 1080 @25fps, 1280 x 720NTSC 30 Fps: 1920 x 1080 @30fps, 1280 x 720
Sub Stream
PAL 25 Fps: 1280x 720, 4CIF(704x 576) NTSC 30 Fps: 1280x 720, 4CIF(704x 576)
Third Stream
PAL 25 Fps: 1280 x720, 4CIF(704x 576) NTSC 30 Fps: 2CIF(704x 288), CIF( 352x 288), 640x 360, 4CIF( 704x 576)
Fourth Stream
PAL 25 Fps: 2CIF(704x 288), CIF ( 352x 288), 640x 360, 4CIF( 704x 576) NTSC 25 Fps: 2CIF(704x 288), CIF ( 352x 288), 640x 360, 4CIF ( 704x 576) @30fps
BLC
Supported
HLC
Supported
AGC
Supported
3DNR
Supported
White Balance
Auto/Semi-auto/Manual/Sunny/ Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
ROI
8 regions
OSD
5regions; 16x16/32x32/48x48/64x64/ 96x96
Defog
Supported
Privacy Mask
4 regions
INTELLIGENT ANALYSIS
Basic Event
Human/Vehicle Classification, Tripwire, Double Tripwire, Object Abandon, Object Lost, Heatmap, Loitering, Running, Parking, People Counting, Crowed, Safety Helmet Detection, On Duty Detection, Video Abnormal, Audio Abnormal
Face Recognize
Face Capture, Detects up to 16 faces at the same scene
Smart Detection
Supports human and vehicle classification, n, Face Capture for Smart Alerts
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs,account lockout, syslog, video encryption, I P/MAC filtering, HTTPS, trusted upgrade,trusted boot
INTERFACE
Network interface
1 RJ45 10M/ 100M self adaptive Ethernet port
Audio
1channel in, 1channel out
Built-in Mic
Supported
Alarm
2channel in, 3mA, 3.3VDC, 1channel out 1A, 24VDC
Reset Button
Supported
Additional Interfaces
RS-485
NETWORK
ANR
Yes
Protocols
HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, DHCP, DNS, DDNS, Easy DDNS, NTP, SMTP, SSL, 802.1X, QoS, IPv4, IPv6, PPPOE, Unicast, Multicast, RTCP, ARP, RTP, SRTP, RTSP, FTP, SFTP, NAS
System Compatibility
ONVIF Profile S/T/G/M, SDK, CGI, Milestone, RTMP
Remote Connection
≤7
Client
HF Prime VMS
GENERAL
Operating Temperature
-40°C~65°C(-40°F~149°F)
Operating Humidity
≤95%RH
Storage Temperature
-40°C~65°C(-40°F~149°F)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
DC12V±25%, MAX 7W; POE 802.3at, MAX 8W
Ingress Protection
Surge protection 4000V, ESD6000V, IP67
Vandal Resistance
IK10
Certification
MTBF Certificate from STQC, EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Boundary Dimensions
265(L)105(W)105(H)mm
Package Dimensions
360(L)150(W)170(H)mmV
Gross Weight
1.16kg
