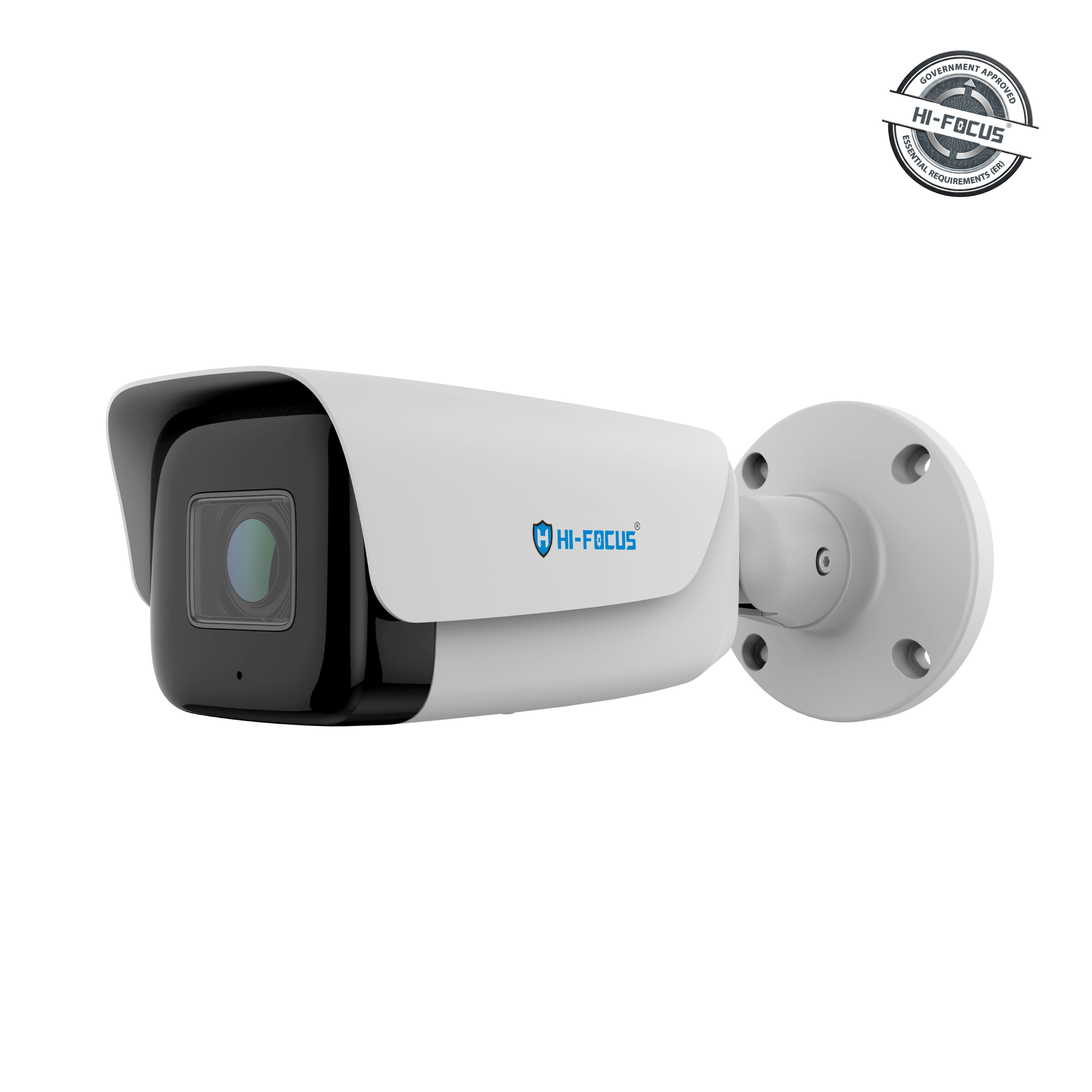

5MP VANDAL BULLET MVF NETWORK CAMERA
HC-IPC-TI4315DVZK-N8-O
Product Features
- Built with a rugged, vandal-resistant housing, it ensures durability and long-term performance. Ideal for commercial buildings, retail spaces, offices, and public areas, it offers a reliable and secure surveillance solution tailored for modern security needs
Specifications
- CAMERA
- VIDEO
- INTELLIGENT ANALYSIS
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA
Image Sensor
1/2.7"Progressive Scan CMOS
Minimum illumination
Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Speed
1s-1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
upto 80m
Wave length
850nm
WDR
120dB
S/N
>39dB
Focal Length
2.7-13.5mm
Aperture Range
F1.6, Fixed
Aperture Type
Motorized
Field of View
98.3°-32.2°
Optical Zoom
5x
DORI Distance
Detect:56m~240m Observe:22m~95m Recognize:11m~48m Identify:5.6m~24m
Digital Zoom
16x
VIDEO
Video Compression
Smart H.265/ H.265/H.264B/H.264M/ H.264H/Motion JPEG
Video Bit Rate
32k-16Mbps
Audio Compression
G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate
8kHz/32kHz/48kHz
Main Stream
PAL 25Fps: 5MP (2592x1944), 4MP (2592x1520), 1440P (2560x1440), 3MP (2304x1296), 50 Fps: 1080P (1920x1080) ,720P (1280x720) NTSC 30Fps: 5MP (2592x1944), 4MP (2592x1520), 1440P (2560x1440), 3MP (2304x1296), 60 Fps: 1080P (1920x1080),720P (1280x720)
Sub Stream
PAL 25Fps: 1080P (1920x1080), 720P (1280x720), 4CIF(704x576) NTSC 30Fps: 1080P (1920x1080), 720P (1280x720), 4CIF(704x576)
Third Stream
PAL 25Fps: 1080P (1920x1080), 720P (1280x720), 4CIF(704x576) NTSC 30Fps: 1080P (1920x1080), 720P (1280x720), 4CIF(704x576)
Fourth Stream
PAL 25Fps: 4CIF (704x576), 2CIF (704x288), 640x360, CIF (352x288) NTSC 30Fps: 4CIF (704x576), 2CIF (704x288), 640x360, CIF (352x288)
BLC
Supported
HLC
Supported
AGC
Supported
3DNR
Supported
White Balance
Auto/Semi-auto/Manual/Sunny/ Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
ROI
8 regions
OSD
5 regions; 16x16/32x32/48x48/64x64 96x96
Defog
Supported
Privacy Mask
4 regions
INTELLIGENT ANALYSIS
Basic Event
Human/Vehicle Classification, Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Heatmap, Loitering, Running, Parking ,Video Abnormal, Audio Abnormal, People Counting, Crowd, Safety Helmet Detection, On Duty Detection Video Abnormal, Audio Abnormal
Face Recognize
Detect up to 32 faces at the same scene; Capture up to 16 faces at the same scene
Smart Detection
Human & vehicle classification plus face capture for smarter alerts
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade,trusted boot
INTERFACE
Network Interface
1 RJ45 10M/ 100M self adaptive Ethernet port
Audio
1channel in, 1channel out
Built-in Mic
Supported
Alarm
2channel in, 3mA, 3.3VDC, 1channel out, 1A, 24VDC
Reset Button
Supported (built-in)
On-Board Storage
Built-in Micro SD card slot, up to 512 GB
Additional Interfaces
RS-485
NETWORK
ANR
Yes
Protocols
HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, DHCP, DNS, DDNS, EasyDDNS, NTP, SMTP, SSL, 802.1X, QoS, IPv4, IPv6, PPPOE, Unicast, Multicast, RTCP, ARP, RTP, SRTP, RTSP, FTP, SFTP, NAS
System Compatibility
ONVIF Profile S/T/G/M, SDK,CGI, Milestone, RTMP
Remote Connection
≤7
Client
HF Prime VMS
GENERAL
Operating Temperature
-40°C~65°C(-40°F~149°F)
Operating Humidity
≤95%RH
Storage Temperature
-40°C~65°C(-40°F~149°F)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
DC12V±25%, MAX 9.5W; POE 802.3at, MAX 10.5W
Ingress Protection
Surge protection 4000V, ESD6000V, IP67
Vandal R IK10 Certificationesistance
IK10
Certification
MTBF Certificate from STQC, EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Boundary Dimensions
265(L)105(W)105(H)mm
Package Dimensions
360(L)150(W)170(H)mm
Gross Weight
1.6kg
