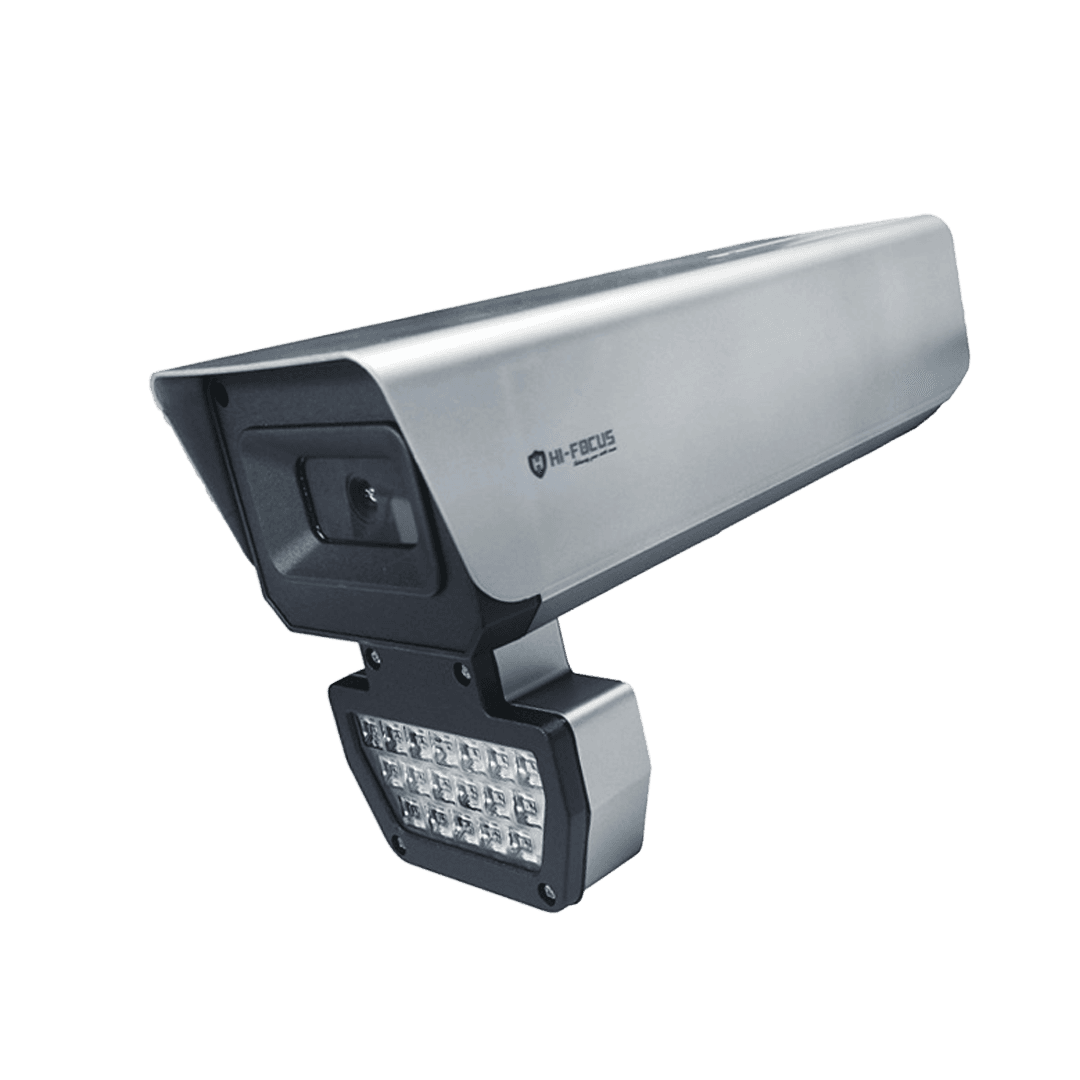

5MP IP BULLET CAMERA
HC-IPC-TQA4515-0600-DLS
Product Features
- 6mm Fixed Lens
- Day/night func onality
- Max. resolu on: 3MP 2304x1296
- ICR auto switch, true day / night,
- Support IR 30m White Light and 80m Smart IR
- 3D DNR, Digital WDR, HLC, BLC, Defog
- PoE Power Supply
- Built-in mic and Speaker
- IP67IngressProtec on
Specifications
- CAMERA
- LENS
- IMAGE
- FUNCTIONS
- INTERFACE
- ELECTRICAL
- ENVIRONMENTAL
CAMERA
Image Sensor
1/2.9” CMOS
Effective Pixels
2592×1944
Electronic Shutter Speed
Auto/Manual, 1/6~1/10,000 s
Min.Illumination
Colour: 0.012 Lux (F1.6, AGC ON) 0 Lux with IR
Iris Type
Fixed Iris
LENS
Lens
6mm Fixed Lens
Lens Mount
M12
Wide Dynamic Range
Digital WDR
Digital NR
2D/3D DNR
Angle Adjustment
Pan: 0°~360°; Tilt:0°~75°; Rota on: 0°~360°
Video Compression
Smart H.265, H.264, MJPEG
H.265 Compression Standard
Main Pro le @Leve4.1 High Tier
Resolution
5MP(2592×1944)4MP(2560x1440), 3MP(2307 x 1296), 1080P(1920 x 1080), 720P (1280 x 720),D1(480 x 240), CIF
Main Stream
60Hz: 3MP/1080P/720P(1~30fps) 50Hz : 3MP/1080P/720P(1~25fps)
Bit Rate Type
VBR/CBR
Image Settings
Satura on, Brightness, Chroma, Contrast Wide Dynamics, Sharpen, NR, etc. adjustable through Client So ar 6mm Fixed Lens e or Web browser
FUNCTIONS
Remote Monitoring
Web Browsing, CMS Remote Control
Online Connection
Support Simultaneous monitoring for upto 4 users support simultaneous monitoring for upto 4 users
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS Storage
Audio
Built-in Mic and speaker
Smart Alarm
Motion detction
IR Distance
Support IR 30m White Light and 80m Smart IR
PoE
Supported
INTERFACE
Network
1 RJ45 10/100 Base-TX Ethernet
ELECTRICAL
Power Supply
DC 12V, PoE
Power Consumption
< 5W
ENVIRONMENTAL
Opera ng Conditions
-20°C ~ 55°C (-4°F~131°F) Humidity
Ingress Protection
IP67
