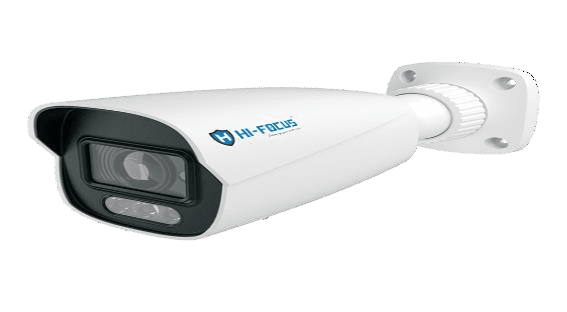

4MP BULLET MOTORIZED VARIFOCAL NETWORK CAMERA
HC-IPC-TS4401MVFN5-DL
Product Features
- H.265+/H.265 /H.264+/H.264/MJPEG coding
- Max. resolution: (2560 × 1440)
- ICR auto switch, true day / night vision
- 30m white light view distance; 50m IR view distance
- 3D DNR,DWDR, HLC, BLC, etc
- Support Dual streams
- DC12V/PoE power supply
- Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
- IP67 Ingress Protection
Specifications
- CAMERA
- VIDEO
- INTERFACE
- FUNCTIONS
- GENERAL
CAMERA
Sensor
1/3", Progressive scan, 4.0megapixel, CMOS
Lens
2.8~12mm @F1.4 Motorized Zoom Lens
Angle of view(H)
92.5° ~34°
Shutter Speed
1/2 s ~ 1/100000 s
Day/Night
IR-cut filter with auto switch (ICR)
Min. Illumination
0.03 lux @F1.4, AGC ON; 0 lux with IR
WDR
Digital WDR
Digital NR
Supported
HLC
Supported
BLC
Supported
Angle Adjustment
Pan: 0°~360°; Tilt:0°~90°;Rotation: 0°~360°
VIDEO
Video Compression
H.265+(Smart H.265), H.265, H.264, MJPEG
H.265 Compression Standard
Main Profile@Leve4.1 High Tier
Resolution
4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF
Main Stream
4MP/3MP/1080P/720P(1~30fps)
Sub Stream
D1/VGA/CIF (1~30fps)
Video Bit Rate
64Kbps~3Mbps
Bit Rate Type
VBR / CBR
Audio Compression
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser
ROI
Each ROI to be configured separately
INTERFACE
Network
1 RJ45 10M/100M Base-TX Ethernet
Audio
1CH Built-in -Mic
FUNCTIONS
Remote Monitoring
Web browser /NVR/NVMS2.X/Mobile APP
Online Connection
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Network Protocol
TCP/IP, UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS
Interface Protocol
ONVIF (Profile S, G, T)
Storage
Network remote storage
Smart Alarm
Motion detection
General Function
Watermark, IP address filtering, video mask, heartbeat, illegal login lock
PoE
Supported
Supplement Light Range
IR range: 50 m; white light range: 30 m
GENERAL
Power
DC12V/PoE Power consumption: < 8W
Working Environment
-30°C ~ 60°C ,(-22°F~140°F) less than 95%(non-condensing)
Ingress Protection
IP67
Dimensions (mm)
217.7 × 80.5 × 80.3
