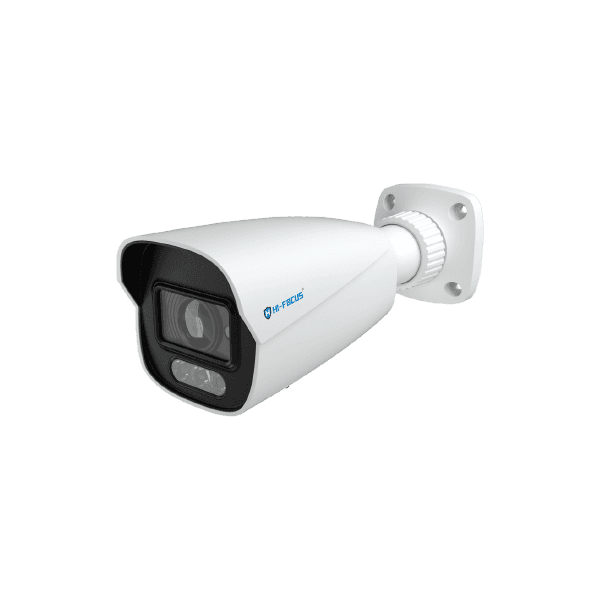

6MP BULLET ACTIVE DETERRENCE CAMERA
HC-IPC-TS6601N5-AL
Product Features
- H.265+/H265/H.264+/H264/ MJPEG coding
- Max. resolution: 6MP (3200 × 1800)
- Auto day/night switch
- 3D DNR, HWDR, HLC, BLC, etc.
- ROI coding
- Support smart supplement light
- 50m IR
- DC12V/PoE power supply
- Support three streams
- Support P2P function
- Support SMD
- Support Intelligent Analysis
- Blue and red light warning
- Support user-defined warning voice import
- Dual-system backup
- IP66 Ingress Protection
Specifications
- CAMERA
- VIDEO
- INTERFACES
- FUNCTIONS
- GENERAL
CAMERA
Image Sensor
1 / 2.39"CMOS
Image Size
3200×1800
Electronic Shutter
1/3s ~ 1 / 100000s
Iris Type
Fixed Iris
Min. Illumination
Color: 0.02 lux @F1.6, AGC ON; B&W: 0 lux with illumination on
Lens
2.8mm@F1.6, Horizontal FoV: 104°; Vertical FoV:55°; Diagonal FoV:128° 3.6mm@F1.6, Horizontal FoV:78°; Vertical FoV:38°; Diagonal FoV:94°
Focus
Fixed
Lens Mount
M12
Day/Night
Auto, Day, Night, Timing
Wide Dynamic Range
120dB
BLC
Yes
HLC
Yes
Defog
Yes
Digital NR
3D DNR
S/N Ratio
≥50dB
Angle Adjustment
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°
VIDEO
Video Compression
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard
Main Profile@Leve4.1 High Tier
Resolution
6MP (3200×1800), 4MP (2688×1520), 2K (2560×1440), 1080P (1920 × 1080), 720P (1280 × 720), D1, VGA (640 × 480), 640 × 360, CIF, 480 × 240
Main Stream
60Hz: 6MP(1~20fps)/4MP/2K/1080P(1~30fps); 50Hz: 6MP(1~20fps)/4MP/2K/1080P(1~25fps)
Sub Stream
60Hz: 720P/D1/VGA/640 × 360/480× 240/CIF(1~30fps); 50Hz: 720P/D1/VGA/640 × 360/480× 240/CIF(1~25fps))
Third Stream
60Hz: D1/480× 240/CIF (1~30fps); 50Hz: D1/480× 240/CIF(1~25fps)
Bit Rate
64 Kbps ~ 8 Mbps
Bit Rate Type
VBR / CBR
Audio Compression
G711A / U
Image Settings
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, image flip, image mirror, NR, etc. adjustable through client software or web browser
Audio Compression
G.711A/U
ROI
Each ROI to be configured separately
INTERFACES
Network
RJ45
Audio
1CH audio input; 1CH built-in MIC; 1CH audio output; 1CH built-in speaker
Storage
Built-in micro SD card slot, up to 256GB
Reset
Supported
FUNCTIONS
Remote Monitoring
Web Browser/NVR/mobile APP
Online Connection
Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission
Network Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS
Interface Protocol
ONVIF
Storage
Network remote storage; micro SD card storage
Intelligent Analytics
Intelligent Analytics
General Function
Watermark, IP address filtering, video mask, heartbeat, smart supplement light, corridor pattern, ANR, system disarming, cloud upgrade
PoE
Supported, IEEE802.3af
GENERAL
Power Supply
DC12V/PoE
Power Consumption
< 11.5W
Storage Conditions
- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non- condensing)
Operating Condition
- 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95% (non- condensing)
Ingress Protection
IP66
