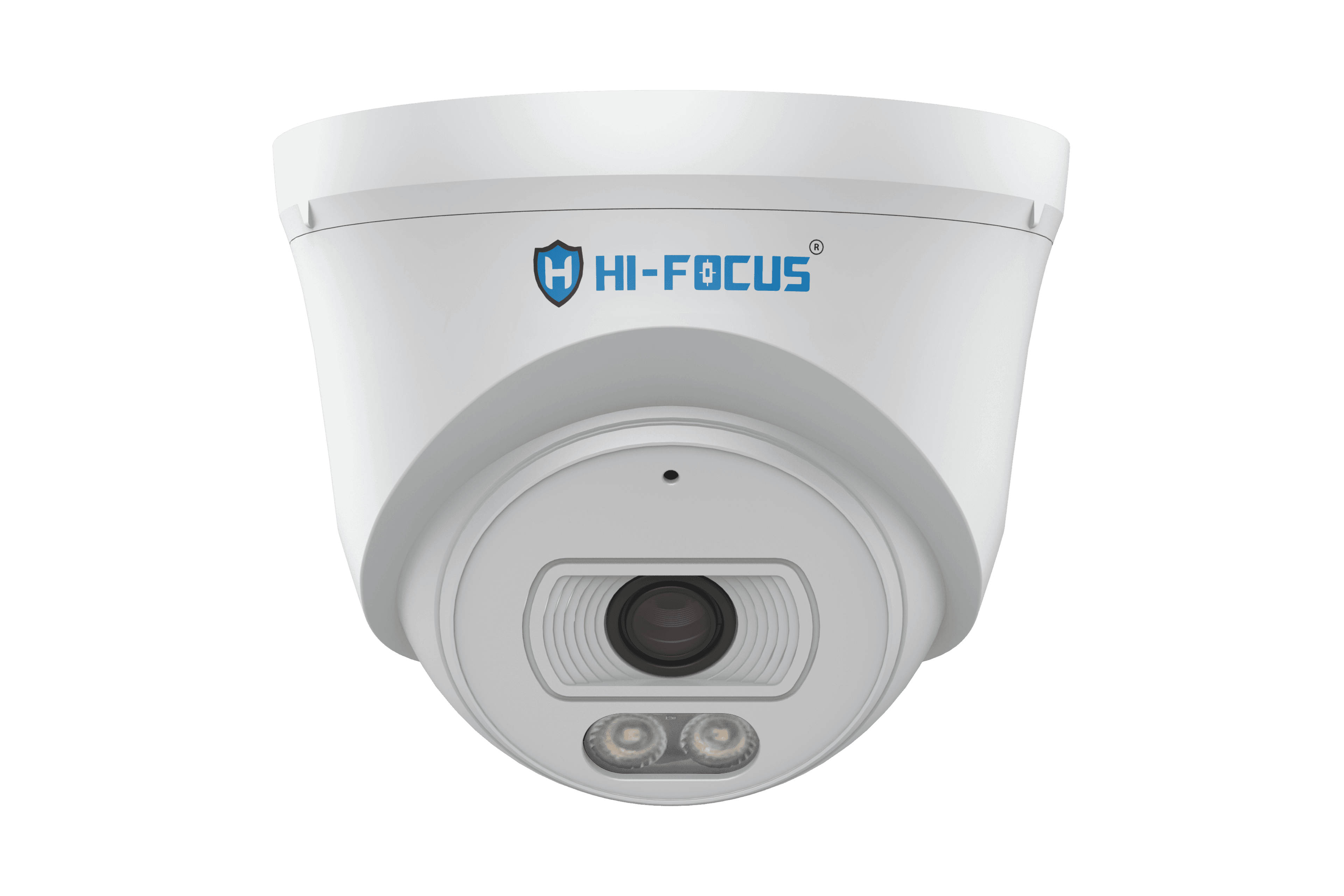

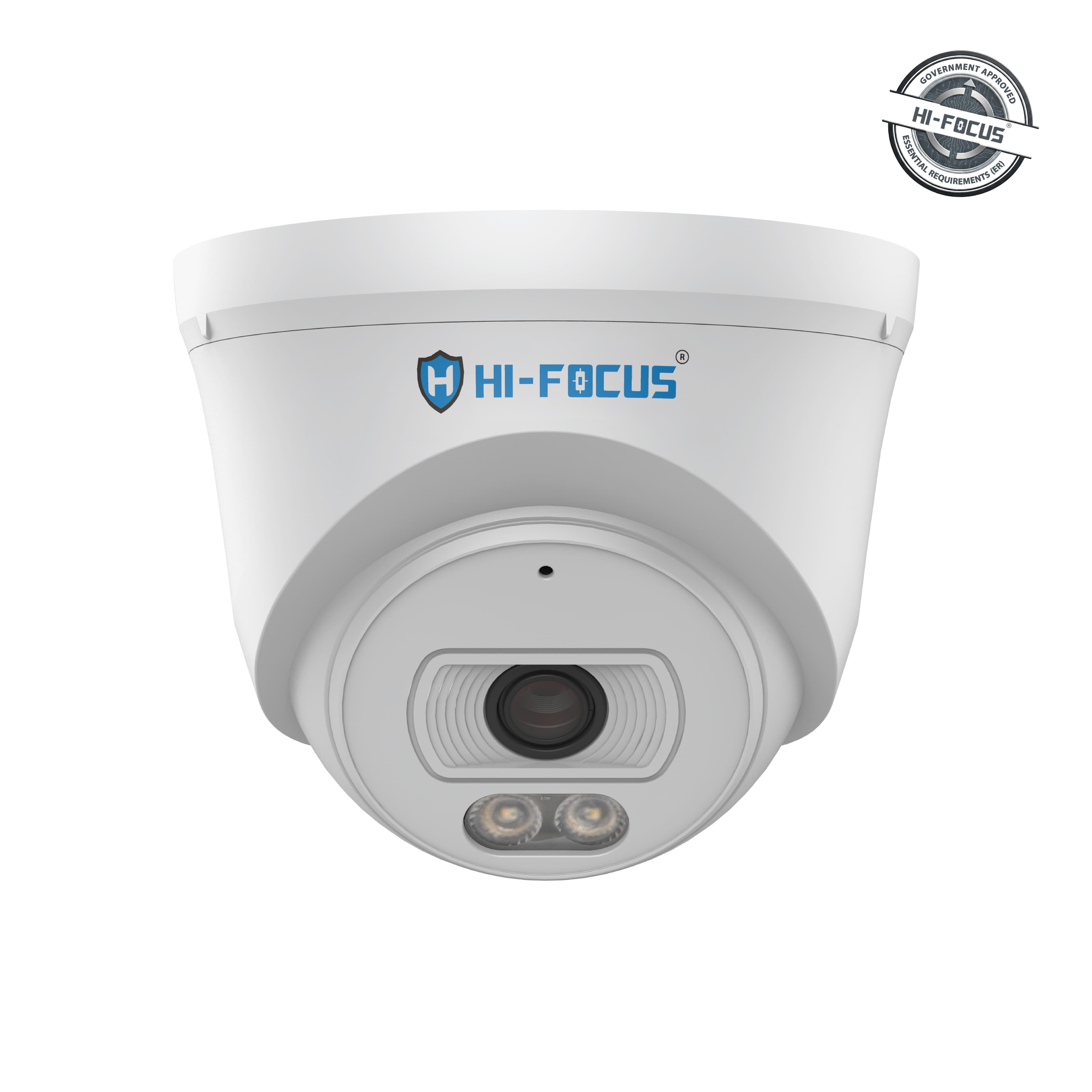

2 MP DOME NETWORK CAMERA
HIPC-D3022E-I2
Product Features
- 2MP Dome IP Camera delivers clear Full HD video with smart IR and white light for reliable day and night monitoring. Built-in mic, intelligent detection, and efficient H.265 compression enhance security performance, while the IP66-rated design ensures dependable surveillance.
Specifications
- CAMERA
- VIDEO
- INTELLIGENT ANALYSIS
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA
Image Sensor
1/2.8"CMOS Starvis Sony Image Sensor
Minimum illumination
Color: 0.02Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Speed
1s-1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
upto 30m
Wave length
850nm
WDR
120dB
S/N
>39dB
Focal Length
4mm
Aperture Range
F2.0
Aperture Type
Fixed
Digital Zoom
16x
VIDEO
Video Compression
Smart H.265/H.265/H.264B/ H.264M/H.264H
Video Bit Rate
32k~16Mbps
Audio Compression
G.711A/G.711U/ADPCM_D
Audio Sampling Rate
8kHz/32kHz/48kHz
Max. Resolution
2MP, 1920× 1080@30fps
Main Stream
PAL:25fps (1920× 1080, 1280× 720, 640× 480, 704× 576) NTSC:30fps (1920× 1080, 1280× 720, 640× 480, 704× 480)
Sub Stream
PAL:25fps (704× 576, 704× 288, 640× 360, 352× 288) NTSC: 30fps (704× 480, 704× 240, 640× 360, 352× 240)
BLC
Supported
HLC
Supported
AGC
Supported
3DNR
Supported
White Balance
Auto/ Semi-auto/ Manual/ Sunny/ Natural light/ Warm light/ Sodium lamp/ Incandescent lamp/ Locked white balance
ROI
8 regions
OSD
3 regions; 16x16/32x32/48x48
Defog
Supported
Privacy Mask
4 regions
INTELLIGENT ANALYSIS
Basic Event
Tripwire, Perimeter, Motion Detection, Mask Alarm, IP Address Conflict, Network Disconnection, Trigger Warmlight, Trigger Capture
Rules of Behavior Analyse In 1 Scene
2
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs,account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade,trusted boot
INTERFACE
Network Interface
1 RJ45 10M/ 100M self adaptive Ethernet port
Built-in Mic
Supported
NETWORK
Protocols
RTSP, HTTP, HTTPS, TCP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4, SSH, Unicast, FTP
System Compatibility
ONVIF (Profile S/T), SDK, CGI
Remote Connection
≤2
GENERAL
Operating Temperature
-30°C~60°C(-22°F~140°F)
Operating Humidity
≤95%RH
Storage Temperature
-30°C~60°C(-22°F~140°F)
Storage Humidity
≤95%RH
Power Supply
PoE: IEEE 802.3af, Max. 7W
Ingress Protection
Surge protection 4000V, ESD6000V, IP66
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Package Dimensions
140(L)140(W)120(H)mm
Gross Weight
0.42Kg
