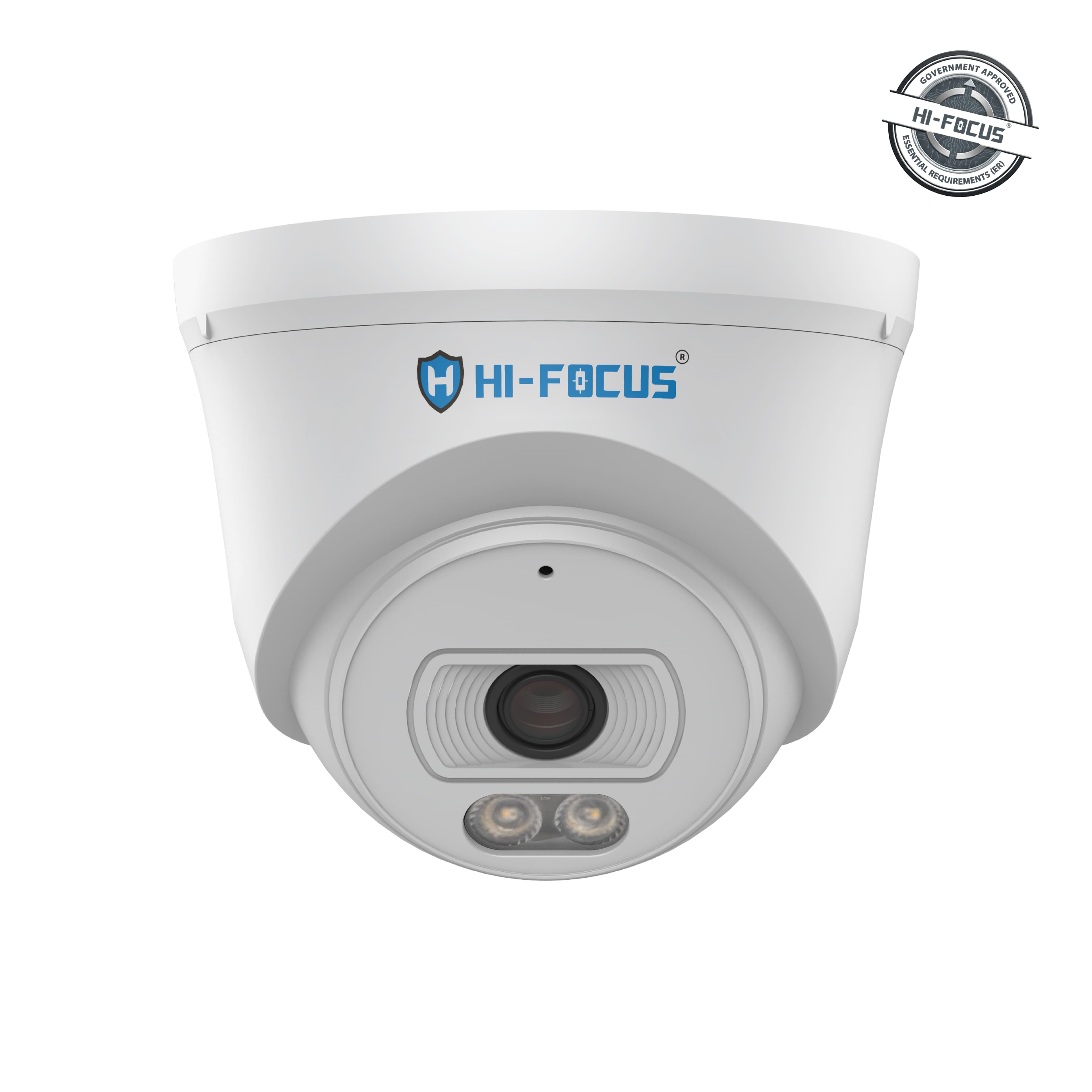

4 MP DOME NETWORK CAMERA
HIPC-D3024-DL-I2
Product Features
- 4MP Dome IP Camera delivers ultra-HD video with 30m smart IR and 15m white light for clear day and night monitoring. Built-in mic, intelligent detection, H.265 compression enhance security. Its IP66-rated housing with DC/PoE support ensures reliable surveillance
Specifications
- CAMERA
- VIDEO
- INTELLIGENT ANALYSIS
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA
Image Sensor
1/2.7"CMOS
Minimum illumination
Color: 0.02Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Speed
1s-1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
upto 30m
Wave length
850nm
WDR
DWDR
S/N
>39dB
Focal Length
2.8mm
Aperture Range
F2.0
Aperture Type
F1.6
Digital Zoom
16x
VIDEO
Video Compression
Smart H.265/H.265/H.264B/ H.264M/H.264H
Video Bit Rate
32k~6Mbps
Audio Compression
G.711A/G.711U/ADPCM_D
Audio Sampling Rate
8kHz/32kHz/48kHz
Max. Resolution
4MP,2688× 1520@30fps
Main Stream
PAL: 25fps (2688× 1520, 2560× 1440, 2304× 1296, 1920× 1080, 1280× 720) NTSC: 30fps (2688× 1520, 2560× 1440, 2304× 1296, 1920× 1080, 1280× 720)
Sub Stream
PAL:25fps (704× 576, 704× 288, 640× 360, 352× 288) NTSC: 30fps (704× 480, 704× 240, 640× 360, 352× 240)
BLC
Supported
HLC
Supported
AGC
Supported
3DNR
Supported
White Balance
Auto/ Semi-auto/ Manual/ Sunny/ Natural light/ Warm light/ Sodium lamp/ Incandescent lamp/ Locked white balance
ROI
8 areas
OSD
4 regions; 16x16/32x32/48x48
Defog
Supported
Privacy Mask
4 areas
INTELLIGENT ANALYSIS
Basic Event
Tripwire, Perimeter, Motion Detection, Mask Alarm, IP Address Conflict, Network Disconnection, Trigger Warmlight, Trigger Capture
Rules of Behavior Analyse In 1 Scene
2
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs,account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade,trusted boot
INTERFACE
Network Interface
1× RJ-45 (10/100 Base-T)
Built-in Mic
Supported
NETWORK
Protocols
RTSP, HTTP, HTTPS, TCP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4, SSH, Unicast, FTP
System Compatibility
ONVIF (Profile S/T), SDK, CGI
Remote Connection
≤2
GENERAL
Operating Temperature
-30°C~60°C(-22°F~140°F)
Operating Humidity
≤95%RH
Storage Temperature
-30°C~60°C(-22°F~140°F)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
DC12V±25%, Max. 6.5W, PoE: IEEE 802.3af, Max. 7W
Ingress Protection
IP67
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Package Dimensions
140(L)140(W)120(H)mm
Gross Weight
0.3Kg
NetWeight
0.25kg
