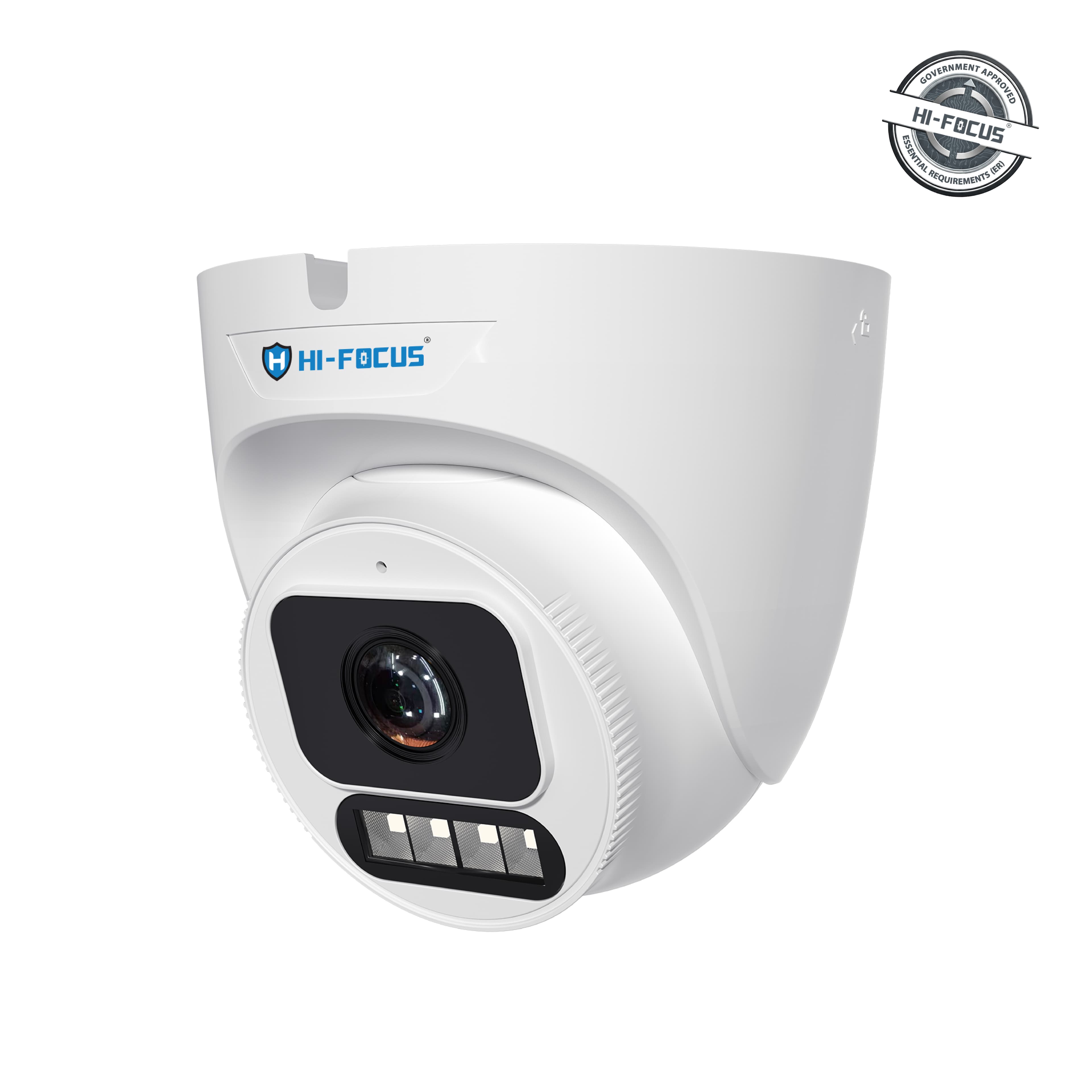

2 MP DOME NETWORK CAMERA
HIPC-D3312-DLS-I2
Product Features
- The 2MP Dome IP Camera with, 40m smart IR and 20m white light and Smart H.265/H.264 compression, this
- camera delivers clear day and night monitoring. Integrated two-way audio, and PoE support enable flexible surveillance. The IP66-rated housing ensures reliable outdoor performance.
Specifications
- CAMERA
- VIDEO
- INTELLIGENT ANALYSIS
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA
Image Sensor
1/2.8"CMOS Image Sensor
Minimum illumination
Color: 0.02Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Speed
1s-1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
upto 40m
Wave length
850nm
WDR
120dB
S/N
>42dB
Focal Length
2.8mm
Aperture Range
F1.6 Fixed
Field of View
102.9°
Digital Zoom
16x
VIDEO
Video Compression
Smart H.265/H.265/H.264B/ H.264M/H.264H
Video Bit Rate
32k~16Mbps
Audio Compression
G.711A/G.711U/ADPCM_D
Audio Sampling Rate
8kHz/32kHz/48kHz
Max. Resolution
1920 x 1080@30fps
Main Stream
PAL:25fps (1920× 1080, 1280× 720, 640× 480, 704× 576) NTSC:30fps (1920× 1080, 1280× 720, 640× 480, 704× 480)
Sub Stream
PAL:25fps (704× 576, 704× 288, 640× 360, 352× 288) NTSC: 30fps (704× 480, 704× 240, 640× 360, 352× 240)
BLC
Supported
HLC
Supported
AGC
Supported
3DNR
Supported
White Balance
Auto/ Semi-auto/ Manual/ Sunny/ Natural light/ Warm light/ Sodium lamp/ Incandescent lamp/ Locked white balance
ROI
8 regions
OSD
3 regions; 16x16/32x32/48x48
Defog
Supported
Privacy Mask
4 regions
INTELLIGENT ANALYSIS
Basic Event
Tripwire, Perimeter, Motion Detection, Mask Alarm, IP Address Conflict, Network Disconnection, Trigger Warmlight, Trigger Capture
Rules of Behavior Analyse In 1 Scene
2
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs,account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade,trusted boot
INTERFACE
Network Interface
1 RJ45 10M/ 100M self adaptive Ethernet port
Built-in Mic
Supported
Speaker
Supported
On-board Storage
Built-in Micro SD card slot, up to 512 GB
NETWORK
Protocols
RTSP, HTTP, HTTPS, TCP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4, SSH, Unicast, FTP
System Compatibility
ONVIF (Profile S/T), SDK, CGI
Remote Connection
≤2
GENERAL
Operating Temperature
-30°C~60°C(-22°F~140°F)
Operating Humidity
≤95%RH
Storage Temperature
-30°C~60°C(-22°F~140°F)
Storage Humidity
≤95%RH
Power Supply
DC12V±25%,Max. 6.5W PoE: IEEE 802.3af, Max. 7W
Ingress Protection
Surge protection 4000V, ESD6000V, IP66
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Package Dimensions
140(L)140(W)120(H)mm
Gross Weight
0.35Kg
