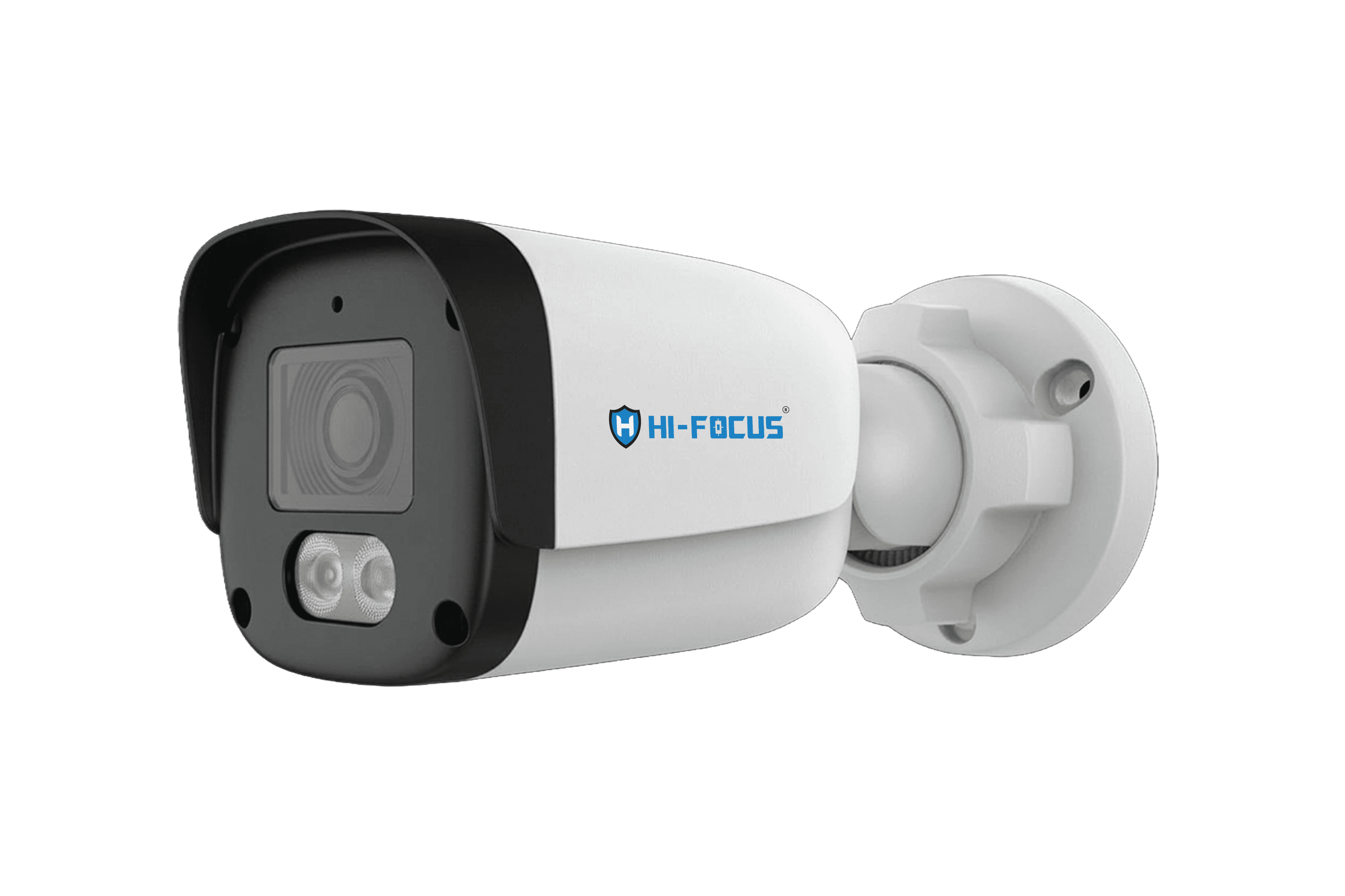

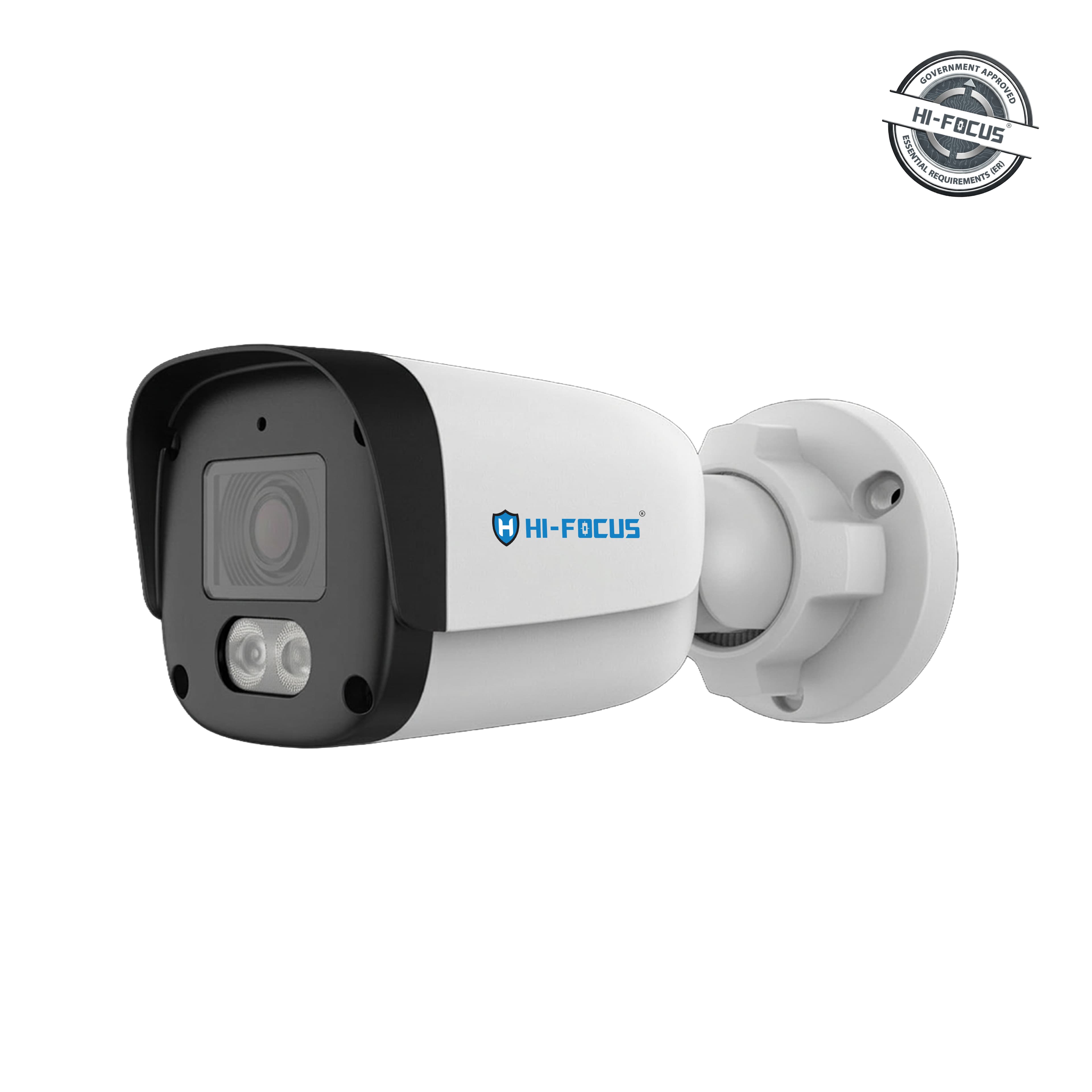

4 MP BULLET NETWORK CAMERA
HIPC-T4024E-I2
Product Features
- 4MP Bullet IP Camera delivers clear ultra-HD video with smart IR up to 50m for day and night monitoring. Built-in mic, intelligent detection, and H.265 compression enhance security performance. Its IP67-rated housing with DC/PoE support ensures dependable outdoor surveillance.
Specifications
- CAMERA
- VIDEO
- INTELLIGENT ANALYSIS
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA
Image Sensor
1/2.8"CMOS
Minimum illumination
Color: 0.02Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Speed
1s-1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
upto 50m
Wave length
850nm
WDR
DWDR
S/N
>39dB
Focal Length
4mm
Aperture Range
F2.0
Aperture Type
Fixed
Digital Zoom
16x
VIDEO
Video Compression
Smart H.265/H.265/H.264B/H.264M/H.264H
Video Bit Rate
32k~6Mbps
Audio Compression
G.711A/G.711U/ADPCM_D
Audio Sampling Rate
8kHz/32kHz/48kHz
Max. Resolution
4MP,2688×1520@30fps
Main Stream
PAL: 25fps (2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC: 30fps (2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream
PAL:25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
BLC
Supported
HLC
Supported
AGC
Supported
3DNR
Supported
White Balance
Auto/Semi-auto/Manual/Sunny/ Natural light/Warm light/Sodium lamp/Incandescent lamp/ Locked white balance
ROI
4 areas
OSD
3 regions; 16x16/32x32/48x48
Defog
Supported
Privacy Mask
4 areas
INTELLIGENT ANALYSIS
Basic Event
Tripwire, Perimeter, Motion Detection, Mask Alarm, IP Address Conflict, Network Disconnection, Trigger Warmlight, Trigger Capture
Rules of Behavior Analyse In 1 Scene
2
SECURITY
Cyber Security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs,account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade,trusted boot
INTERFACE
Network Interface
1×RJ-45 (10/100 Base-T)
Built-in Mic
Supported
NETWORK
Protocols
RTSP, HTTP, HTTPS, TCP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4, SSH, Unicast, FTP
System Compatibility
ONVIF (Profile S/T), SDK, CGI
Remote Connection
≤2
GENERAL
Operating Temperature
-30°C~60°C(-22°F~140°F)
Operating Humidity
≤95%RH
Storage Temperature
-30°C~60°C(-22°F~140°F)
Storage Humidity
10%~95%RH(non-condensing)
Power Supply
PoE: IEEE 802.3af, Max. 7W
Ingress Protection
IP67
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Package Dimensions
215(L)95(W)120(H)mm
Gross Weight
0.47Kg
NetWeight
0.32kg
