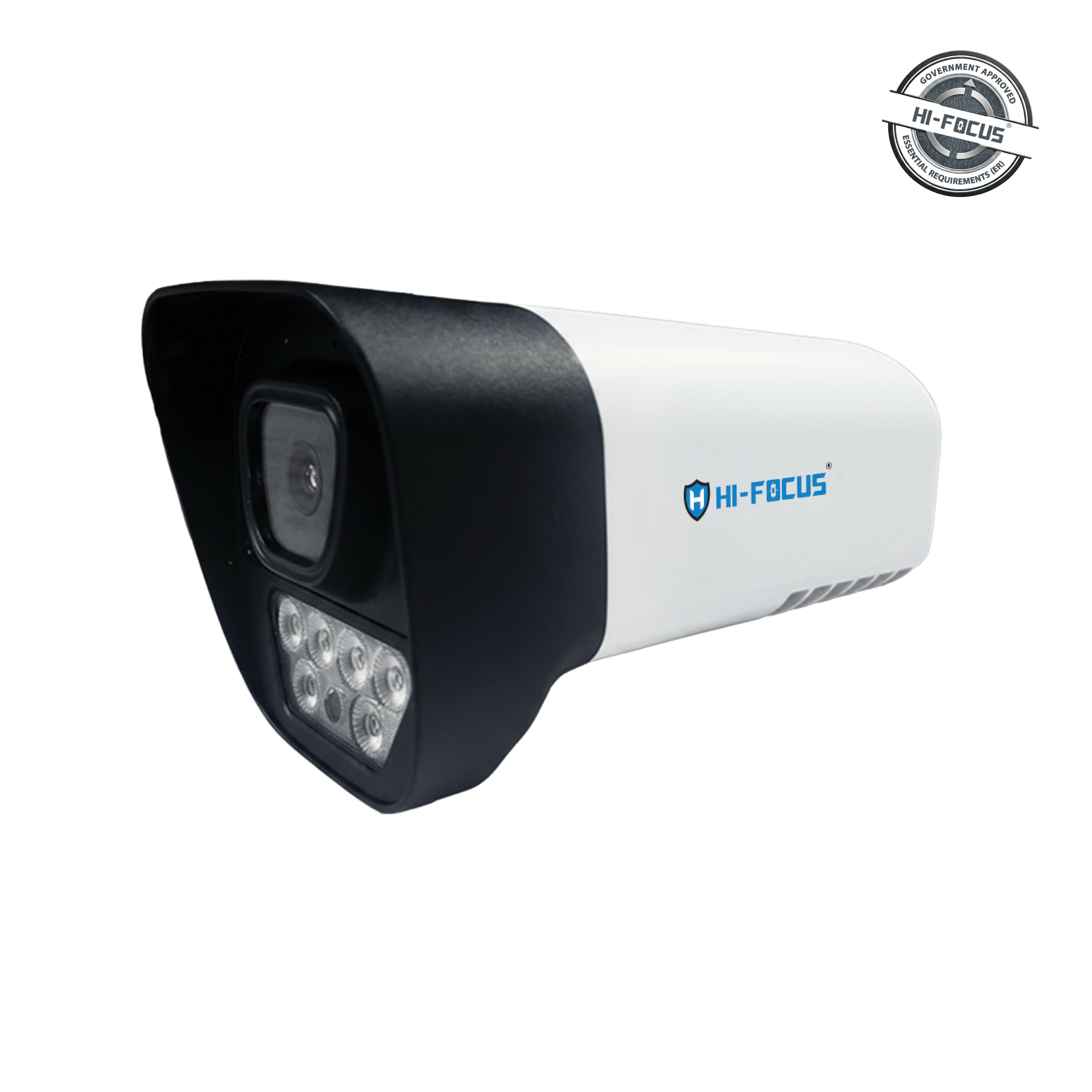

4MP BULLET NETWORK IP CAMERA
HIPC-T4804-DLS-R1
Product Features
- 4MP Bullet IP Camera powered by a CMOS Image sensor delivers clear day/night imaging with long range
- IR and white light. Built-in audio, efficient compression, and strong cybersecurity are housed in a rugged IP67-rated design for reliable outdoor surveillance.
Specifications
- CAMERA
- VIDEO
- SECURITY
- INTERFACE
- NETWORK
- GENERAL
CAMERA
CAMERA Image Sensor
1/3" CMOS Image Sensor
Minimum illumination
Color:0.001Lux@(F1.6,AGC ON), B/W:0Lux with IR
Shutter Speed
1s~1/100000s
Day&Night
IR-cut filter with auto switch (ICR)
Smart IR
Up to 80m
Wave length
850nm
White Light Distance
30m
WDR
DWDR
Focal Length
4mm/6mm
Aperture Range
F1.6
Aperture Type
Fixed
VIDEO
Video Compression
H.265, H.264
Video Bit Rate
128~6144kbps
Audio Compression
G.711U
Max. Resolution
4MP, 2560×1440 @25fps
Main Stream
25fps(2560 x,1440, 2304 x 1296, 1920×1080, 1280×720)
Sub Stream
25fps(704×576, 352×288)
AGC
Supported
3DNR
Supported
ROI
Supported
OSD
4 areas
Privacy Mask
4 areas
SECURITY
Cyber security
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs,account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade,trusted boot
INTERFACE
Network Interface
1×RJ-45 (10/100 Base-T)
Built-in Mic
Supported
Built-in Speaker
Supported
NETWORK
Protocols
TCP, UDP, HTTP, HTTPS, DNS, RTSP, RTMP, DDNS, SMTP, FTP, NTP, DHCP, IGMP, ICMP
User/Host
8 users
Web
IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
GENERAL
Operating Temperature
-30°C~60°C(-22°F~140°F)
Operating Humidity
≤95%RH
Storage Temperature
-30°C~60°C(-22°F~140°F)
Storage Humidity
10%~95%RH(non-condensing)
Ingress Protection
IP67
Certification
EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report, REACH, ESD 4KV, BIS-ER-01, BIS-IS-13252
Power Supply
DC12V±25%, Max. 6.5W PoE: IEEE 802.3af, Max. 7W
Package Dimensions
180(L)90(W)95(H)mm
GrossWeight
0.3Kg
NetWeight
0.25Kg
