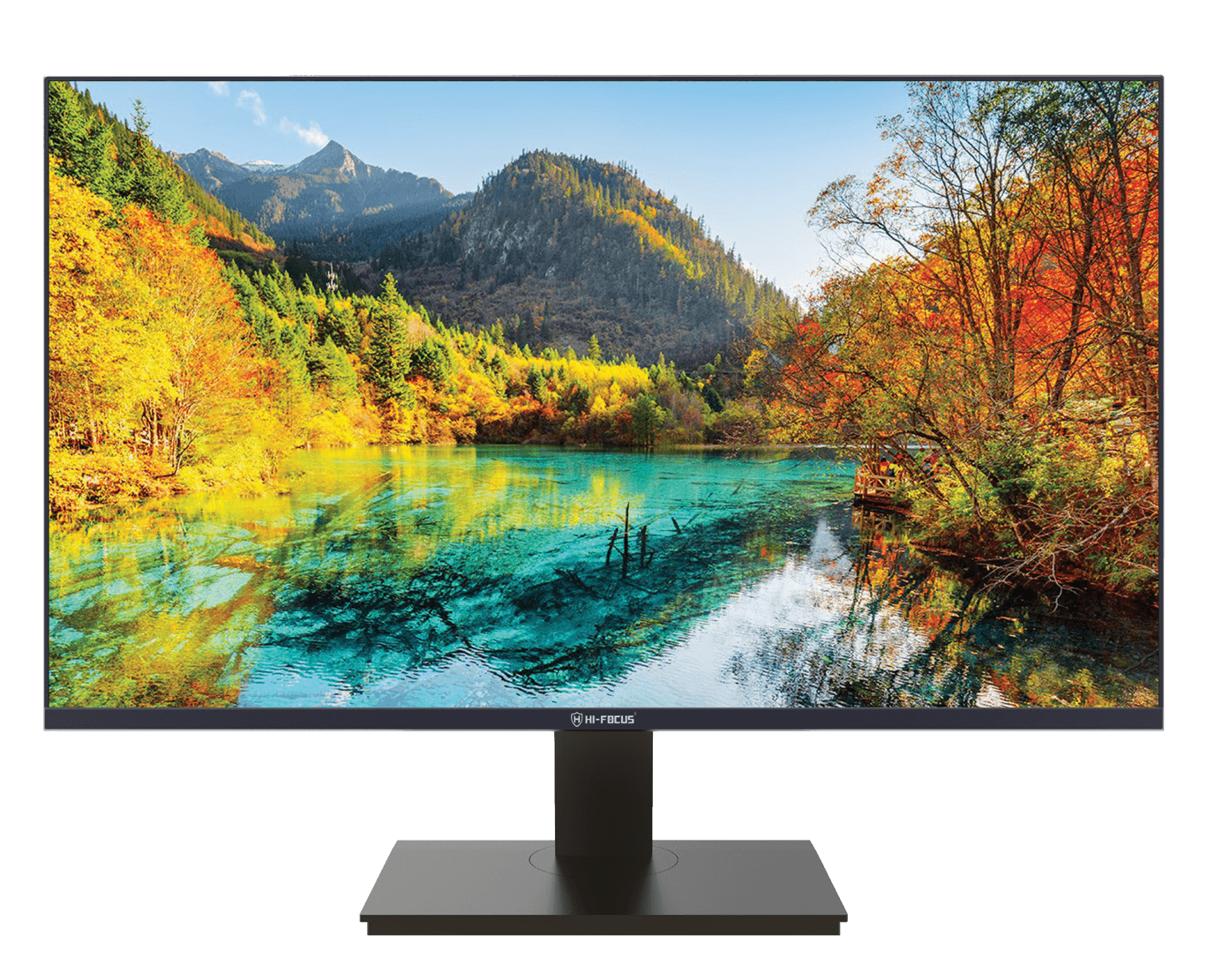

19 INCH LED MONITOR
HF-LED19A
Product Features
- 18.5 Inch Panel size
- 1366*768 Resolution
- 16:9 Ratio
- 5ms Response time
Specifications
- PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Panel size
18.5 Inch
Resolutoion
1366*768
Ratio
16:9
Model size
438(H)*291(V)mm without bracket
Density
0.100(H)x0.300(V)mm
Pixel pitch
0.300(H)x0.300(V)mm
Viewing area
413.4(H)X234.0(V)mm
Display area
409.8(H)X230.4(V)mm
Brightness
250 cd/m²
Contrast
1000:1
Viewing Angle(H/V)
160/170
Response time
5ms
Resolution
HD
Refresh Rate
60 Hz
Connector Type
VGA&HDMI
Color display
16.7M
Hardware Interface
VGA&HDMI
Power
12V3A
Consumed power
Working:11W (Typical values) Standby:<0.5W
Plug and play
Supported
User control
Automatically adjust/Power switch
OSD language
Optional
Speaker
Optional
Installation
Bracket
Mounting Type
Wall Mount
Case color
Black
Structure function
Bracket tilt:-4°-14°
Haze
25%
Hard coating
3H
