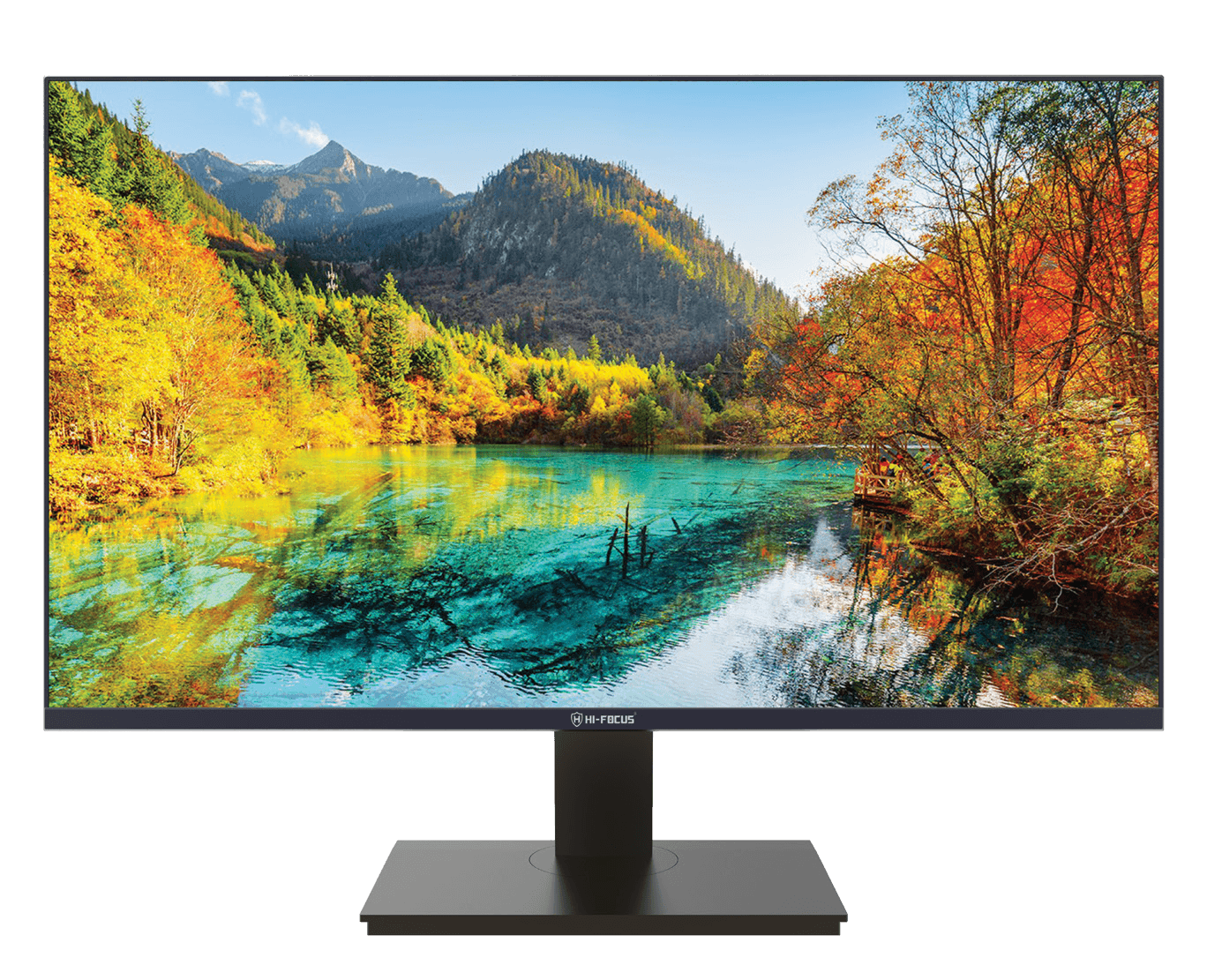

22 INCH LED MONITOR WITH SPEAKER
HF-LED22AS
Product Features
- 21.5Inch Panel size
- 1920 x 1080 Pixels Resolution
- 16:9 Ratio
- 5ms Response time
Specifications
- PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Panel size
21.5Inch
Resolution
Full HD
Ratio
16:9
Model size
506.4(H)*303.8(V)mm without bracket
Density
0.08265(H)x0.24795(V)mm
Pixel pitch
0.24795H)x0.24795(V)mm
Viewing area
484.5(H)X284.4(V)mm
Display area
476.064(H)X267.786(V)
Brightness
250 cd/m²
Contrast
1000:1
Viewing Angle(H/V)
160/170
Response time
5ms
Refresh Rate
60 Hz
Connector Type
VGA&HDMI
Color display
16.7M
Hardware Interface
VGA&HDMI
Power
12V3A
Consumed power
Working: 18W (Typical values) Standby: <0.5W
Plug and play
Support
User control
Automatically adjust/Power switch
OSD language
Optional
Speaker
Dual 2Watts
Installation
Bracket
Mounting Type
Wall Mount
Case color
Black
Structure function
Bracket tilt:-4°-14°
Haze
25%
Hard coating
3H
