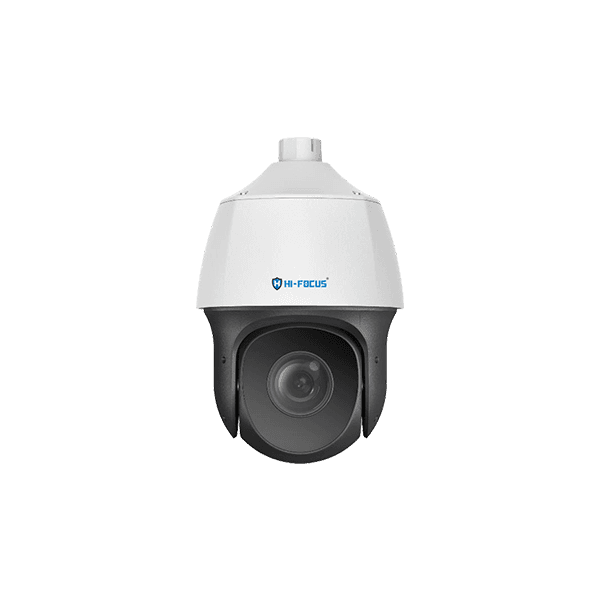

2MP NETWORK PTZ CAMERA
HC-IPC-SDQ53320S
Product Features
- High quality image with 2MP, 1/2.8’’ CMOS sensor
- 1920x1080@30fps in the main stream
- Smart H.265, H.265, H.264, MJPEG
- 33X optical zoom allows for closer viewing of subjects
- Smart intrusion prevention, support false alarm filtering, include
- Line Crossing, Intrusion, Enter Area, Leave Area detection
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Audio 1CH in and 1CH out, Alarm 2CH in and 1CH out
- Micro SD, up to 256GB
- Smart IR, up to 150m (492 ft) IR distance
- DC12V or PoE+(IEEE 802.3at) power supply
- IP66 Ingress Protection
Specifications
- CAMERA
- VIDEO
- SMART
- NETWORK
- AUDIO
- STORAGE
- PAN & TILT
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.8", progressive scan, 2.0megapixel, CMOS
Lens
4.5~ 148.5mm, AF automatic focusing and motorized zoom lens
Optical Zoom
33X
Iris
Auto; F1.5 ~ F4.0
Angle of View (H)
56.23° ~ 2.57°
Shutter Speed
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
0.001 Lux (F1.5, AGC ON) 0 Lux with IR IR-cut
Day/Night
filter with auto switch (ICR)
IR Range
Up to 150m (492 ft)
Wavelength
850nm
IR On/Off Control
Auto/Manual
WDR
120dB
S/N
>52dB
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Noise Reduction
2D/3D DNR
Defog
Digital defog
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 2MP (1920x1080), Max 30fps; Sub Stream: 720P (1280x720), Max 30fps; Third Stream: D1 (720x576), Max 30fps
Video Bit Rate
128 Kbps~16 Mbps
Video stream
Triple streams
ROI
Up to 8 areas
OSD
Up to 8 OSDs
Privacy Mask
24 areas, up to 4 areas per scene
Smart IR
Supported
HLC
Supported
BLC
Supported
SMART
Intelligent Analysis
Support false alarm filtering: Line Crossing detection, Intrusion detection, Enter Area detection, Leave Area detection, Basic Detection, Motion detection, Audio detection, Tampering Alarm
Auto Tracking
Supported
General Function
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
NETWORK
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way
Supported
Audio Suppression
Supported
Sampling Rate
8KHZ
STORAGE
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS(NFS)
PAN & TILT
Pan Range
360° (endless)
Pan Speed
2°/s ~ 75°/s | Preset speed: 180°/s
Tilt Range
–15° ~ 90° (auto reverse)
Tilt Speed
2°/s ~ 75°/s | Preset speed: 80°/s
Number of Presets
1024
Preset Patrol
16 patrols, up to 64 presets for each patrol
Route Patrol
16 patrols, up to 32 actions for each patrol
Recorded Patrol
16 patrols, up to 128 actions for each patrol
Patrol Stay Time
15s ~ 1800s
Preset Image Freeze
Supported
Home Position
Supported
INTERFACE
Audio I/O
1/1
Alarm I/O
2/1
Serial Port
1 RS485
Network
1 RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC12V±10%, PoE+ (IEEE802.3 at) Power consumption: MAX 25W
Dimensions (Ø x H)
Ø220 x 370mm (Ø8.7” x 14.6”)
Weight
3.4kg(7.48lb)
Working Environment
-40°~65° (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing)
Storage Environment
-40° ~ 70° (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection
6KV
Reset button
Supported
Ingress Protection
IP66
