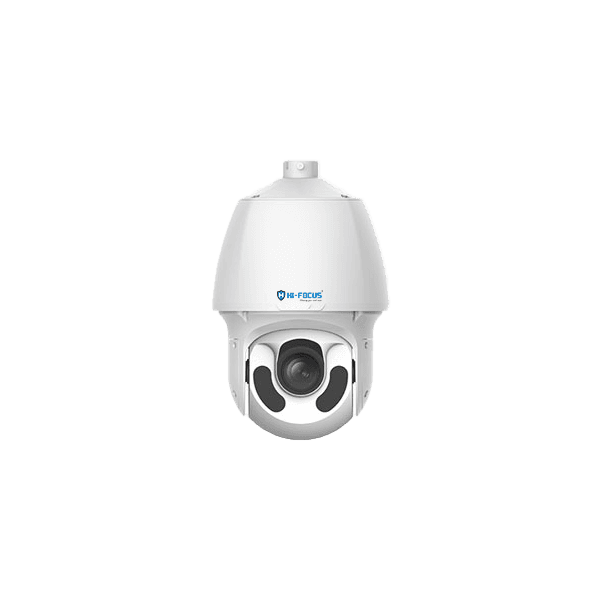

2MP PTZ CAMERA
HC-IPC-SD2220SP
Product Features
- 33X Optical Zoom
- High quality image with 2MP, 1/2.8’’ CMOS sensor
- 1920x1080@60fps in the main stream
- Smart H.265, H.265, H.264, MJPEG
- Triple streams
- Smart intrusion prevention, support false alarm filtering, include Line Crossing, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density Monitoring, suitable for different statistical scenarios
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 150m (492 ft) IR distance
- AC 24V±25%, DC 24V±25% or PoE power supply
- Alarm 2CH in and 1CH out, Audio 1CH in and 1CH out
- IP66 Ingress Protection
Specifications
- CAMERA
- VIDEO
- SMART
- AUDIO
- STORAGE
- NETWORK
- PAN&TILT
- INTERFACE
- GENERAL
CAMERA
Sensor
1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens
4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
Angle of View (H)
56.2° ~ 2.6°
Shutter Speed
Auto/manual, 1 ~ 1/100000 s
Minimum illumination
Colour: 0.001 lux (F1.5, AGC ON) 0 lux with IR
Iris
Auto; F1.5 ~ F4.0
Day/Night
IR-cut filter with auto switch (ICR)
Digital noise reduction
2D/3D DNR
S/N
>52dB
IR Range
Up to 150m (492 ft) IR range
Wavelength
850nm
IR On/Off Control
Auto/Manual
WDR
120db
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital zoom
16x
Optical Zoom
33x
Defog
Digital Defog
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 2MP (1920x1080), Max 60fps; Sub Stream: 2MP (1920x1080), Max 60fps; Third Stream: D1 (720x576), Max 60fps;
Video Bit Rate
128kbps-16mbps
Video Stream
Triple streams
HLC
Supported
BLC
Supported
ROI
Supported
OSD
Up to 8 OSDs
Privacy Mask
24 areas, up to 4 areas per scene
SMART
Intelligent Analytics
Support false alarm filtering: Line Crossing detection, Intrusion detection, Enter Area detection, Leave Area detection, People Counting: Support people flow counting and crowd density monitoring, Basic Detection: Motion detection, Audio detection, Tampering Alarm
Auto Tracking
Supported
General Function
Watermark, IP Address Filtering, Alarm Input, Alarm Output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
AUDIO
Audio Compression
G.711U, G.711A
Two-Way audio
Supported
Suppression
Supported
Sampling Rate
8 kHz
Audio Bitrate
64 kbps
STORAGE
Edge Storage
Micro SD, Up to 256 GB
Network Storage
ANR, NAS(NFS)
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
PAN&TILT
Pan Range
360° (endless)
Pan Speed
0.1°/s ~ 200°/s | Preset speed: 300°/s
Tilt Range
–15° ~ 90° (auto reverse)
Tilt Speed
0.1° ~ 200°/s | Preset speed: 240°/s
Number of Presets
1024
Preset Patrol
16 patrols, up to 64 presets for each patrol
Route Patrol
16 patrols, up to 32 actions for each patrol
Recorded Patro
16 patrols, up to 128 actions for each patrol
Patrol Stay Time
15s~1800s
Preset Image Freeze
Supported
Home Position
Supported
INTERFACE
Audio I/O
1/1
Alarm I/O
2/ 2
Serial Port
1 RS485
Network
1 RJ45 10M/100M Base-TX Ethernet
Video output
1 BNC
GENERAL
Power
AC 24V±25%, DC 24V±25% PoE (PSE Required)) Power consumption: Max 41W
Dimensions(ØxH)
Ø227 x 384.8mm (Ø8.9" x 15.1")
Weight
5.39kg(11.88lb)
Working Environment
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection
6KV
Ingress Protection
IP66
Reset Button
Supported
