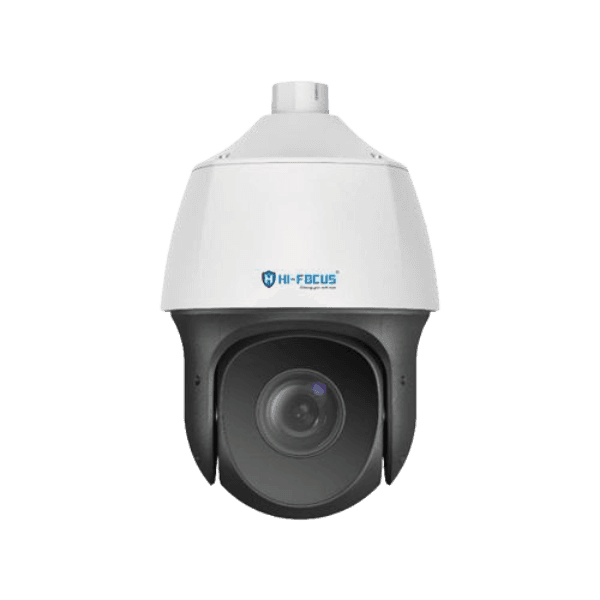

2MP PTZ CAMERA
HC-IPC-SD2220SR
Product Features
- High quality image with 2MP,1/2.8’’ CMOS sensor
- 1920x1080@30fps in the main stream
- Smart H.265, H.265, H.264, MJPEG
- 25X optical zoom allows for closer viewing of subjects
- Smart intrusion prevention, support false alarm filtering, include Line Crossing, Intrusion etc
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- DC12V or PoE+(IEEE 802.3at) power supply
- Micro SD, up to 256GB
- Smart IR, up to 150m (492 ft) IR distance
- IP66 Ingress Protection
Specifications
- CAMERA
- VIDEO
- AUDIO
- SMART
- PAN & TILT
- NETWORK
- STORAGE
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.8", progressive scan, 2.0megapixel, CMOS
Lens
5~ 125mm, AF automatic focusing and motorized zoom lens
Iris
Auto; F1.5 ~ F3.0
Optical Zoom
25
Shutter Speed
Auto, 1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
IR On/Off Control
Auto/Manual
Minimum Illumination
Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR
IR
Up to 150m (492 ft) IR range
WDR
120dB
S/N
>52dB
Digital zoom
16x
Noise Reduction
2D/3D DNR
Angle of View (H)
54.37° ~ 2.68°
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
Frame Rate
Profile 1: 2MP (1920x1080), Max 30fps; Profile 2: 720P (1280x720), Max 30fps; Profile 3: D1 (720x576), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
Video Stream
Triple streams
ROI
Up to 4 areas
OSD
Up to 4 OSDs
Privacy Mask
24 areas, up to 4 areas per scene
White balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR
Support
HLC
Support
BLC
Support
Defog
Digital Defog
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way audio
Support
Suppression
Support
Sampling Rate
8 kHz
SMART
Intelligent Analysis
Line Crossing detection, Intrusion Detection, Missing object detection, Face detection, Motion detection, Tampering Alarm
PAN & TILT
Pan Range
360° (endless)
Pan Speed
0.1° ~180 ° /s; Preset speed: 180°/s
Tilt Range
-15° ~ 90° (auto reverse)
Tilt Speed
0.1° ~90° /s; Preset speed: 90°/s
Number of Presets
1024
Preset Patrol
16 patrols, up to 64 presets for each patrol
Route Patrol
16 patrols, up to 32 actions for each patrol
Recorded Patrol
16 patrols, up to 128 actions for each patrol
Patrol Stay Time
15s~1800s
Preset Image Freeze
Support
Home Position
Support
NETWORK
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
STORAGE
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS (NFS)
INTERFACE
Network
1 x RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC12V (±10%), PoE+ (IEEE 802.3at) Power consumption: Max 25W
Working Environment
-40℃~65℃ (-40°F ~ 149°F) Humidity: ≤95% RH (non-condensing)
Reset button
Support
Surge Protection
6KV
Ingress Protection
IP66
