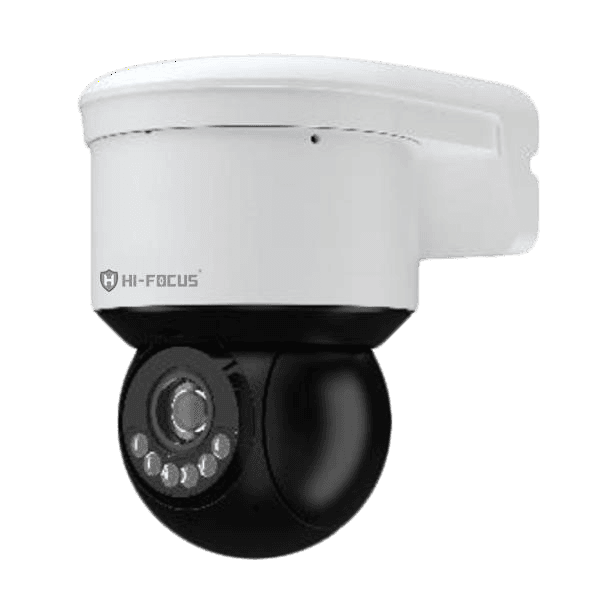

4MP 4X OPTICAL ZOOM NETWORK PTZ CAMERA
HC-IPC-SD0440T-AL
Product Features
- Progressive scan BSI+NIR image sensor
- Up to 2560x1440 resolution
- 4x optical zoom, fast and accurate
- Smart 4 IR LEDs up to 50m, 2 White LED 30m
- Bi-directional audio, built-in Mics &Speaker
- 30m for audible warnings, 7m for voice recording
- AI-based human vehicle detection & classification and tracking, perimeter precaution, crossing line, etc
- SD/TF card chamber, Reset button, Alarm in/out
- PoE+ or DC12V power supply, easy installation
- IP66 Water-proof, IK10, -40°C~70°C
- ONVIF, API, IE/NVR/VMS/free mobile Apps
- White LED turn on at Motion based
Specifications
- CAMERA
- VIDEO
- PAN&TILT
- SUPPLEMENT LIGHT
- SMART FEATURES
- STORAGE
- NETWORK
- INTERFACE
- GENERAL
CAMERA
Image Sensor
1/2.7", progressive scan CMOS with BSI and NIR+ technology
Lens
2.8~12mm lens, 4x optical
Angle of view(H)
97° to 31° ±5%
Shutter speed
1/25s ~ 1/25,000s
Minimum illumination
Color 0.01 Lux @ (F1.6 AGC ON) B/W 0.002 Lux @(F1.6 AGC ON); 0 Lux with IR
Iris
Auto/Manual; F1.6 ~ F4.4
Day/Night
Auto/Manual, Electrical switchable ICR
WDR
120dB
Digital noise reduction
3D DNR
S/N
≥52dB
IR Range
Up to 50 m (164ft)
Defog
Digital Defog
White Balance
Auto/Manual/Indoor/Outdoor
Picture overlay
Logo picture could be overlaid on video with 128x128pixels, 24bits BMP format
Font overlay
Max 15characters per line, 8lines max, white color or red color
VIDEO
Video Compression
Smart H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Main Stream
25fps (2560×1440, 2048×1536, 1920×1080, 1280×960, 1280×720); 30fps (2560×1440, 2048×1536, 1920× 1080, 1280× 960, 1280× 720)
Sub Stream
25fps (704 × 576, 640 × 480, 352 × 288) 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Bit Rate
64Kbps ~ 16Mbps
Audio Compression
G.711 A/U
HLC
Supported
BLC
Supported
Privacy Mask
Privacy Mask
PAN&TILT
Pan Range
360° (endless)
Pan Speed
0.1°/s ~80°/s Preset speed: 80°/s
Tilt Range
-5° ~ +90°
Tilt Speed
0.1° ~ 60°/s Preset speed: 60°/s
Number of Presets
300
Patrol
Up to 8 patrols, up to 16 presets per patrol Note: The total number of patrols and patterns is 16
Pattern
Up to 4 record patterns, Record time over 3 minutes for each patterns
Scheduled Task
Preset/Patrol/Track/Random Scan/Boundary Scanning /Dome Reboot
SUPPLEMENT LIGHT
IR Distance
Up to 50m, 4pcs of IR Array into 2 Groups, auto switch with zoom ratio
Smart IR
Yes
White light Distance
Up to 30m, 2pcs of White LED Array
White light Mode
Flush mode, torque mode , time interval adjustable
SMART FEATURES
Image Settings
Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client
Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error)
Face recognize
Support human face detection and capture, max 7 human faces per scene
Road traffic
Vehicle detecting and tracking, etc
Smart Detection
Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection, etc.
Smart Tracking
Smart tracking of human or vehicle, auto/manual.
Active Deterrence
Flush strong white light and predefined voice upon invaders detected. Support 10+ different predefined voice clips
Dual way talk
Support dual-way talk
STORAGE
Edge Storage
Micro SD card, Up to 256 GB
Reset button
Yes
NETWORK
Protocols
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP,
User/Host
Up to 16 users, 3 levels: Administrator, Advanced User and Normal User
Compatible integration
ONVIF (Profile S, G, T), API
INTERFACE
Ext. Audio I/O
1-ch audio input (mic in), 2.0-2.4Vp-p, 1kΩ±10%; 1-ch audio Output (line out), line level, impendance: 600 Ω;
Built-in speaker
4Ω, 2.5Watt. Rotation
Built-in MIC
1channel, rotation with camera lens direction, up to 8m distance voice recordable
Alarm I/O
1CH alarm input(Dry contact); 1CH alarm output
Network
put Network 1
GENERAL
Power
DC12V±20%,2000mA,or PoE+ (802.3.at), avg 3.3Watt, max 14.9Watt at day; 18.9Watt at night(LED + Speaker on + PT Rotation)
Working Environment
–40°C ~ 65°C (-40°F ~ 149°F), Humidity: ≤ 95% RH(non-condensing)
Protection
6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions(ØxH)
Ø130mm x 162mmH (Ø5.1” x 6.4”)
Weight
Approx. 1.2Kg (2.645lb.)
Ingress Protection
IP66
Vandal Resistance
IK10
