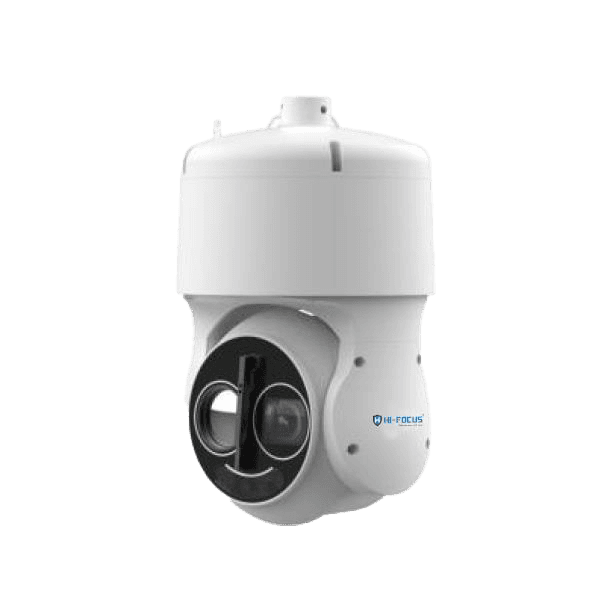

4MP THERMAL PTZ CAMERA
HC-IPC-SD464TH
Product Features
- Clearer and farther image with the latest 12μm infrared detector and leading algorithm
- Visual and thermal dual-spectrum imaging for 24/7 safety surveillance
- Support intelligent behavior analysis such as dual-spectrum region intrusion and cross-border intrusion, support AI human-vehicle recognition
- Support professional temperature measurement analysis tools and
- intelligent fire detection algorithm
- Support multi-event linkage alarm and audible-visible alarm
- Support intelligent scene configuration, support multiple scanning mode
- and target tracking
- Integrated with ±0.05° high-accuracy PTZ, 200°/s high rotation speed
- All-metal integrated body with IP66 encapsulation rating, support self-
- sensing wipers
- Provide NVR and client software VMS, support standard interface protocols
- such as ONVIF, and SDK for secondary development
Specifications
- THERMAL CAMERA
- VISIBLE
- PAN TILT
- NETWORK
- TEMPERATURE MEASUREMENT FUNCTION
- SMART FUNCTION
- SYSTEM INTERFACE
- GENERAL
THERMAL CAMERA
Sensor Type
VOx, uncooled FPA detector
Spectral Range
8~14μm
NETD
≤35mK (@25°C, F#1.0,25Hz)
Resolution
640×512
Pixel Pitch
12μm
Lens Focal Length
9.1mm / 13mm / 25mm / 50mm
Focus Mode
Athermalized fixed focus/motorized focus
FOV
48°×38° / 33°×26° / 17°×14° / 8.8°×7.0°
F#
1.0
Spatial Resolution
1.32mrad / 0.92mrad / 0.48mrad / 0.24mrad
Color Palettes
20 modes available such as Whitehot/Blackhot/Rainbow, etc.
VISIBLE
Sensor
4MP 1/1.8" Progressive Scan CMOS
Resolution
2560×1440
Lens Focal Length
6.5~240mm
Focus Mode
Auto/Semi-auto/Manual
FOV
60.4°×35.9°~2.1°×1.2°
Day/Night
ICR Auto / Digital color to B/W
IR Illuminator
Max. supplement light range: 200
PAN TILT
Pan Range
360° continuous rotation
Pan Speed
0.1°~200°/s
Tilt Range
-27°~90°, support auto flip
Tilt Speed
0.1°~120°/s
Presets
1024
Scan Mode
Preset/Tour/Pattern Scan/ Linear Scan/Area Scan
NETWORK
Protocols
IPv4, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP
Interoperability
ONVIF, GB28181, SDK
Simultaneous Live View
Max. 8
User Management
Up to 20 users, divided into 3 levels: administrator, operator and ordinary user
Browser
Support browsers such as Chrome, Mozilla Firefox, Edge, etc,
Audio Compression
G.711a/G .711u/AAC/PCM
Video Compression
H.264/H.265
Main Stream
Visible: 50Hz: 25fps (2560×1440, 1920×1080) 60Hz: 30fps (2560×1440, 1920×1080) Thermal: 50Hz: 25fps (1280×1024, 1024×768) 60Hz: 30fps (1280×1024, 1024×768)
Sub Stream
Visible: 50Hz:25fps (1920×1080, 1280×720, 704×576, 352×288) 60Hz: 30fps (1920×1080, 1280×720, 704×480, 352×240) Thermal: 50Hz:25fps (640×512) 60Hz:30fps (640×512)
TEMPERATURE MEASUREMENT FUNCTION
Temperature Measurement Range
-20℃~+550℃
Temperature Measurement Accuracy
±2℃ or ±2%, the larger value shall prevail
Temperature Measurement Analysis
Support temperature measurement tools such as full frame/ point/ line/ region and linkage alarm
SMART FUNCTION
Fire Alert
Support fire detection
Smart Recording
Alarm trigger recording, disconnection trigger
recording Malfunction Detection
Support alarm trigger of network disconnection, IP address conflict, SD card error, illegal access, burning alert and abnormal detection
Smart Detecting
Support smart event analysis such as human-vehicle recognition, cross-border, region intrusion
Voice Talkback
Support two-way voice talkback
Alarm Linkage
Video recording/Snapshot/alarm output/ sending
mail/
PTZ linkage/Audible and visual
SYSTEM INTERFACE
Power Supply
AC 24V ±25% / DC 24V±15%
Communication
1-channel RS485
Audio
1-channel audio input，1-channel audio output， 1-channel built-in Speaker
Alarm Interface
7-channel alarm input，2-channel alarm output
Memory
Support Micro SD card (maximum 256G)
Reset Button
Supported
GENERAL
Operating Conditions
-40℃~+70℃; <95%RH
Ingress Protection
IP66
Wiper
Support self-inductive wiper
Power Consumption
Max. 48W
Dimension(mm)
Φ250×413
Weight
8Kg
