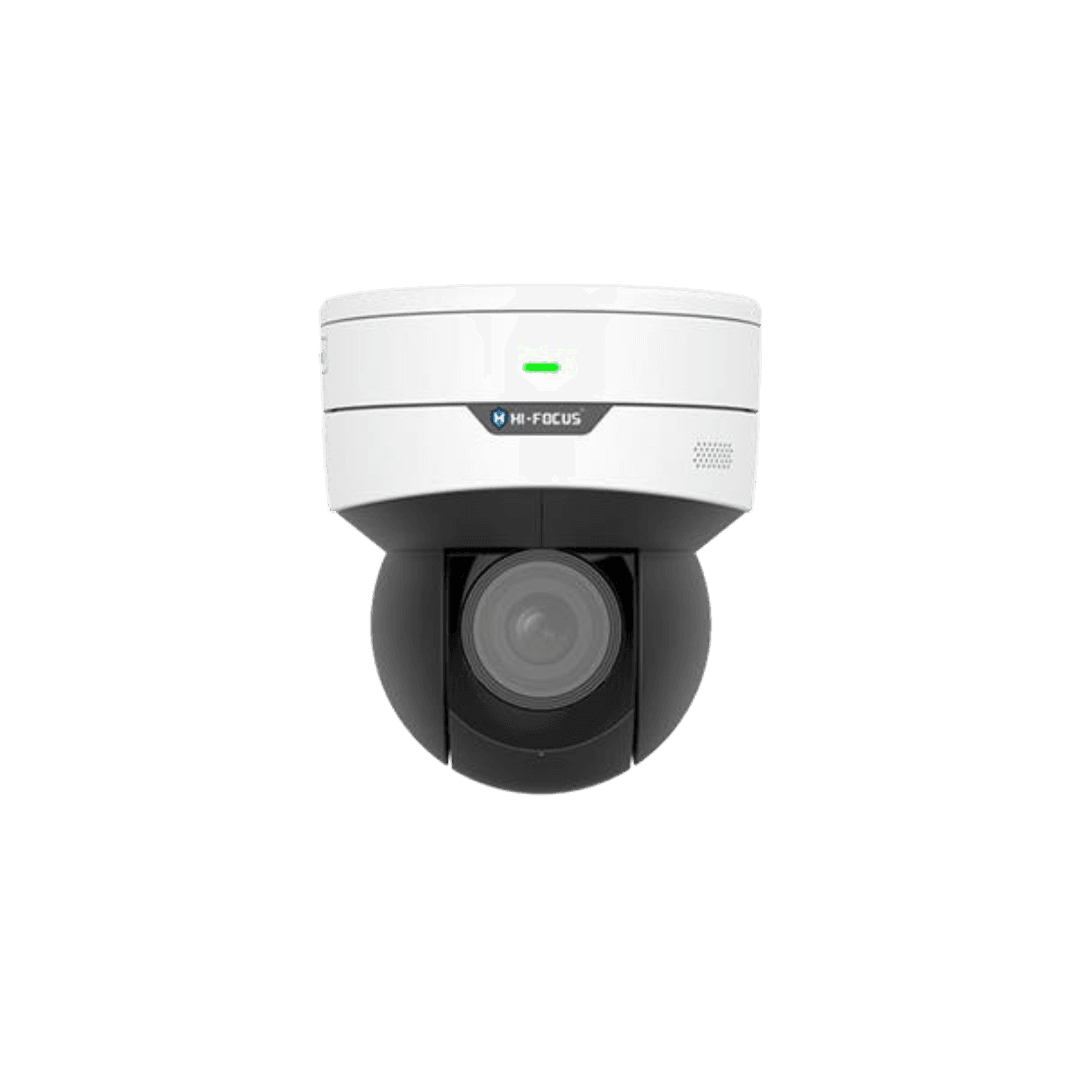

5MP NETWORK PTZ CAMERA
HC-IPC-SDQA20540-S
Product Features
- 5X optical zoom allows for closer viewing of subjects
- High quality image with 5MP, 1/2.7’’ CMOS sensor
- Smart H.265, H.265, H.264, MJPEG
- 2880x1620@30fps in the main stream, 16:9 aspect ratio
- Smart intrusion prevention, support false alarm filtering, include Line Crossing, Intrusion, Enter Area, Leave Area detection
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Wi-Fi connection and easy installation
- Built-in Mic & Speaker, support two-way audio
- Alarm 1CH in and 1CH out
- Smart IR, up to 30m (98ft) IR distance
Specifications
- CAMERA
- VIDEO
- SMART
- AUDIO
- STORAGE
- NETWORK
- PAN & TILT
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.7", progressive scan, 5.0megapixel, CMOS
Lens
2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom
Iris
Auto aperture
Field of View (H)
106.9°~30.6°
Shutter Speed
Auto/Manual, 1 ~ 1/10000
Minimum Illumination
0.003 lux (F1.2, AGC ON) 0 lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
IR Range
Up to 30m (98 ft)
Wavelength
850nm
IR On/Off Control
Auto/Manual
WDR
120dB
S/N
>56dB
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Noise Reduction
2D/3D DNR
Defog
Digital defog
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 5MP (2880x1620), Max 30fps; Sub Stream: 720P (1280x720), Max 30fps; Third Stream: D1 (720x576), Max 30fps
Video Bit Rate
128 Kbps~16 Mbps
ROI
Supported
OSD
Up to 8 OSDs
Privacy Mask
24 areas, up to 4 areas per scene
Privacy Mask
24 areas, up to 4 areas per scene
Smart IR
Supported
HLC
Supported
BLC
Supported
SMART
Intelligent Analysis
Support false alarm filtering, Line Crossing detection, Intrusion detection, Enter Area detection, Leave Area detection, Basic Detection, Motion detection, Audio detection, Tampering Alarm
General Function
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way Audio
Supported
Suppression
Supported
Sampling Rate
8 kHz
STORAGE
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS(NFS)
NETWORK
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
PAN & TILT
Pan Range
350°
Pan Speed
0.1°/s ~ 60°/s | Preset speed: 60°/s
Tilt Range
0° ~ 90°
Tilt Speed
0.1°/s ~ 50°/s | Preset speed: 50°/s
Number of Presets
1024
Preset Patrol
16 patrols, up to 64 presets for each patrol
Patrol Stay Time
120s~1800s
Home Position
Supported
INTERFACE
Alarm I/O
1/1
Serial Port
1 RS485
Built-in Mic
Supported
Built-in Speaker
Supported
Network
1 RJ45 10M/100M Base-TX Ethernet
WIFI
Support (IEEE802.11b/g/n)
GENERAL
Power
DC12V (±25%), PoE+(IEEE 802.3at) Power consumption: MAX 15W
Dimensions (Ø x H)
Φ129 x 143.6mm (Φ5.1’’ x 5.7”)
Weight
0.76kg(1.67lb)
Working Environment
-10°~50° (14°F ~ 122°F), Humidity: ≤95% RH (non-condensing)
Storage Environment
-40°~70° (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection
4KV
Reset button
Supported
