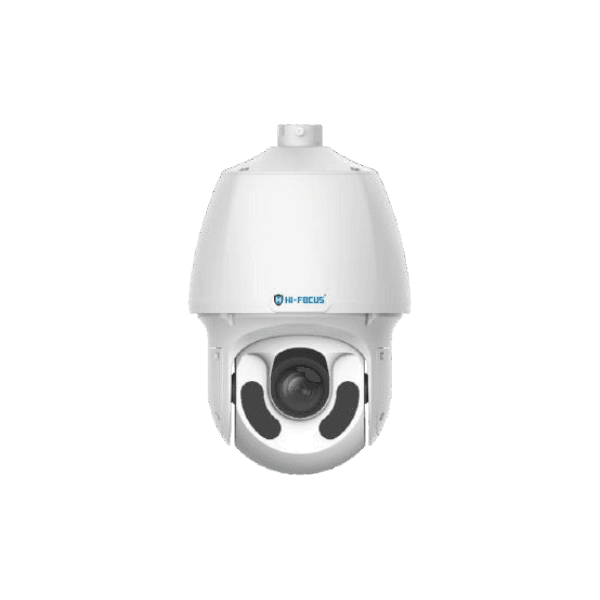

5MP 40X OPTICAL ZOOM PTZ NETWORK CAMERA
HC-IPC-SD3820SR
Product Features
- Day/night functionality
- Smart IR , up to 200m(656ft) IR distance
- 5MP high quality image
- (2880x1620) @30fps in the main stream
- Smart H.265, H.265, H.264, MJPEG
- Triple streams
- Smart intrusion prevention, support false alarm filtering, include Line Crossing, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- AC 24V±25%, DC 24V±25% or PoE+(IEEE 802.3at) power supply
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP67 Ingress Protection
Specifications
- CAMERA
- VIDEO
- SMART
- AUDIO
- NETWORK
- PAN & TILT
- INTERFACE
- GENERAL
CAMERA
Sensor
1 / 2.8", progressive scan, 5.0 megapixel, CMOS
Lens
4.05~162mm, (Optical Zoom 40) AF automatic focusing and motorized zoom
Iris
Auto; F1.5 ~ F4.0
Shutter Speed
Auto, 1 ~ 1/100000s
Day/Night
IR-cut filter with auto switch (ICR)
Wavelength
850nm
IR On/Off Control
Auto/Manual
Minimum Illumination
Color: 0.003Lux (F1.5, AGC ON) 0 Lux with IR
IR
200m(656ft)
WDR
120dB
S/N
>56dB
Digital zoom
16x
Noise Reduction
2D/3D DNR
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 5MP (2880x1620), Max 30fps; Sub Stream: 2MP (1920x1080), Max 30fps; Third Stream: D1 (720x576), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
ROI
Up to 8 areas
Up to 8 areas
Up to 8 OSDs
Privacy Mask
24 areas, up to 4 areas per scene
Smart IR
Support
Flip
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise 90°Anti-clockwise
White balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
HLC, BLC
Supported
Defog
Digital Defog
SMART
Intelligent Analytics
Support false alarm filtering: Line Crossing detection, Intrusion detection, Enter Area detection, Leave Area detection Support people flow counting and crowd density monitoring Motion detection, Audio detection, Tampering Alarm, Auto Tracking
General Function
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
8 kHz
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS(NFS)
NETWORK
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host
Up to 32 users. 3 user levels: administrator, operator and common user
Security
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
PAN & TILT
Pan Range
360° (endless)
Pan Speed
0.1°/s ~ 200°/s Preset speed: 300°/s
Tilt Range
-15° ~ 90° (auto reverse)
Tilt Speed
0.1°/s ~ 200°/s Preset speed: 240°/s
Number of Presets
1024
Preset Patrol
16 patrols, up to 64 presets for each patrol
Route Patrol
16 patrols, up to 128 actions for each patrol
Patrol Stay Time
15s~1800s
Preset Image Freeze
Support
Home Position
Support
INTERFACE
Audio I/O
1/1
Alarm I/O
2/1
Serial Port
1 RS485
Network
1 x RJ45 10M/100M Base-TX Ethernet
Video Output
1 BNC
GENERAL
Power
AC 24V±25%, DC 24V±25%, PoE+ (IEEE802.3 at) Power consumption: Max 25W
Working Environment
-40°C ~70°C (-40°F ~ 158°F) Humidity: ≤95% RH (non-condensing)
Reset button
Support
Support
6KV
Ingress Protection
IP67
