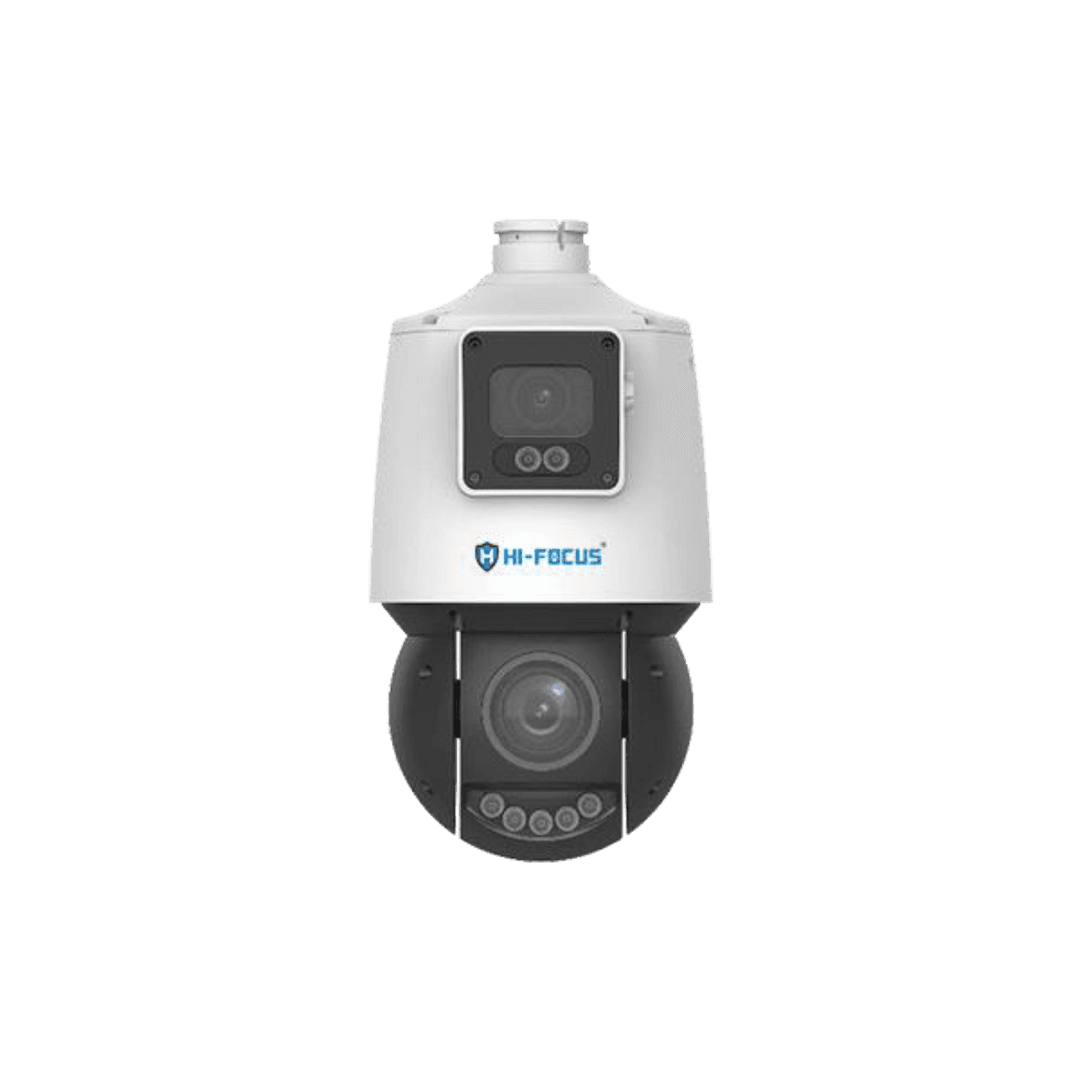

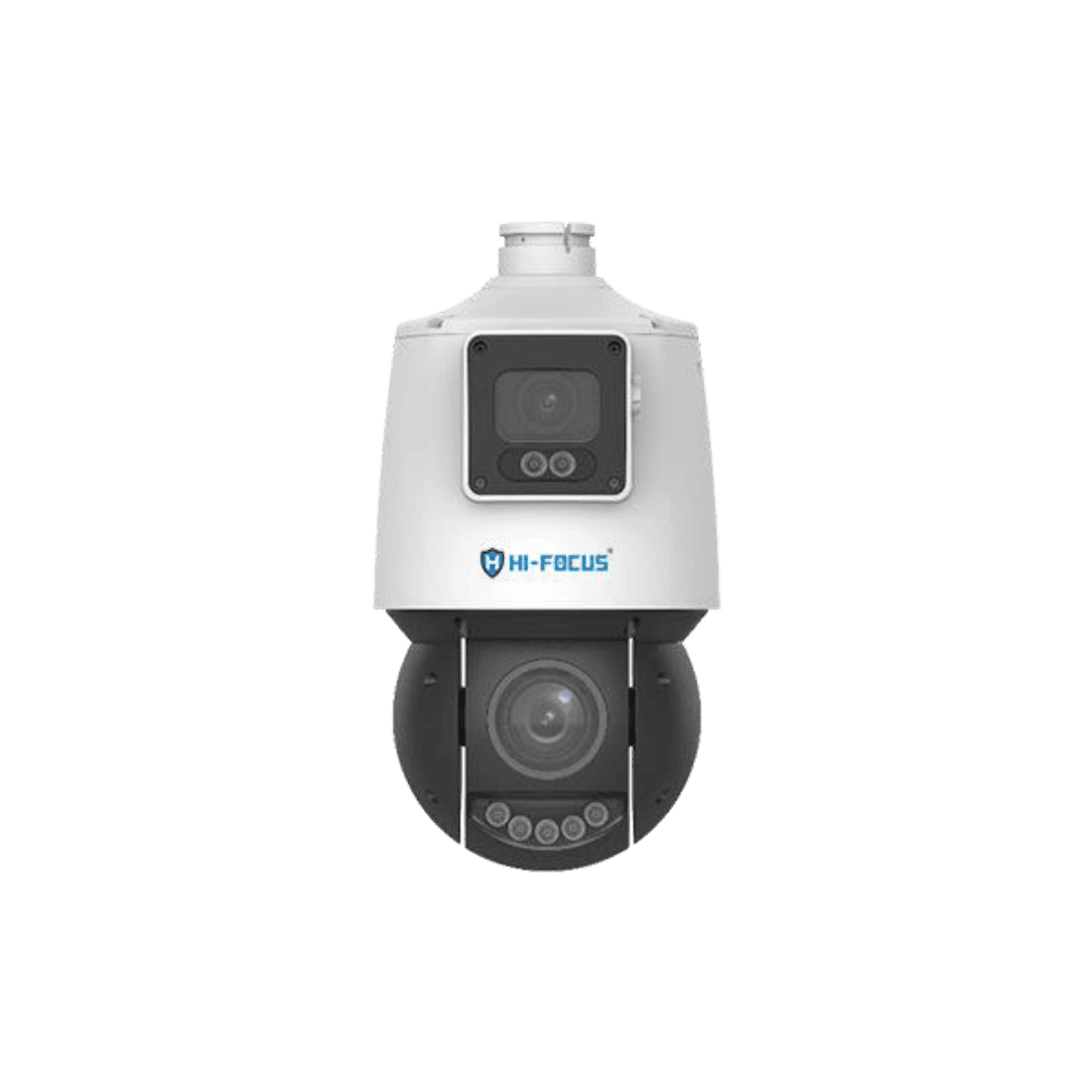

4MP NETWORK PTZ CAMERA
HC-IPC-SDQA52540-4314-WLS
Product Features
- 25X optical zoom of PTZ channel allows for closer viewing of subjects
- Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
- Smart H.265, H.265, H.264, MJPEG
- Smart intrusion prevention, support false alarm filtering, include Line
- Crossing, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios PTZ channel can be linked to fixed channel’s smart intrusion prevention
- to track the objects triggering the rule
- Support light warning, makes warning and alarming more noticeable
- IR & warm light illumination to deal with different scenes and achieve full-color illumination
- DC12V or PoE+(IEEE 802.3at) power supply
- Alarm 2CH in and 1CH out, Audio 1CH in and 1CH out
Specifications
- CAMERA
- VIDEO
- SMART
- AUDIO
- STORAGE
- NETWORK
- PAN & TILT
- INTERFACE
- GENERAL
CAMERA
Sensor
1/1.8", 4MP, CMOS
Lens Type
4mm@F1.0
Optical Zoom
25X
Iris
Fixed aperture; F1.0
Field of View (H)
94.9°
Minimum Illumination
Color:0.0005 lux (F1.0, AGC ON)
Day/Night
IR-cut filter with auto switch (ICR)
Wavelength
850nm (IR)
Warm Light Range
Up to 30m (98.4 ft)
Light On/Off Control
Auto/Manual
Shutter Speed
Auto/Manual, 1 ~ 1/1000
WDR
120dB
S/N
>56dB
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Noise Reduction
2D/3D DNR
Defog
Digital defog
VIDEO
Video Compression
Smart H.265, H.265, H.264, MJPEG
Frame Rate
Main Stream: 4MP (2688x1520), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
Video stream
Triple streams
ROI
Up to 8 areas
OSD
Up to 8 OSDs
HLC
Supported
BLC
Supported
Smart IR
Supported
Privacy Mask
Up to 4 areas per scene
SMART
Intelligent Analysis
Support false alarm filtering, Line Crossing detection, Intrusion detection, Enter Area detection, Leave Area detection, People Counting, Support people flow counting and crowd density
Alarm
Basic Detection, Motion detection, Audio detection, Tampering Support Linkage Function Triggered by fixed lens via smart intrusion prevention function to track target
Auto Tracking
Supported
General Function
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
AUDIO
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way Audio
Supported
Suppression
Supported
Sampling Rate
8 kHz
STORAGE
Edge Storage
Micro SD, up to 256 GB
Network Storage
ANR, NAS(NFS)
NETWORK
Protocols
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T), API, SDK
PAN & TILT
Pan Range
360°
Pan Speed
0.1°/s ~ 80°/s | Preset speed: 80°/s
Tilt Range
18° ± 5°
Tilt Speed
0.1°/s ~ 80°/s | Preset speed: 80°/s
Number of Presets
1024
Preset Patrol
16 patrols, up to 64 presets for each patrol
Route Patrol
16 patrols, up to 32 actions for each patrol
Recorded Patrol
16 patrols, up to 128 actions for each patrol
Patrol Stay Time
15s~1800s
Home Position
Supported
INTERFACE
Audio I/O
1/1
Alarm I/O
2/1
Serial Port
1 RS485
Built-in Speaker
Support
Network
1 RJ45 10M/100M Base-TX Ethernet
GENERAL
Power
DC12V (±25%), PoE+(IEEE 802.3at) Power consumption: Max 24W
Dimensions (Ø x H)
Φ163 x 304mm (Φ6.4” x 12.0”)
Weight
2.27kg (5.00lb)
Working Environment
-40° ~ +65° (-40°F ~ +149°F) Humidity: ≤95% RH (non-condensing)
Storage Environment
-40° ~ +70° (-40°F ~ +158°F) Humidity: ≤95% RH (non-condensing)
Surge protection
6KV
Reset button
Supported
