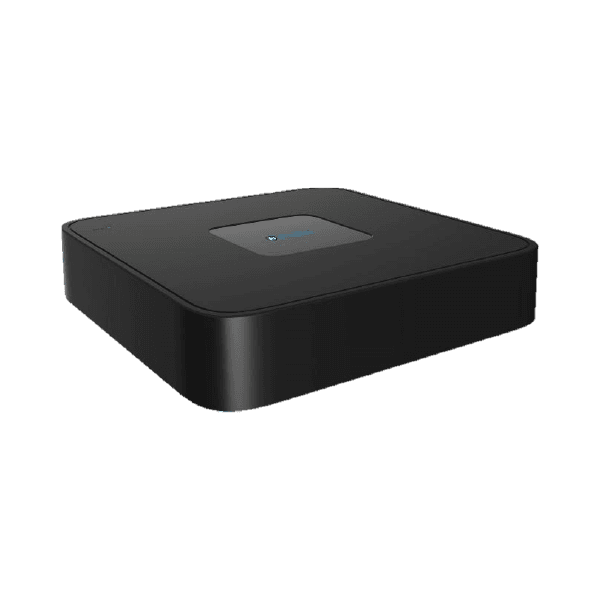

10 CHANNEL 1 SATA NETWORK VIDEO RECORDER
HD-NVR-5208S
Product Features
- Up to 10-ch IP camera accesses
- Incoming/Outgoing bandwidth: 60Mbps/40Mbps
- H.265+, H.265, H.264+, H.264 video formats
- Max. decoding capability: 6MP(30fps)×1 or 1080P(30fps)×4
- 4-ch synchronous playback
- Up to 8 TB capacity for each HDD
- Simultaneous HDMI and VGA outputs
- HDMI output at up to 4K resolution
- 1×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
- S+ 265 compression effectively reduces the storage space by up to 75%
- Support cloud upgrade
Specifications
- Video And Audio
- COMPRESSION
- NETWORK
- Record Playback
- Alarm
- Intelligent Analytics
- Storage
- External Port
- GENERAL
Video And Audio
Access Channel
10
Incoming Bandwidth
60Mbps
Outgoing Bandwidth
40Mbps
Resolution
6MP/5MP/4MP/3MP/1080P/UXGA/720P/ VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3,720P(30fps)×4
Playback Decoding Capability
6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4
Third-party Camera Access
ONVIF; RTSP
HDMI Output
HDMI: 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz/60Hz)
VGA Output
VGA:1024×768(60Hz),1280×720(50Hz/60Hz),1280×800(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz)
Multi-screen Display
Simultaneous Output: VGA: 1/3/4/5/6/7/8/9/10 HDMI1: 1/3/4/5/6/7/8/9/10
COMPRESSION
Video
H.265+; H.265; H.264+; H.264
Audio
G711A; G711U; AAC; ADPCM_DIV4
Stream Type
Video; Video & Audio
NETWORK
Network Protocol
802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; HTTPS; ICMP;IGMP; IPv4; IPv6; Multicast; NTP; RTCP; RTP; RTSP; SRTP; SSH; TLSv1.2; TCP/IP; UDP; Unicast; UPnP
Mobile Phone Access
Android; iOS; P2P
System Compatibility
RTSP; CGI; SDK
Web
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Record Playback
Multi-channel Playback
4
Record Mode
Manual Recording; Alarm Recording; Schedule Recording
Storage Method
Local HDD, eSATA
Backup
USB storage device,
Playback Function
Play/Pause/Stop/Slow/Speed/Backwards 30s/ Forwards 30s/FullScreen/Backup (Video Editing) /Step/ DigitalZoom
Alarm
General Alarm
Motion Detection; Mask Alarm; Alarm Input (IPC)
Exceptions Alarm
Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; Array Exception; Voltage Alarm(IPC); RTC Failure
Intelligent Analytics
AI by Camera
Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Smart Motion; Human/Vehicle Classification
VCA Search
Early-warning Search
Storage
HDD Capacity
Up to 8 TB capacity for each
HDD Disk Group
1 Disk Group
External Port
USB
2×USB2.0; 1×USB3.0
HDMI
1×HDMI(supports up to 4K resolution output)
VGA
1×VGA
Network Interface
1×RJ-45, 10/100Mbps self-adaptive Ethernet port
SATA
1×SATA interface
GENERAL
Power Supply
DC12V 1.5A
Power Consumption
<10W(HDD not included, idling)
Net Weight
0.4kg
Gross Weight
0.7Kg
Boundary Dimensions
200(L)200(W)43(H)mm
Package Dimensions
315(L)70(W)235(H)mm
Operating Temperature
-10℃~+55℃ (+14℉~+131℉)
Operating Humidity
10%~90%RH (non-condensing)
Storage Temperature
-20℃~+60℃ (-4℉~+140℉)
