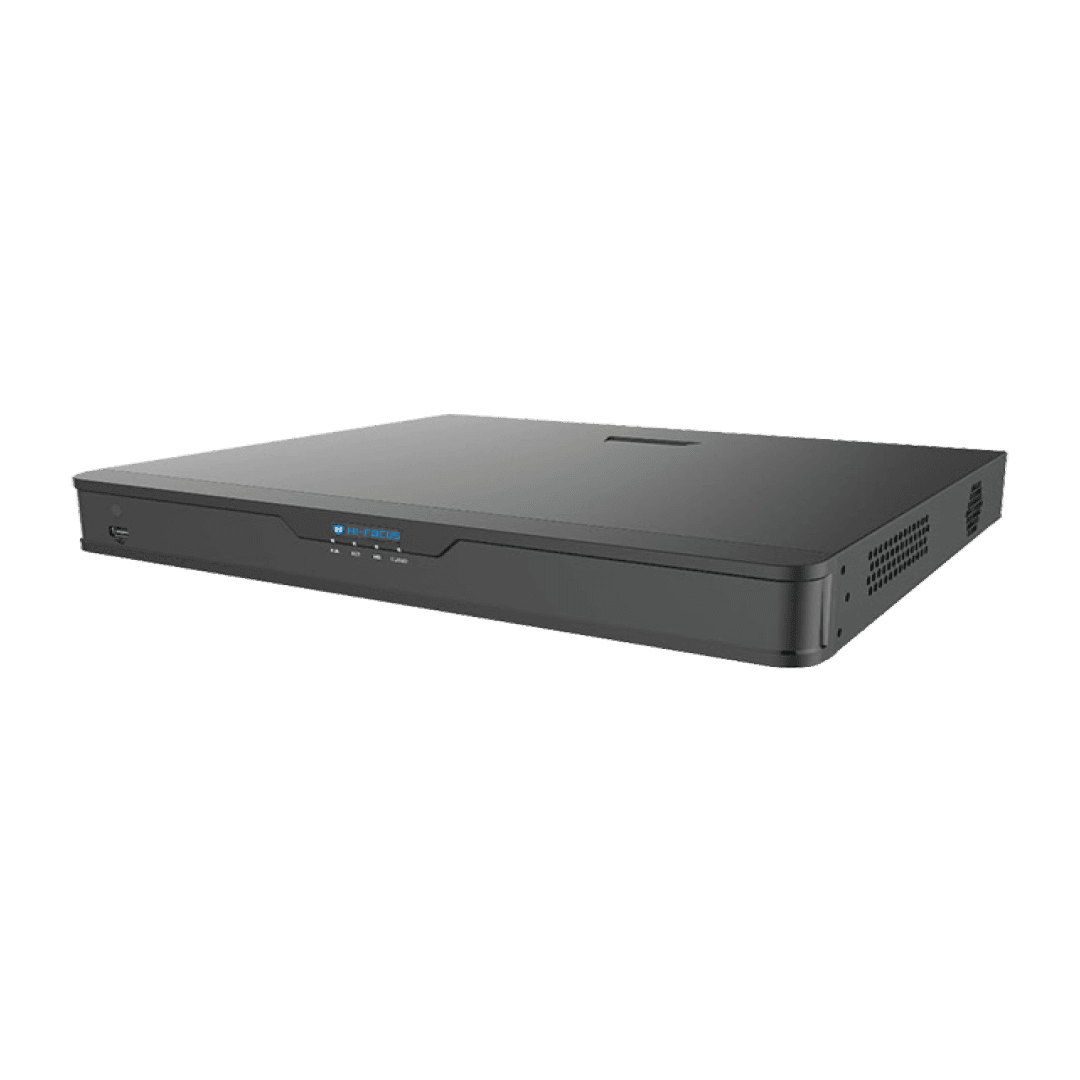

16 CHANNEL 2 SATA NETWORK VIDEO RECORDER 1
HD-NVR-7216Q
Product Features
- Support Smart H.265/H.265/H.264 video formats
- 16-channel input
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G,
- Profile T) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- HDMI and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GU
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Specifications
- VIDEO/AUDIO INPUT
- NETWORK
- SNAPSHOT
- DECODING
- HARD DISK
- SMART
- GENERAL ALARM
- EXTERNAL INTERFACE
- GENERAL
VIDEO/AUDIO INPUT
HDMI/VGA Output
HDMI: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output
1-ch, RCA
Audio Compression
G.711A, G.711U
Recording Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/ D1/2CIF/CIF
Synchronous Playback
16-ch
Liveview display
1/4/6/8/9/16
Corridor Mode Screen
3/4/5/7/9/10/12/16
NETWORK
Incoming Bandwidth
320Mbps
Outgoing Bandwidth
320Mbps
Remote Users
128
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
SNAPSHOT
FTP/Schedule/Event Snapshot
16-ch snapshot, up to 1080P resolution
DECODING
Decoding format
Smart H.265/H.265/H.264
Liveview/Playback
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/ D1/2CIF/CIF
Capability
1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 16 x 720P@30
HARD DISK
SATA
2 SATA interface
Capacity
Up to 10TB for each disk (The maximum HDD capacity varies with environment temperature)
Disk Group
Support
SMART
VCA Detection by Camera
Intrusion Detection, Line Crossing Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
VCA Search
Behavior Search, Vehicle Search
People counting
People Flow Counting, Crowd Density Monitoring
GENERAL ALARM
General Alarm
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
EXTERNAL INTERFACE
Network Interface
2 RJ-45 10M/100M/1000M self-adaptive Ethernet
USB Interface
Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 1 x USB3.0
RS485
1
Alarm In
8-ch
Alarm Out
2-ch
GENERAL
Power Supply
12V DC Power Consumption: ≤5 W (without HDD)
Working Environment
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)
380mm × 315mm ×53mm (15.0" × 12.4" ×2.1")
Weight (without HDD)
≤1.8Kg (3.97lb)
