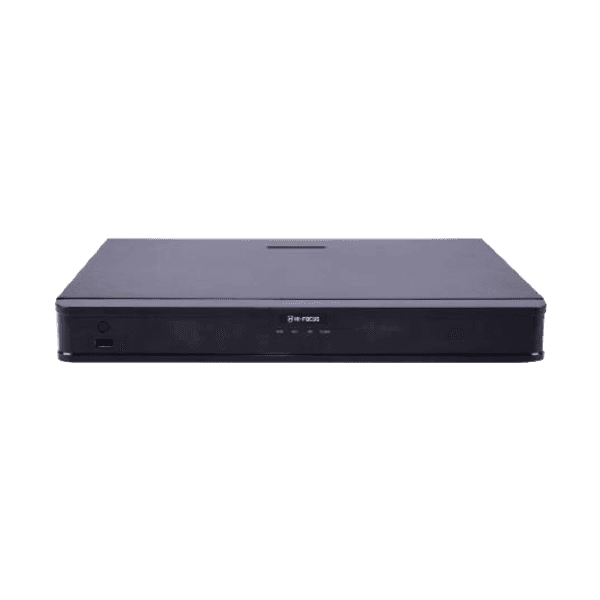

16 CHANNEL 2 SATA NETWORK VIDEO RECORDER
HD-NVR-5216SHP
Product Features
- Support Smart H.265/H.265/H.264 video formats
- 16-Channel input
- Third-party IP cameras supported with ONVIF conformance Profile S, Profile G, Profile T
- Support 1-Ch HDMI, 1-Ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, Up to 10TB for each disk
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when
- the network is disconnected
- Support cloud upgrade
Specifications
- SYSTEM
- VIDEO
- AUDIO
- PLAYBACK
- HARD DISK
- SMART
- EXTERNAL INTERFACE
- GENERAL
SYSTEM
Compression
Smart H.265, H.265, H.264
VIDEO
Network Access Bandwidth
160 Mbps Incoming/ 160 Mbps Outgoing
Recording Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080p/ 960p/720p/D1/2CIF/CIF
IP Video Input
16-ch
HDMI/VGA Output
HDMI:4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Protocols
P2P, UPnP, NTP, DHCP, PPPoE
AUDIO
Audio Output
1-ch, RCA
Two-way Audio Input
1-ch, RCA
PLAYBACK
Simultaneous Playback
16-ch
Live View Display
12MP/8MP/6MP/5MP/4MP/3MP/1080p/ 960p/720p/D1/2CIF/CIF
Corridor Mode Screen
3/4/5/7/9/10/12/16
Remote Users
128
HARD DISK
SATA
2 SATA interfaces
Capacity
Up to 10TB for each disk
SMART
VCA Detection
Intrusion detection, Line Crossing detection, Motion detection
EXTERNAL INTERFACE
Network Interface
1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface
Front panel: 1 x USB2.0 Rear panel: 1 x USB2.0, 1 x USB3.0
Alarm In
4-ch
Alarm Out
1-ch
GENERAL
Power Supply
12V DC Power Consumption: ≤ 20W (without HDD)
Working Environment
-10°C~+ 55°C (+14°F~+131°F) Humidity ≤ 90% RH (non-condensing)
