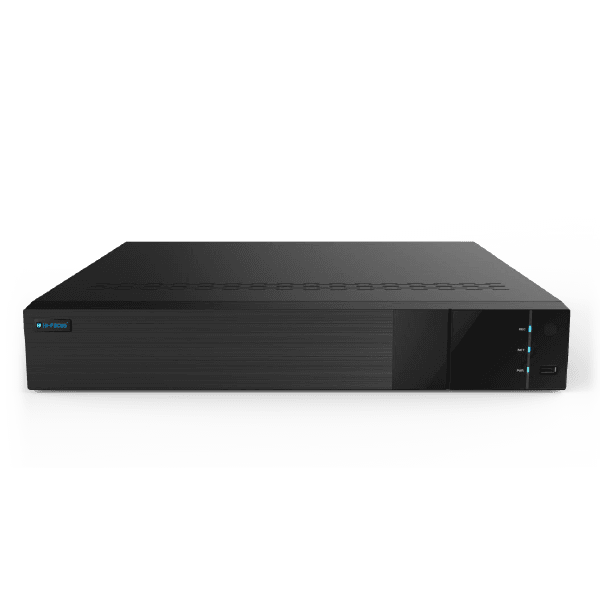

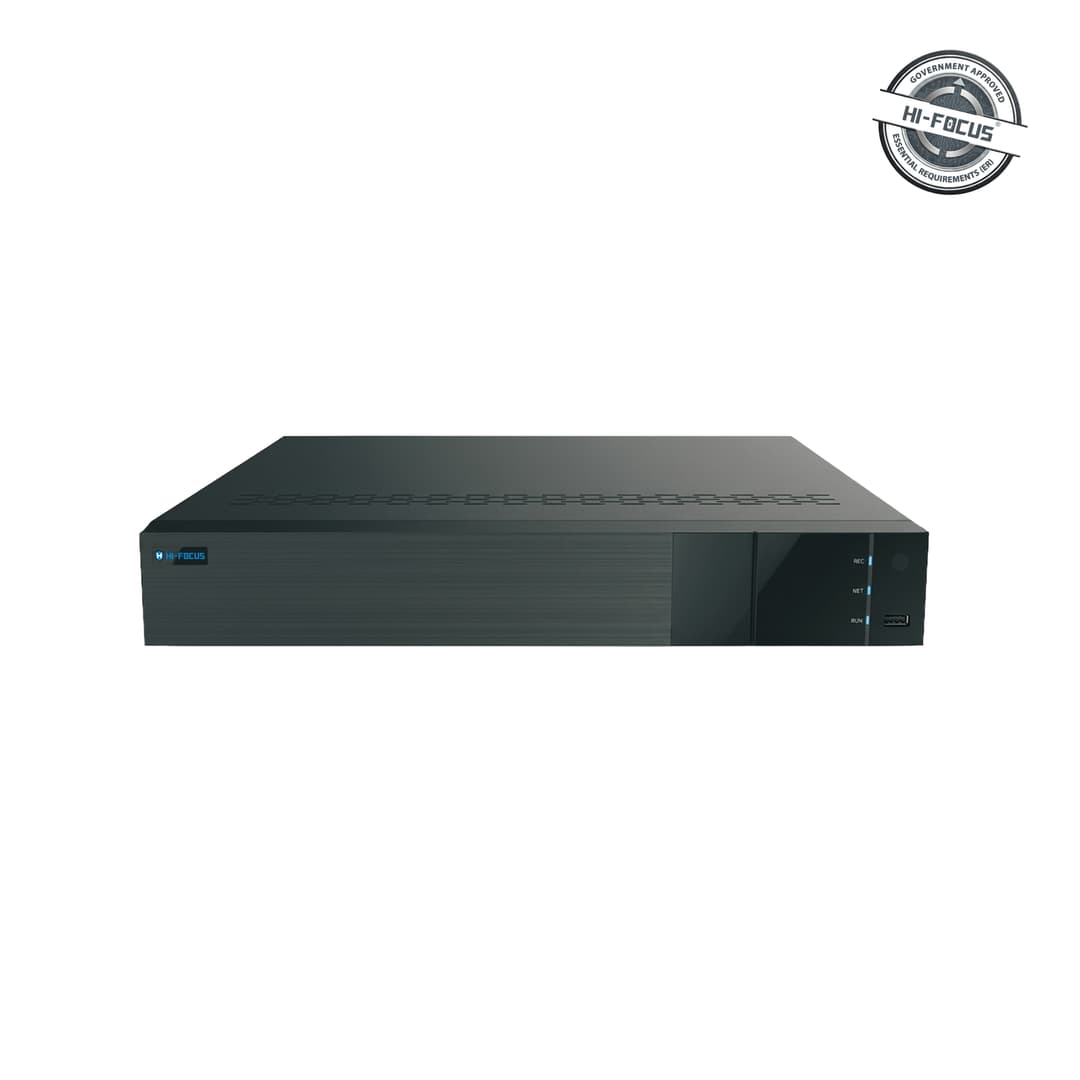

16 CHANNEL 4 SATA NETWORK VIDEO RECORDER
HD-NVR-7480T
Product Features
- Support 80CH 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/ 720P/960H/D1/CIF IP input
- H.265S/H.265+/H.265/H.264 coding
- Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
- Multi-mode recording: manual / timed / motion / sensor/ POS / AI recording
- Playback: 16 CH simultaneous playback
- Search: time slice, time, event, tag, smart and target database search
- Support face detection and comparison
- Support multiple VCA (Video Content Analytics) events, such as region intrusion, tripwire, etc.
- Support OS information overlay on live view and playback
- Support RAID 0, 1, 5, 6, 10
- Express and flexible backup via USB, network and so on
- Preview, record, playback, backup and remote access are supported
- DHCP, DDNS, PPPoE network protocol, etc.
- Compatible with third-party IPCs, such as ONVIF,etc.
- Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QR Code scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
Specifications
- SYSTEM
- VIDEO
- AUDIO
- RECORD
- PLAYBACK
- DECODING CAPABILITY
- ALARM
- FACE
- PERIMETER PROTECTION
- VIDEO METADATA
- OTHER FUNCTIONS
- NETWORK
- MOBILE DEVICE
- STORAGE
- PORT
- GENERAL
SYSTEM
OS
Embedded Linux
VIDEO
IP Video Input
80 CH
Network Bandwidth
Incoming: 512Mbps Outgoing: 512Mbps
Resolution
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/ 960P/720P/960H/D1/CIF
Output
HDMI1: 3840×2160@60, 3840×2160@30, 1920×1080, 1280×1024, 1024×768 HDMI2: 3840×2160@60, 3840×2160@30, 1920×1080, 1280×1024, 1024×768 VGA×1: 1920×1080 1280×1024 1024×768 (VGA and HDMI1 output the same video source)
Multi-screen Display
Main output: 1/4/6/8/9/13/16/25/32/36/64 AUX output: 1/4/6/8/9/13/16 Max: 80 (64+16)
Compression
H.264/H.265/H.265+/H.265S
AUDIO
Network input
80
Local Input
RCA×1 (for two-way talk)
Local Output
RCA×1
HDMI Audio Output
Support
Compression
G.711(U/A)
RECORD
Resolution
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/ 960P/720P/960H/D1/CIF
Frame Rate
N:30fps; P:25fps
PLAYBACK
Simultaneous Playback
16CH
Search
Time slice/time/event/tag/smart search
Function
Play, pause, FF, Rewind, digital zoom, previous frame, next frame, etc.
DECODING CAPABILITY
Live View/
Non-AI mode: 4×16MP@30fps, 9×6MP@30fps, 16×4MP@30fps
Playback
AI mode: 4×12MP@30fps, 9×5MP@30fps, 16×3MP@30fps
ALARM
Mode
Manual, sensor, motion, exception, smart events, etc.
Input
16CH
Output
4CH
Triggering
Record, snapshot, preset, e-mail, etc.
FACE
Face Detection Performance (AI by IPC)
80CH
Face Detection Performance (AI by Device)
4CH(4MP)
Face Match Performance
16CH
Comparison Capability
36 pictures/second
Face Picture Database
32 libraries 10000 face pictures
Face Picture Search
Search by picture is supported
Database Management
Add, modify, delete and search face pictures
Face Picture Adding
Add face pictures through APP, WEB and external import
Face Picture Comparison
Supports successful face recognition alarm and stranger match alarm
Track
Track display on a map
Statistical Graph of Information
Bar graph
Statistical Mode of Information
Statistics by day, week, month, quarter as well as Customized time period
PERIMETER PROTECTION
Human/Vehicle Classification (AI by IPC)
80CH
Human/Vehicle Classification (AI by Device)
8CH (2MP)
VIDEO METADATA
Human/Vehicle Attribute Analysis (AI by IPC)
Yes
OTHER FUNCTIONS
Fisheye
Supports fisheye dewarping via NVR/Web Client/mobile APP
Plate Recognition (AI by IPC)
Yes
NETWORK
Protocol
TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
Interface
2 x RJ45 10/100/1000Mbps
Client Connection
Max. 128 users access
MOBILE DEVICE
OS
iOS, Andriod
STORAGE
HDD Interface
SATA×4 max 10TB per HDD
RAID Type
RAID 0,1,5,6,10
E-SATA Interface
2
PORT
USB
USB 3.0×1, USB 2.0 ×2 (Front: 1)
RS485
Yes (full-duplex)
Remote Controller
Optional
GENERAL
Power
ATX-200W
Consumption
≤ 30W (without HDD)
Dimensions
440 ×490 ×70mm (W×D×H)
Working Environment
-10~50℃; Humidity: 10%~90%
