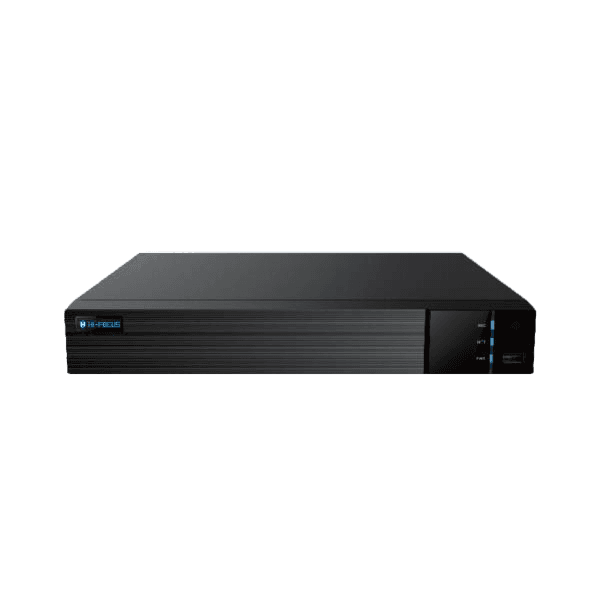

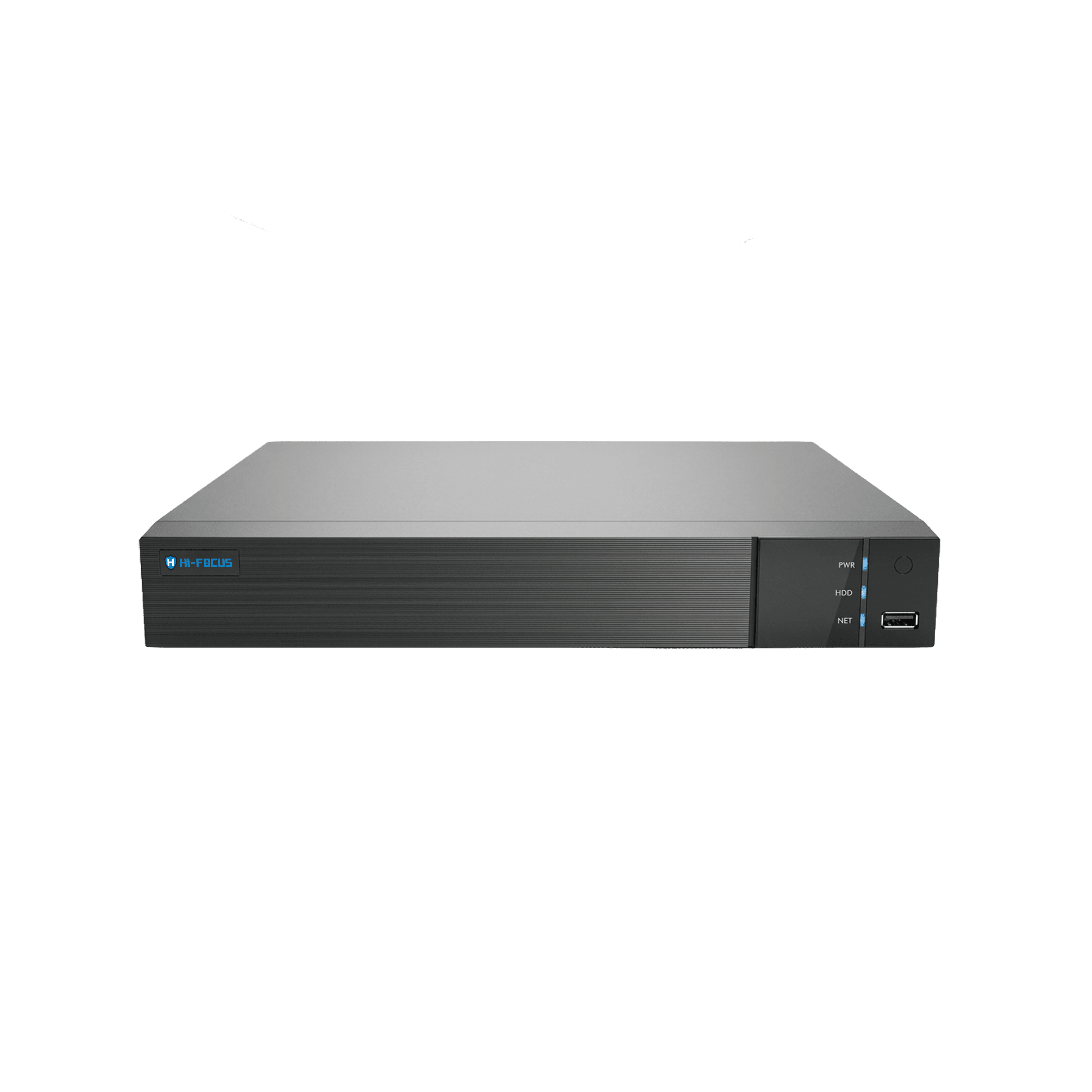

16 CHANNEL NETWORK VIDEO RECORDER
HD-NVR-5116T-B
Product Features
- Support 16CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/DI/CIF IP input
- H.265S/ H.265+/ H.265/ H.264 coding
- Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
- Multi-mode recording: manual / timed / motion / sensor/ POS/ AI recording
- Playback: 16CH simultaneous playback
- Search: time slice, time, event, tag, smart search
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing,
- region intrusion, line crossing, video exception, etc.
- Support POS information overlay on live view and playback
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission
- and remote surveillance with mobile device
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Android OS
Specifications
- SYSTEM
- VIDEO
- AUDIO
- RECORD
- PLAYBACK
- DECODING CAPABILITY
- ALARM
- NETWORK
- FACE
- PERIMETER PROTECTION
- VIDEO METADATA
- OTHER FUNCTIONS
- MOBILE DEVICE
- STORAGE
- BACKUP
- PORT
- GENERAL
SYSTEM
OS
Embedded Linux
VIDEO
Network Input
16CH IPC input
Network Input Resolution
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/ 960H/D1/CIF
Output
HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
160 Mbps
Screen Display Mode
1/4 /6/8/9/13/16
Compression
H.265S / H.265+ / H.265 / H.264
AUDIO
Network input
16 CH IPC audio input
Local Input
RCA × 1 (for two-way audio)
Local Output
RCA × 1
Compression
G.711 (U/A)
RECORD
Resolution
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/ 960H/D1/CIF
Frame Rate
NTSC: 30fps; PAL: 25fps
PLAYBACK
Simultaneous Playback
Max 16CH
Search
Time slice/time/event/tag search
Smart Search
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
Function
Play, pause, FF, FB, digital zoom, etc
DECODING CAPABILITY
Live View/Playback
1×8MP@30fps; 6×1080P@30fps
ALARM
Mode
Manual, sensor, motion, exception, smart events
Input
Support IPC alarm input
Output
Support IPC alarm output
Triggering
Record, snap, preset, e-mail, etc.
NETWORK
Interface
RJ 45 1000Mbps × 1
Protocol
TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF
Client Connection
Max. 64 users access
FACE
Face Detection Performance (AI by IPC)
16 CH
Face Detection Performance (AI by Device)
2 CH (2MP)
Face Match Performance
No
Statistical Graph of Information
Bar graph
Statistical Mode of Information
Statistics by day, week, month, quarter as well as Customized time period
PERIMETER PROTECTION
Human/Vehicle Classification (AI by IPC)
16 CH
Human/Vehicle Classification (AI by Device)
2 CH(2MP)
VIDEO METADATA
Human/Vehicle Attribute Analysis (AI by IPC)
Yes
OTHER FUNCTIONS
Fisheye
Supports fisheye dewarping via Web Client/mobile APP
Plate Recognition (AI by IPC)
Yes
MOBILE DEVICE
OS
iOS, Andriod
STORAGE
HDD Interface
SATA3.0 × 1, max 10TB
BACKUP
Local Backup
U disk, USB mobile HDD
Network Backup
Yes
PORT
USB
USB 2.0 × 2
Remote Controller
Optional
GENERAL
Power Supply
DC 12V/1.5A
Consumption
≤ 10W (without HDD)
Dimensions (mm)
300 × 249 × 45 (W × D × H)
Working Environment
-10 ~ 50°C, 10% ~ 90% humidity
