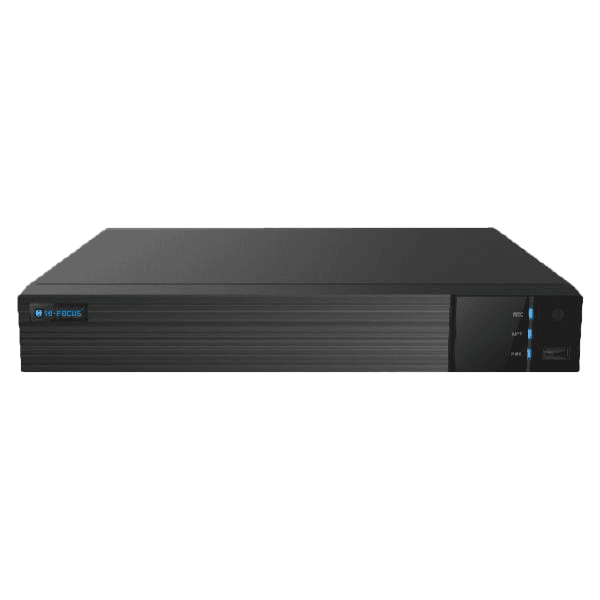

32 CHANNEL 2 SATA NVR
HD-NVR-7232T-
Product Features
- Support 32CH 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/
- 960H/D1/CIF IPC Input
- H.265S/H.265+/H.265/H.264
- Intuitive and user-friendly Graphic User Interface (GUI), Windows style operation by mouse
- Multi-type recording: manual / timed / motion / sensor / POS / AI recording
- Playback: 16 CH simultaneous playback
- Search: time slice, time, event, tag and smart search
- Support face detection and comparison
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing,
- region intrusion, tripwire, video exception, etc.
- Support license plate recognition
- Support POS information overlay on live view and playback
- Pentaplex: preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Compatible with third-party IPCs, such as ONVIF etc.
- Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
Specifications
- SYSTEM
- VIDEO
- AUDIO
- RECORD
- PLAYBACK
- DECODING CAPABILITY
- MULTI-SCREEN DISPLAY MODE
- ALARM
- FACE
- VIDEO STRUCTURE ANALYSIS
- OTHER FUNCTIONS
- NETWORK
- MOBILE DEVICE
- STORAGE
- BACKUP
- EXTERNAL INTERFACE
- GENERAL
SYSTEM
OS
Embedded Linux
VIDEO
Compression
H.265S/H.265+/H.265/H.264
IP Video Input
32CH IPC input
Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 1024/960P/ 720P/960H/D1/CIF
Network Bandwidth
Incoming: 320 Mbps Outgoing: 320 Mbps
Output
HDMI1: 3840×2160/1920×1080/1280×1024/1024 x 768 HDMI2: 1920×1080/1280×1024/1024×768 VGA 1: 1920×1080/1280×1024/1024×768 VGA and HDMI1 output the same video source
AUDIO
Network input
32 CH IPC audio input
2-way Audio
RCA × 1
Local Input
RCA × 1
Compression
G.711 (U/A)
RECORD
Record Stream
Dual stream recording
Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/ 720P/960H/D1/CIF
Frame Rate
NTSC: 30fps; PAL: 25fps
PLAYBACK
Simultaneous Playback
Max 16CH
Search
Time slice/time/event/tag/smart search
Smart Search
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
Function
Play, pause, FF, FB, digital zoom, etc
DECODING CAPABILITY
Live View/Playback
1CH 12MP/4CH 1080P
MULTI-SCREEN DISPLAY MODE
Mode
Dual output mode (default mode): supports HDMI2 output, but doesn’t support AI by device AI mode: HDMI2 output and 12MP video input (live view/playback) Are unavailable, but 8MP video input supports
Dual Output Mode
32CH (HDMI1) +4CH (HDMI2)
AI Mode
24CH (HDMI1)
ALARM
Mode
Manual, sensor, motion, exception, smart events, etc.
Input
8 CH local alarm input
Output
4 CH
Triggering
Record, snap, preset, e-mail, etc.
FACE
Face Detection Performance (AI by IPC)
32CH
Face Detection Performance Max 16CH Time slice/time/event/tag/smart search Highlighted color to display the camera record in a certain period of time, different colors refers to different record events Play, pause, FF, FB, digital zoom, etc 1CH 12MP/4CH 1080P Dual output mode (default mode): supports HDMI2 output, but doesn’t support AI by device AI mode: HDMI2 output and 12MP video input (live view/playback) Are unavailable, but 8MP video input supports 32CH (HDMI1) +4CH (HDMI2) 24CH (HDMI1) Manual, sensor, motion, exception, smart events, etc. 8 CH local alarm input 4 CH Record, snap, preset, e-mail, etc. 32CH (AI by Device)
2 CH (2MP)
Face Match Performance
6 CH
Comparison Capability
18 pictures / second
Face Picture Database
32 libraries 10000 face pictures
Face Picture Search
Search by picture is supported
Database Management
Add, modify, delete and search face pictures
Face Picture Adding
Add face pictures through APP, WEB and external import
Face Picture Comparison
Support allow list, block list and stranger match alarm
Track
Track display on a map
Statistical Graph of Information
Bar graph
Statistical Mode of Information
Statistics by day, week, month, quarter as well as Customized time period
VIDEO STRUCTURE ANALYSIS
Human/Vehicle Classification
Yes
OTHER FUNCTIONS
Fisheye
Supports fisheye dewarping via Web Client/mobile APP
Plate Recognition
Yes
NETWORK
Interface
2 x RJ45 1000Mbps
Protocol
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc.
Client Connection
Max. 20 users access
MOBILE DEVICE
OS
iOS, Andriod
STORAGE
HDD Interface
SATA × 2, max 10TB for each HDD
BACKUP
Local Backup
U disk, USB mobile HDD
Network Backup
Yes
EXTERNAL INTERFACE
RS485
Yes (full-duplex), connect to PTZ or keyboard
USB
USB 3.0 × 1; USB 2.0 × 2
Remote Controller
Optional
GENERAL
Power Supply
DC12V/4A
Consumption
≤ 20W (without HDD)
Dimensions (mm)
380 × 268 × 45 (W × D × H)
Working Environment
-10 ~ 50 ℃,10% ~ 90% humidity
