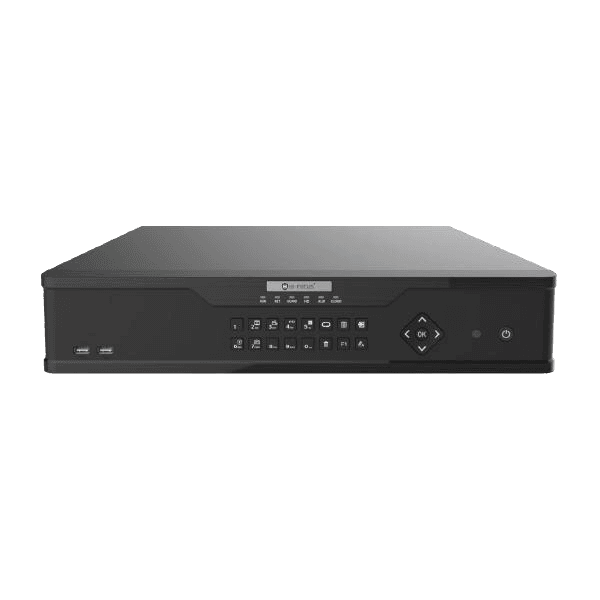

32 CHANNEL 4 SATA NETWORK VIDEO RECORDER
HD-NVR-5432EHP
Product Features
- Support SmartH.265/H.265/H.264 video formats
- 32-channel input
- Supports mainstream cameras of ONVIF conformance
- (Profile S, Profile G, Profile T ) and RTSP protocols
- Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
- HDMI1, HDMI2, VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Support RAID 0,1,5
- 4 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when
- the network is disconnected
- Support cloud upgrade
Specifications
- SYSTEM
- VIDEO
- AUDIO
- PLAYBACK
- HARD DISK
- SMART
- GENERAL ALARM
- EXTERNAL INTERFACE
- GENERAL
SYSTEM
Compression
Smart H265/H.265/H.264 Standard
VIDEO
Network Access Bandwidth
256 Mbps Incoming / 256Mbps Outgoing
Recording Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/ 720p/D1/2CIF/CIF
IP Video Input
32-ch
HDMI/VGA Output
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
AUDIO
Audio Output
1-ch, RCA
Audio Compression
G.711A, G.711U
Two-way Audio Input
1-ch, RCA
PLAYBACK
Simultaneous Playback
16-ch
Live View Display
1/4/6/8/9/16/25/36
Corridor Mode Screen
3/4/5/7/9/10/12/16/32
Remote Users
128
HARD DISK
SATA
4 SATA interfaces
Capacity
Up to 10TB for each HDD
Disk Group
Support
eSATA
1 eSATA interface
Array Type
RAID 0, 1, 5
SMART
VCA Detection by Camera
Intrusion Detection, Line Crossing Detection, Camera Tampering
GENERAL ALARM
General Alarm
Motion Detection, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
EXTERNAL INTERFACE
Network Interface
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface
Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0
RS232
1
RS485
1
Alarm In
16-ch
Alarm Out
4-ch
GENERAL
Power Supply
100~240V AC Power Consumption: ≤ 25W (without HDD)
Working Environment
-10°C~+ 55°C (+14°F~+131°F) Humidity ≤ 90% RH (non-condensing)
