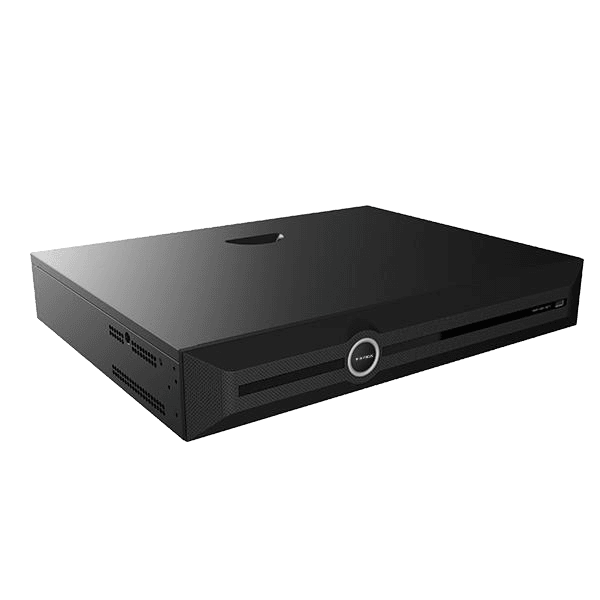

40 CHANNEL NVR
HD-NVR-5232E
Product Features
- Up to 40-ch IP camera accesses
- Incoming/Outgoing bandwidth: 400Mbps/40Mbps
- H.265+, H.265, S+264, H.264 video formats
- Max. decoding capability: 16MP(30fps)×2 or 1080P(30fps)×16
- 16-ch synchronous playback
- Up to 10 TB capacity for each HDD
- Independent HDMI and VGA outputs
- HDMI output at up to 4K resolution
- 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
- H.265+ compression effectively reduces the storage space by up to 75%
- Support cloud upgrade
Specifications
- Video And Audio
- COMPRESSION
- NETWORK
- Record Playback
- Alarm
- Intelligent Analytics
- Face Detection & Recognition
- Storage
- External Port
- GENERAL
Video And Audio
Access Channel
40
Incoming Bandwidth
400Mbps
Outgoing Bandwidth
400Mbps
Resolution
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/ VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Decoding Capability
16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6, 4MP(30fps)×8, 3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×32, 4CIF(30fps)×40
Playback Decoding Capability
16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6, 4MP(30fps)×8, 3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×16
Third-party Camera Access
ONVIF; RTSP
HDMI Output
HDMI: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz), 2560×1440(30Hz/60Hz), 2560×1600(60Hz), (4K)3840×2160(30Hz/60Hz)
VGA Output
VGA: 800×600(60Hz), 1024×768(60Hz), 1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), 1920×1080(50Hz/60Hz)
Multi-screen Display
Independent Output: VGA: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40 HDMI1: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40
Audio Input
1-ch, 3.5mm
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, 3.5mm, using the audio input
COMPRESSION
Video
H.265+; H.265; H.264+; H.264
Audio
G711A; G711U; AAC; ADPCM_DIV4
Stream Type
Video; Video & Audio
NETWORK
Network Protocol
Mobile Phone Access System Compatibility Web Record Playback Multi-channel Playback Record Mode Storage Method Backup Playback Function Dual Stream Record Alarm General Alarm H.265+; H.265; H.264+; H.264 G711A; G711U; AAC; ADPCM_DIV4 Video; Video & Audio ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS;ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1; SRTP; SSH; SSL; TLSv1.2; TCP/IP; UDP; Unicast; UPnP
Mobile Phone Access
Android; iOS; P2P
System Compatibility
ONVIF(Profile S/T/G); RTSP; CGI; SDK
Web
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Record Playback
Multi-channel Playback
16
Record Mode
Manual Recording; Alarm Recording; Schedule Recording
Storage Method
Local HDD
Backup
USB storage device, Network
Playback Function
Play/Pause/Stop/Slow/Speed/Backwards 30s/ Forwards 30s/FullScreen/Backup (Video Editing) /Step/ Digital Zoom
Dual Stream Record
Yes
Alarm
General Alarm
Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR); Manual Alarm
Exceptions Alarm
Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; Hot-spare Exception; Voltage Alarm(IPC); RTC Failure
Intelligent Analytics
AI by Camera
Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Loiter; Running; Parking; Heatmap; Video Abnormal; Audio Abnormal; License Plate Recognition; On Duty Detection; Crowd Detection; Parking Guard; Safety Helmet Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Motion; Face Recognition; Human/Vehicle Classification
VCA Search
Heatmap; Early-warning Search; Behavior Search; License Plate Search; Safety Helmet Search; Thermographic Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search
Face Detection & Recognition
Face Attributes
Gender; Age; Glasses; Face Mask; Body Temp
Face Picture Library
Up to 300 face libraries, Up to 100000 base images
Face Picture Comparison
Face Picture Comparison (Cooperate with facial recognition IPC)
Storage
HDD Capacity
Up to 10 TB capacity for each HDD
HDD Disk Group
2 Disk Group
External Port
USB
1×USB2.0; 1×USB3.0
HDMI
1×HDMI (supports up to 4K resolution output)
VGA
1×VGA
Network Interface
2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
SATA
2×SATA interface
RS232
1×RS232
RS485
1×RS485
Alarm I/O
16-ch, TTL inputs, 3mA, 3.3VDC; 4-ch, relay outputs, 1A, 24VDC
GENERAL
Power Supply
DC12V 3.3A
Power Consumption
<15W(HDD not included, idling)
Net Weight
2.25 kg
Gross Weight
3.85Kg
Boundary Dimensions
440(L)277(W)47.5(H)mm
Package Dimensions
510(L)150(W)385(H)mm
Operating Temperature
-10℃~+55℃ (+14℉~+131℉)
Operating Humidity
10%~90%RH (non-condensing)
Storage Temperature
-20℃~+60℃ (-4℉~+140℉)
