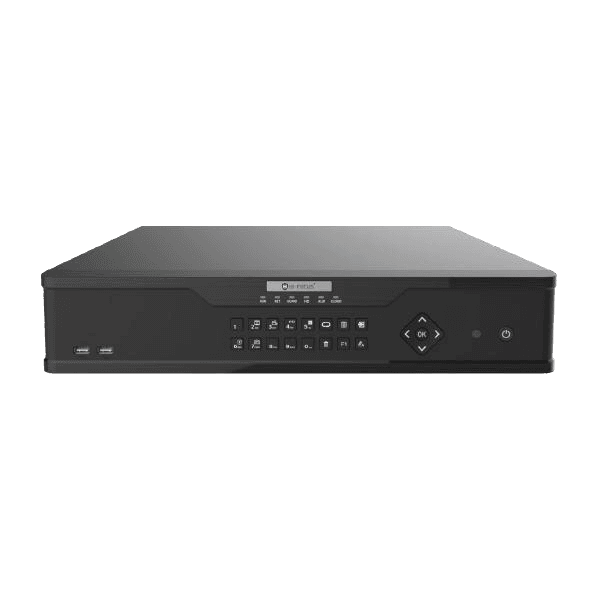

64 CHANNEL 8 SATA NETWORK VIDEO RECORDER

HD-NVR-5864R

Product Features

Support Smart H.265/H.265/H.264 video formats
64-channel input
Supports mainstream cameras of ONVIF conformance
(Profile S, Profile G, Profile T ) and RTSP protocols
Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up
to 4K (3840x2160) resolution
HDMI1, HDMI2, VGA independent outputs provided
Up to 12 Megapixels resolution recording
Support RAID 0, 1, 5,6,10
8 SATA HDDs, Up to 12TB for each HDD
Various fisheye dewarping modes for live view and playback for both web interface and GUI
Support N+1 Hot spare
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Specifications

SYSTEM
VIDEO
AUDIO
PLAYBACK
HARD DISK
SMART
GENERAL ALARM
EXTERNAL INTERFACE
GENERAL

SYSTEM

Compression

Smart H.265/H.265/H.264 Standard

VIDEO

Network Access Bandwidth

320 Mbps Incoming/ 320 Mbps Outgoing

Recording Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/ 720p/D1/2CIF/CIF

IP Video Input

64-ch

HDMI/VGA Output

VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS

AUDIO

Audio Output

1-ch, RCA

Audio Compression

G.711A, G.711U

Two-way Audio Input

1-ch, RCA

PLAYBACK

Simultaneous Playback

16-ch

Live View Display

VGA: 1/4/6/8/9/16/25/36 HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64

Corridor Mode Screen

3/4/5/7/9/10/12/16/32

Remote Users

128

HARD DISK

SATA

8 SATA interfaces

Capacity

up to 12TB for each HDD

Disk Group

Support

eSATA

1 eSATA interface

Array Type

RAID 0, 1, 5, 6, 10

SMART

VCA Detection by Camera

Intrusion Detection, Cross Line Detection, , Scene Change Detection, Object Left Behind, Object Removed, Camera Tampering, Face detection

People Counting

People Counting, Crowd Density Monitoring

GENERAL ALARM

General Alarm

Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
