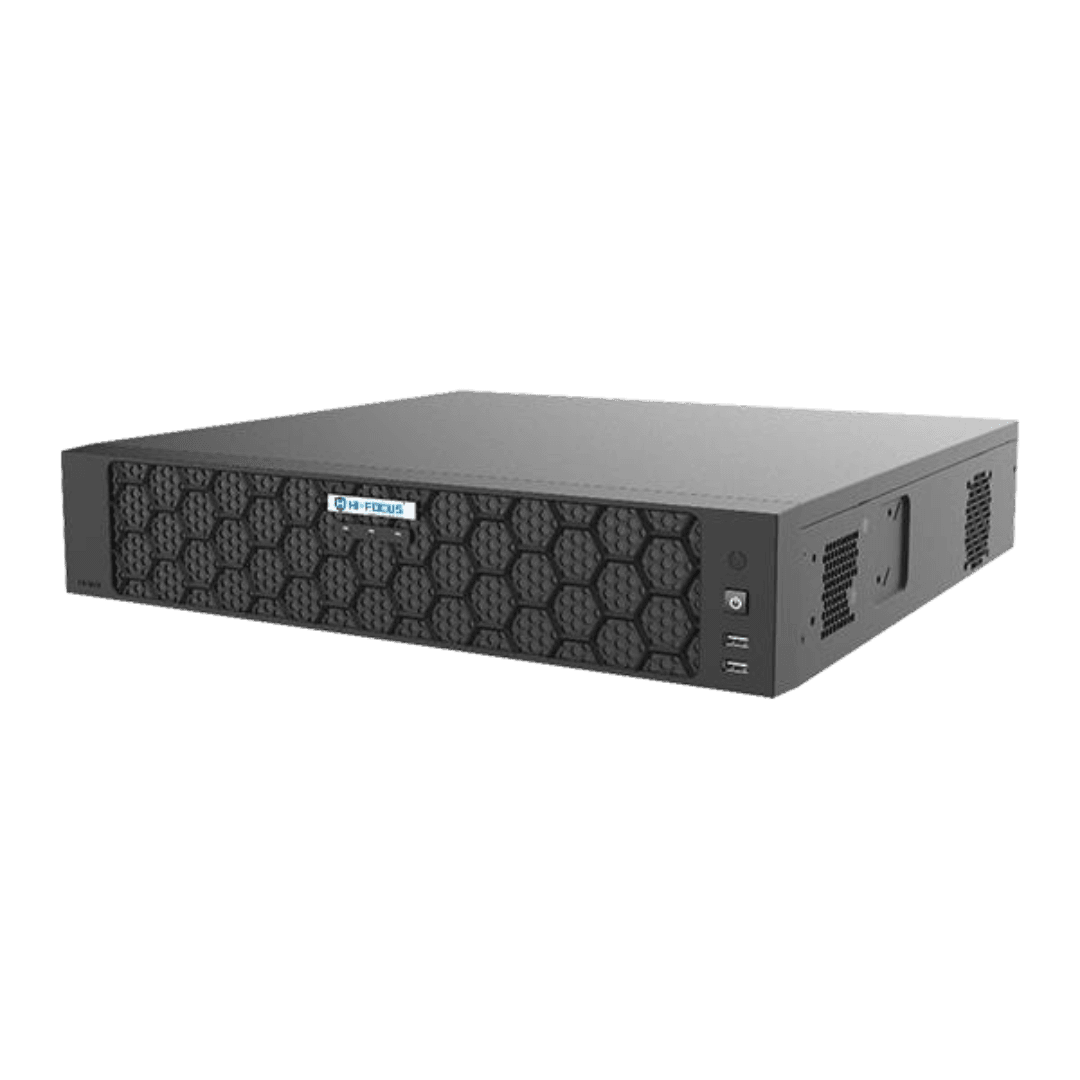

64 CHANNEL 8 SATA NETWORK VIDEO RECORDER
HD-NVR-7864Q
Product Features
- Support Smart H.265/H.265/H.264 video formats
- 64-channel input
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- 8 SATA HDD, up to 12TB for each HDD
- Raid 0,1,5,6,10
- Support N+1 Hot spare
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Specifications
- VIDEO/AUDIO INPUT
- NETWORK
- SNAPSHOT
- DECODING
- HARD DISK
- SMART
- GENERAL ALARM
- EXTERNAL INTERFACE
- GENERAL
VIDEO/AUDIO INPUT
HDMI/VGA Output
HDMI: 4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Audio Output
1-ch, RCA
Audio Compression
G.711A, G.711U
Recording Resolution
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/ 960p/720p/ D1/2CIF/CIF
Synchronous Playback
16-ch
Liveview display
Simultaneous Output: VGA: 1/4/6/8/9/16/25/36/64 | HDMI: 1/4/6/8/9/16/25/36/64 Independent Output: VGA: 1/4/6/8/9/16/25/32 | HDMI: 1/4/6/8/9/16/25/32
Corridor Mode Screen
3/4/5/7/9/10/12/16/32
NETWORK
Incoming Bandwidth
320Mbps
Outgoing Bandwidth
160Mbps
Remote Users
128
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
SNAPSHOT
FTP/Schedule/Event Snapshot
4-ch snapshot, up to D1 resolution
DECODING
Decoding format
Smart H.265/H.265/H.264
Liveview/Playback
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/ 720p/D1/2CIF/CIF
Capability
Smart H.265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1, H.264: 2 x 16MP (4800x2688) @30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 64 x D1
HARD DISK
SATA
8 SATA interface
Capacity
Up to 12 TB for each disk
Raid
Raid 0,1,5,6,10
Disk Group
Support
SMART
VCA Detection by Camera
Intrusion Detection, Line Crossing Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
VCA Search
Behavior Search, Vehicle Search
People counting
People Flow Counting, Crowd Density Monitoring
GENERAL ALARM
General Alarm
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
EXTERNAL INTERFACE
Network Interface
2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface
Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 1 x USB3.0
RS485
1
Alarm In
16-ch
Alarm Out
4-ch
GENERAL
Power Supply
100~240V AC Power Consumption: ≤ 32W (without HDD)
Working Environment
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)
442mm × 426mm × 89mm (17.4" × 16.8" × 3.5")
Weight (without HDD)
≤ 4Kg (8.80lb)
